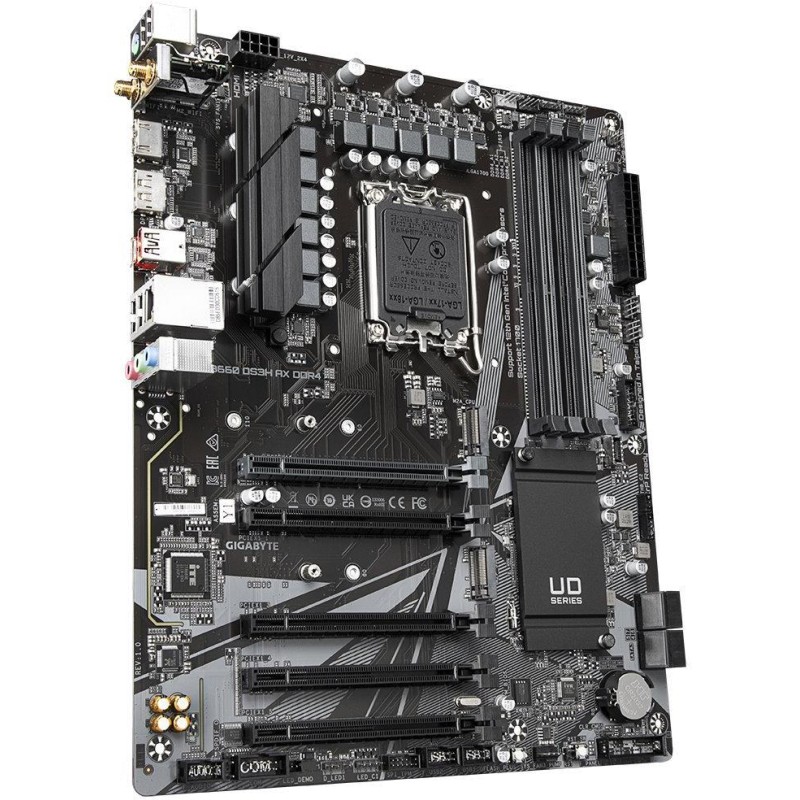

GIGABYTE B660 DS3H AX DDR4

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Supports 12th generation Intel Core/ Pentium/ Celeron processors (LGA1700 socket)

Chipset

Intel B660

Memory

4x DDR4 memory slots, support up to 128 GB

Support DDR4 5333 (OC) / 5133 (OC) / 5000 (OC) / 4933 (OC) / 4800 (OC) / 4700 (OC) / 4600 (OC) / 4500 (OC) / 4400 (OC) / 4300 (OC) / 4266 (OC) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3800 (OC) / 3733 (OC) / 3666 (OC) / 3600 (OC) / 3466 (OC) / 3400 (OC) / 3333 (OC) / 3300 (OC) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MHz

Dual-channel memory architecture

Support non-ECC, unbuffered (1Rx8/2Rx8/1Rx16)

ECC support (non-ECC mode), unbuffered (1Rx8/2Rx8)

Intel Extreme Memory Profile (XMP) support

Slots

1× PCIe 4.0 x16 slot

4× PCIe 3.0 x16 slot (supports x1 mode)

Graphic arts

1× HDMI port, supporting max. resolution 4096 × 2160 at 60 Hz

1× DisplayPort port, supporting max. resolution 4096 × 2304 at 60 Hz

Storage

Intel CPU

1× M.2 slot, M Key, for 2260/2280/22110 type units (PCIe 4.0 x4/x2 mode)

Intel B660 chipset

1× M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x4/x2 mode)

4× SATA 6Gb/s ports

RAID 0, RAID 1, RAID 5 and RAID 10 support

Intel Optane technology support

USB

1× USB-C 3.2 Gen2x2 port on the back panel

1× USB 3.2 Gen2 (USB 3.1) port on the back panel

1× USB-C 3.2 Gen1 (USB 3.0) port available via internal USB connector

2× USB 3.2 Gen1 (USB 3.0) ports available via internal USB connector

8× USB 2.0 ports (4 ports on the back panel, 4 ports available via internal USB connectors)

Audio

Realtek Audio Codec

2/4/5.1/7.1 channel High Definition Audio

S/PDIF output support

HIND

1× Realtek Gigabit LAN controller

WLAN/Bluetooth

Intel Wi-Fi 6E RZ608 (MT7921K)

Wi-Fi 802.11a/b/g/n/ac/ax

Dual Band (2.4 GHz, 5 GHz, 6 GHz)

Data transfer speed up to 1.2 Gbps

Bluetooth 5.2

Internal connectors

1× 24pin ATX main power connector

1× 8pin ATX 12V power connector

1× CPU fan connector

1× CPU water cooling fan connector

3× system fan connector

1× system fan/water cooling pump connector

2× addressable LED strip connector

2× RGB LED strip connector

2× M.2 slot, M Key

4× SATA 6Gb/s connector

1× front panel connector

1× front panel audio connector

1× USB-C 3.2 Gen1 connector

1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 ports)

2× USB 2.0 connector (supports 4× USB 2.0 port)

1× TPM connector (only supports GC-TPM2.0 SPI and GC-TPM2.0 SPI 2.0 modules)

1× serial port connector

2x Thunderbolt AIC connector

1× Q-Flash Plus button

1× Reset button

1× Reset jumper

1× Clear CMOS jumper

Rear panel ports
2× Wi-Fi antenna connector

1× PS/2 combo port for keyboard and mouse

1× USB-C 3.2 Gen2x2

1× USB 3.2 Gen2 (USB 3.1 Gen2)

4× USB 2.0

1× DisplayPort

1× HDMI

1× RJ-45

3× audio jacks

Dimensions

30.5 × 24.4 cm

ATX format
