DEEPCOOL case CH560 / MidT / 3×140 and 120mm ARGB fan / USB 3.0 / tempered glass / black

105,83

SKU: CabinetsDEEPCOOL-CASE-CH560--23452 Category: Tag:

Description

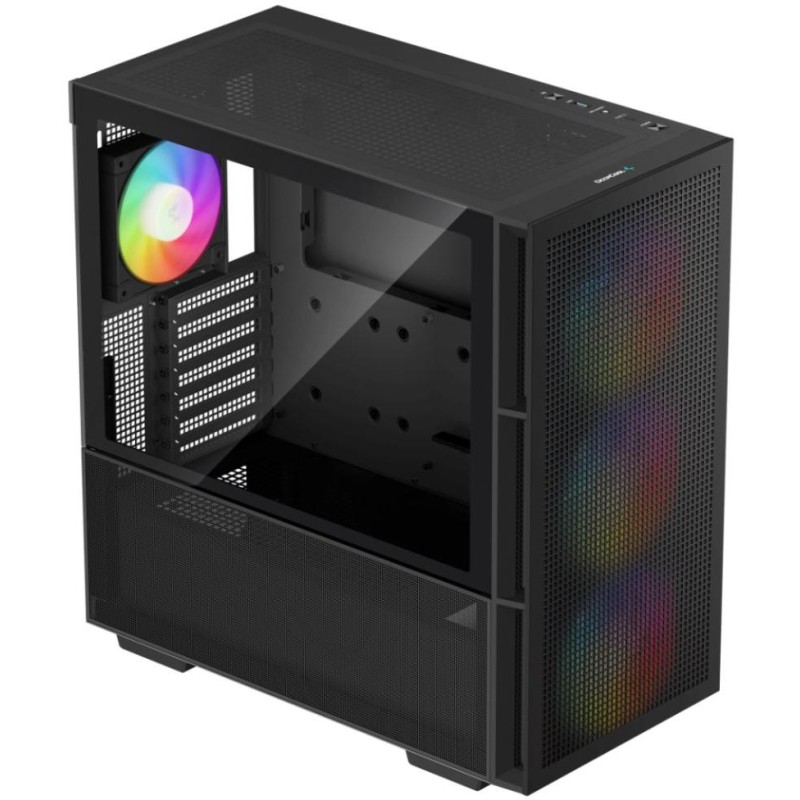

DEEPCOOL CH560

The Middle Tower case with a transparent side panel offers two 2.5″ bays for SSDs and two 3.5″ bays for hard drives. The top panel has one USB 3.0 port , one USB-C port, and a combined headphone and microphone port. The case is equipped with one 120 mm fan on the rear and three 140 mm fans on the front. All supplied fans also have ARGB backlighting . The ingenious solution allows for the convenient placement of a water cooling exchanger up to 360 mm long on the front or top. The case has enough space for a CPU cooler up to 175 mm high and a graphics card with a length of 380 mm. The case is supplied without a power supply . A set of dust filters is also included.

BASIC SPECIFICATIONS

Case design: Middle Tower

Internal bays: 2× 2.5″, 2× 3.5″

Motherboard compatibility: E-ATX, ATX, Micro ATX, Mini-ITX

Source: no source

Top panel connectors: 1× USB 3.0, 1× USB-C, 1× headphone/microphone combo port

Dimensions: 471 × 458 × 230 mm

Color: black

Additional information

Brand

DEEPCOOL

Model

DEEPCOOL

Material

Plastic, metal, glass

Color

Black

Warranty period for registration number (months)

24

Manufacturer

DEEPCOOL

Warranty length (months)

24

Processed

Approved

Weight (kg)

7.5

Dimensions

471 × 458 × 230mm

Memory card reader

No

Dropshipment - Alza

Yes

USB Type C (number)

1

USB 3.0 (number)

1

Analog audio input/output (number)

1

Backlight color

RGB

PC case design

Middle tower

Installed rear fan size

1× 120mm

Supported source format

ATX

Number of fans installed

4

Supported radiator size from the front

360

Supported radiator size on top

360

3.5" internal bay

2

2.5" internal bay

2

Transparent sidewall

Yes

Source position

Down

Number of fan slots

9

Max. CPU heatsink height (mm)

175

Motherboard format

E-ATX

Source

No

Max. graphics card length (mm)

380

Installed front fan size

3× 140mm

Supported radiator size front/rear

360

Supported radiator size top/bottom

360
