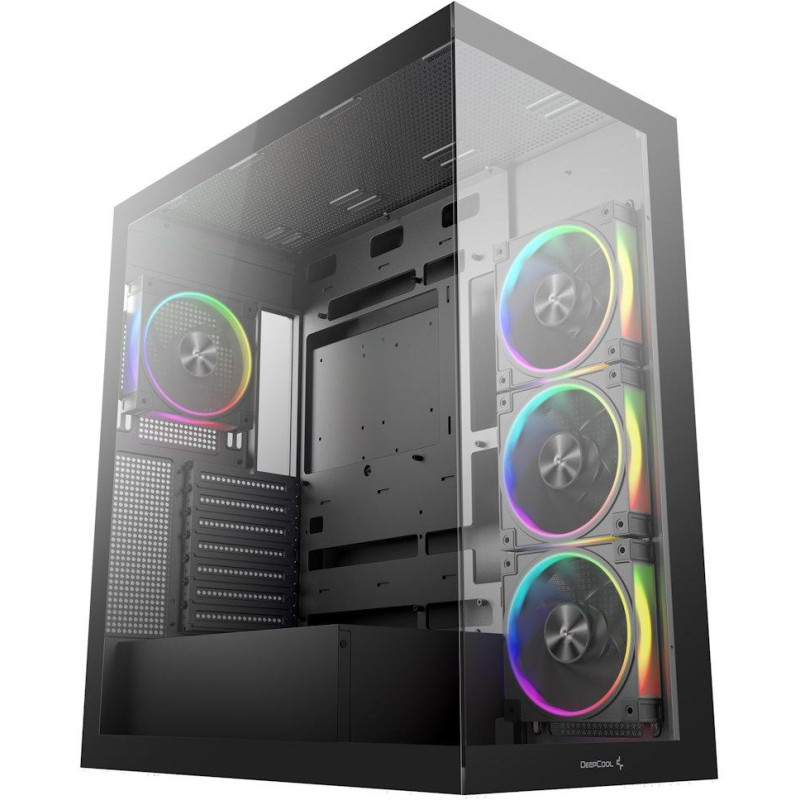

DEEPCOOL case CG580 4F V2 / ATX / 4x120mm ARGB fans / 2xUSB 3.0 / panoramic / tempered glass / black

Premium gaming case with a panoramic 270° view and advanced ARGB lighting.

The CG580 4F V2 PC case is a unique solution for enthusiasts who want to show off their hardware. With an A-pillar-less design and a combination of glass panels on the front and sides, you get a panoramic 270° view of all components. The case is pre-installed with four PWM ARGB fans – three reverse-flow fans on the side and one standard fan on the rear, ensuring optimal cooling and visual impact.

The specially designed motherboard tray supports rear-mounted motherboards from ASUS and MSI, contributing to a cleaner and sleeker look. With support for radiators up to 360mm and the ability to install various fan configurations, the CG580 4F V2 offers excellent cooling options for demanding gaming builds.

Innovative cooling and visual experience
The CG580 4F V2 features a pre-installed cooling system with three reverse-flow PWM ARGB fans on the side and one standard PWM ARGB fan on the rear. This configuration creates optimized airflow that enhances thermal efficiency. Coordinated ARGB lighting on the fan bezels and rings supports synchronization with the motherboard for a unified and dynamic visual effect.

LED lighting control
A short press of the LED button cycles through 16 preset lighting effects. To activate synchronization with the motherboard, simply long press the LED button (approximately 2-3 seconds) until you see a white flash. In synchronization mode, the lighting effects are controlled by the motherboard. To return to controlling the lighting via the chassis control board, simply long press the LED button again.

Exceptional cooling capacity
The case supports a wide range of radiator and fan configurations. Radiators can be installed on the top 120/140/240/280/360 mm, 120/240/360 mm on the side and 120/140 mm on the rear. For fans, there are positions on the top (3× 120 mm or 2× 140 mm), on the side (3× 120 mm), on the rear (1× 120 mm or 1× 140 mm), on the bottom (choice between 3.5″ HDD or 120 mm fan) and in the power supply cover (2× 120 mm).

BASIC SPECIFICATIONS

Dimensions: 101 × 437 × 235 mm

Weight: 8.8 kg

Materials: ABS, SGCC, tempered glass

Motherboard support: Mini-ITX, Micro ATX, ATX (including models with rear connectors)

Front I/O ports: 2× USB 3.0, 1× USB-C Gen2, 1× audio port

Drive bays: 2× 3.5″, 2× 2.5″

Expansion slots: 7

Pre-installed fans: 3× 120 mm PWM ARGB with reverse flow (side), 1× 120 mm PWM ARGB (rear)

Radiator support: top 120/140/240/280/360 mm, side 120/240/360 mm, rear 120/140 mm

Maximum CPU cooler height: 176 mm

Maximum graphics card length: 410 mm (limited to 262 mm when installing a 360mm radiator and fan on the side)

Power supply type: ATX PS2 (maximum length 210 mm)

Color: black
