ASUS TUF GAMING H770-PRO WIFI / Intel H770 / LGA1700 / 4x DDR5 / 4x M.2 / DP / HDMI / USB-C / WIFI / ATX

Description

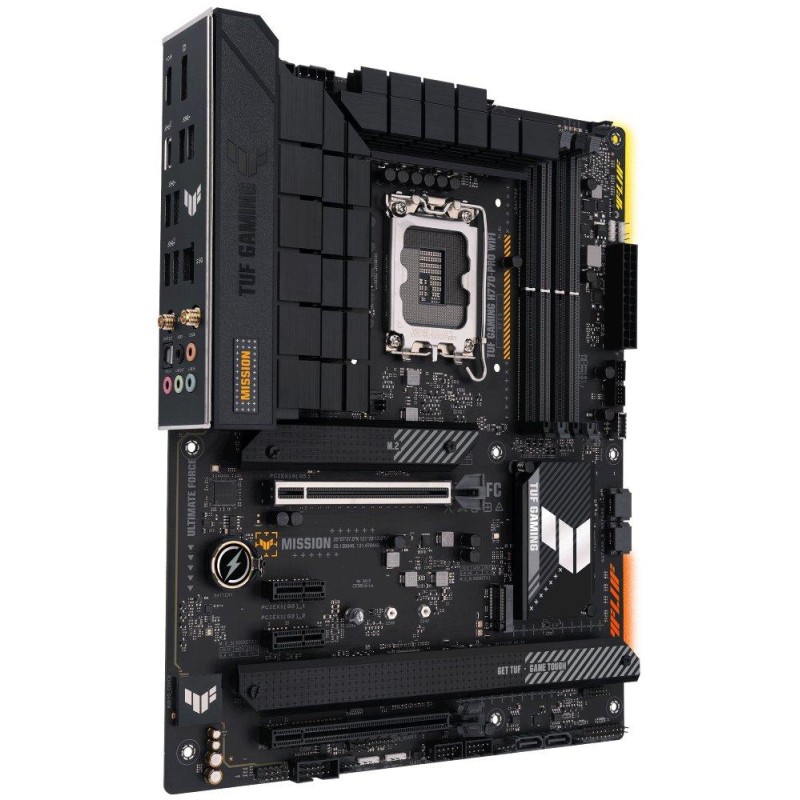

ASUS TUF GAMING H770-PRO WIFI

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for 12th and 13th generation Intel Core/ Pentium/ Celeron processors (LGA1700 socket)

Chipset

Intel H770

Memory

4x DDR5 memory slots, support up to 192 GB

Support DDR5 7200 (OC)/ 7000 (OC)/ 6800 (OC)/ 6600 (OC)/ 6400 (OC)/ 6200 (OC)/ 6000 (OC)/ 5800 (OC)/ 5600/ 5400/ 5200/ 5000/ 4800 MHz

Dual-channel memory architecture

Support non-ECC, unbuffered memory (supports On-Die ECC function)

Intel Extreme Memory Profile (XMP) support

OptiMem II support

Slots

Intel CPU

1x PCIe 5.0 x16 slot

Intel H770 chipset

1x PCIe 4.0 x16 slot (supports x4 mode)

2x PCIe 3.0 x1 slots

Graphic arts

1x HDMI port, supporting max. resolution 4K at 60 Hz

1x DisplayPort port, supporting max. resolution 4K at 60 Hz

Storage

Intel CPU

1x M.2 slot, M Key, for units of type 2242/2260/2280 (PCIe 4.0 x4 mode)

Intel H770 chipset

1x M.2 slot, M Key, for units of type 2242/2260/2280 (PCIe 4.0 x4 mode)

1x M.2 slot, M Key, for units of type 2242/2260/2280/22110 (PCIe 4.0 x4 mode)

1x M.2 slot, M Key, for 2242/2260/2280 type units (SATA and PCIe 4.0 x4 mode)

4x SATA 6Gb/s ports

RAID 0, RAID 1, RAID 5 and RAID 10 support for both SATA and PCIe drives

Intel Rapid Storage technology support

USB

1x USB 3.2 Gen2x2 Type-C port on the back panel

2x USB 3.2 Gen2 type A port on the back panel

1x USB 3.2 Gen1 (USB 3.0) Type C port available via internal USB connector

6x USB 3.2 Gen1 (USB 3.0) type A ports (4 ports on the back panel, 2 ports available via internal USB connector)

4x USB 2.0 ports available via internal USB connectors

Audio

Realtek Audio Codec

7.1 channel High Definition Audio

S/PDIF output support

HIND

1x Intel 2.5Gigabit LAN controller

TUF LANGuard

WLAN/Bluetooth

Intel Wi-Fi 6

Wi-Fi 802.11a/b/g/n/ac/ax

Dual Band (2.4GHz, 5GHz)

Bluetooth 5.2

Internal connectors

1x 24-pin main power connector

1x 8-pin 12V power connector

1x 4-pin 12V power connector

4x SATA 6Gb/s connector

4x M.2 slots, M Key

1x USB 3.2 Gen1 Type-C connector

1x USB 3.2 Gen1 (USB 3.0) type A connector (supports 2x USB 3.2 Gen1 port)

2x USB 2.0 connector (supports 4x USB 2.0 port)

1x 4-pin CPU fan connector

1x 4-pin optional CPU fan connector

1x 4-pin water cooling pump connector

4x 4-pin chassis fan connector

3x addressable RGB LED strip connector

1x Aura RGB LED strip connector

1x Clear CMOS connector

1x serial port connector

1x front panel audio connector

1x system panel connector (with chassis intrusion detection)

1x Thunderbolt connector

Rear panel ports

1x HDMI

1x DisplayPort

1x USB 3.2 Gen2x2 Type-C

2x USB 3.2 Gen2 type A

4x USB 3.2 Gen1 (USB 3.0)

2x Wi-Fi antenna connector

1x RJ-45

5x audio jacks

1x optical S/PDIF output

Dimensions

30.5 x 24.4 cm

ATX format
