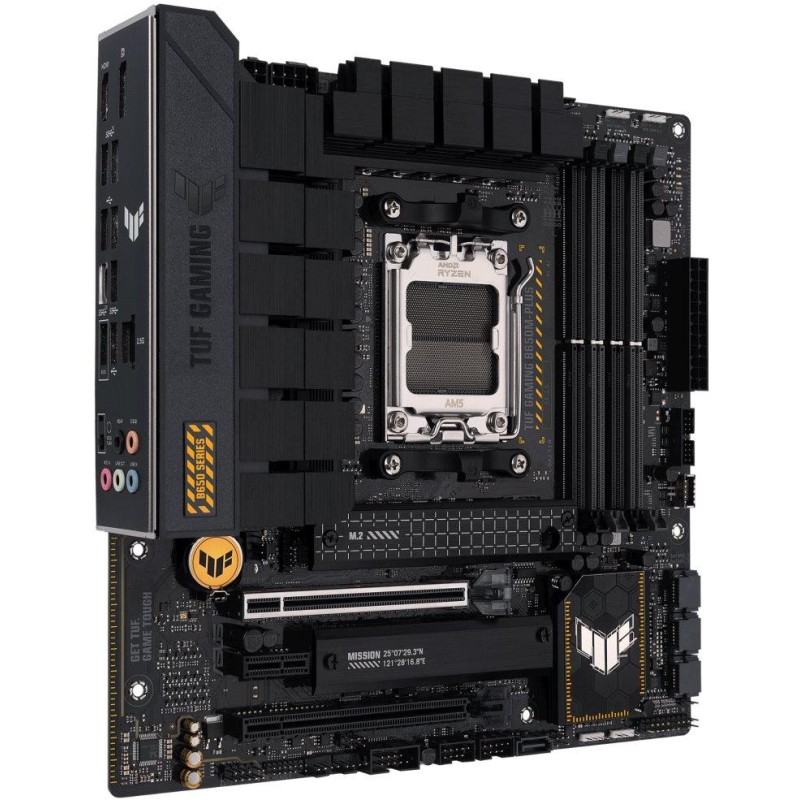

ASUS TUF GAMING B650M-PLUS / AMD B650 / AM5 / 4x DDR5 / 2x M.2 / HDMI / DP / USB-C / mATX

Description

ASUS TUF GAMING B650M-PLUS

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for AMD Ryzen 7000 series processors (Socket AM5)

Chipset

AMD B650

Memory

4x DDR5 memory slots, support up to 192 GB

Support DDR5 6400+ (OC)/ 6200 (OC)/ 6000 (OC)/ 5800 (OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 MHz

Dual-channel memory architecture

ECC and non-ECC support, unbuffered

Support On-Die ECC function

Support for AMD EXtended Profiles for Overclocking (EXPO)

OptiMem II support

Slots

AMD CPU

1x PCIe 4.0 x16 slot

AMD B650 chipset

1x PCIe 4.0 x16 slot (supports x4 mode)

1x PCIe 4.0 x1 slot

Graphic arts

1x HDMI port, supporting max. resolution 4K at 60 Hz

1x DisplayPort port, supporting max. resolution 8K at 60 Hz

Storage

AMD B650 chipset

4x SATA 6Gb/s

AMD CPU

1x M.2 slot, M Key, for units of type 2242/2260/2280 (PCIe 5.0 x4 mode)

1x M.2 slot, M Key, for units of type 2242/2260/2280 (PCIe 4.0 x4 mode)

AMD RAIDXpert2 support

RAID 0, RAID 1 and RAID 10 support for SATA drives

RAID 0, RAID 1 and RAID 10 support for PCIe drives

USB

1x USB 3.2 Gen2x2 Type-C port on the back panel

2x USB 3.2 Gen2 type A port on the back panel

1x USB 3.2 Gen1 Type C port available via internal USB connector

3x USB 3.2 Gen1 (USB 3.0) ports (1 port on the back panel, 2 ports available via internal USB connector)

8x USB 2.0 ports (4 ports on the back panel, 4 ports available via internal USB connectors)

Audio

Realtek Audio Codec

7.1 channel High Definition Audio

HIND

1x Realtek 2.5Gigabit LAN controller

TUF LANGuard support

Internal connectors

1x 24-pin ATX main power connector

1x 8-pin 12V power connector

1x 4-pin 12V power connector

4x SATA 6Gb/s connector

2x M.2 slots, M Key

1x USB 3.2 Gen1 Type-C front panel connector

1x USB 3.2 Gen1 (USB 3.0) connector (supports 2x USB 3.2 Gen1 port)

2x USB 2.0 connector (supports 4x USB 2.0 port)

1x 4-pin CPU fan connector

1x 4-pin optional CPU fan connector

1x 4-pin water cooling pump connector

3x 4-pin chassis fan connector

3x addressable RGB LED strip connector

1x Aura RGB LED strip connector

1x Clear CMOS jumper

1x serial port connector

1x front panel audio connector

1x system panel connector (including chassis intrusion detection)

1x Thunderbolt connector

Rear panel ports

1x HDMI

1x DisplayPort

4x USB 2.0

1x USB 3.2 Gen1 (USB 3.0)

2x USB 3.2 Gen2 (USB 3.1 Gen2)

1x USB 3.2 Gen2x2 Type-C

1x RJ-45

5x audio jacks

1x BIOS Flashback button

Dimensions

24.4 x 24.4 cm

Micro ATX format
