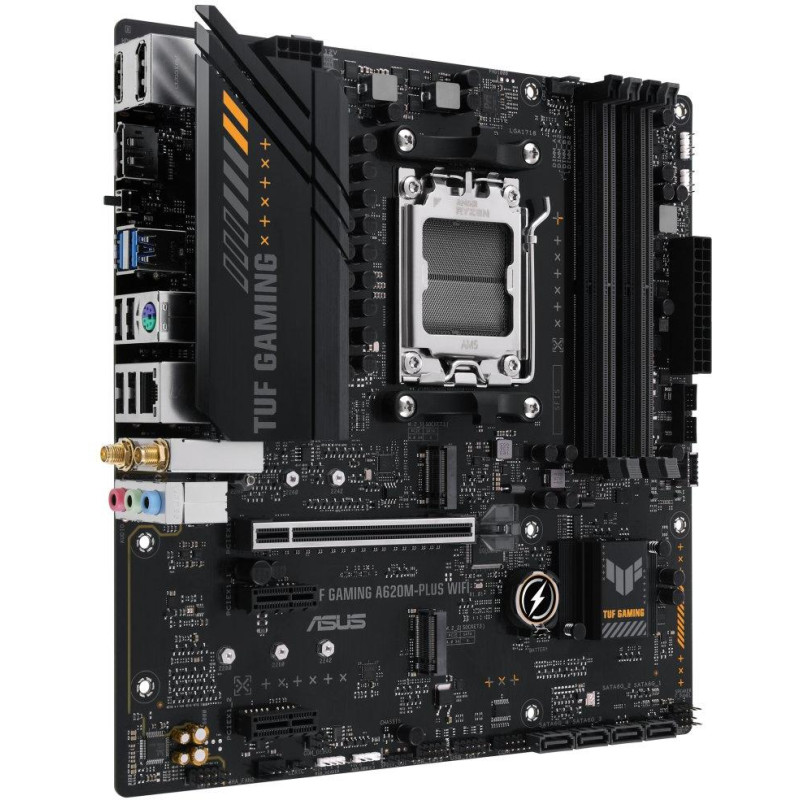

ASUS TUF GAMING A620M-PLUS WIFI / A620 / AM5 / 4x DDR5 / M.2 / HDMI / 2x DP / WiFi / mATX

Description

ASUS TUF GAMING A620M-PLUS WIFI

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for AMD Ryzen 7000, 8000 and 9000 series processors (Socket AM5)

Chipset

AMD A620

Memory

4× DDR5 memory slots, support up to 192 GB

DDR5 support up to 7600+ (OC)/ 7200 (OC)/ 7000 (OC)/ 6800 (OC)/ 6600 (OC)/ 6400 (OC)/ 6200 (OC)/ 6000 (OC)/ 5800 (OC)/ 5600 (OC)/ 5400 (OC)/ 5200/ 5000/ 4800 MHz

Dual-channel memory architecture

ECC and non-ECC support, unbuffered

On-Die ECC support for non-ECC memory

Support for AMD EXtended Profiles for Overclocking (EXPO)

OptiMem II support

Slots

AMD CPU

1× PCIe 4.0 x16 slot

AMD Ryzen 8000 series supports x8/x4 mode

AMD A620 chipset

2× PCIe 3.0 x1 slots

Graphic arts

1× HDMI 2.1 port, supporting max. resolution 4K at 60 Hz

2× DisplayPort 1.4 port, supporting max. resolution 8K at 60 Hz

Storage

AMD Ryzen 9000 and 7000

2× M.2 slot, M Key, for units of type 2242/2260/2280 (PCIe 4.0 x4 mode)

AMD Ryzen 8000

1× M.2 slot, M Key, for 2242/2260/2280 type units (PCIe 4.0 x4 mode)

1× M.2 slot, M Key, for 2242/2260/2280 type units (PCIe 4.0 x4/x2 mode)

AMD A620 chipset

4× SATA 6Gb/s ports

RAID 0, RAID 1, and RAID 10 support for SATA and M.2 NVMe drives

Support for AMD RAIDXpert2 technology

USB

1× USB-C 3.2 Gen1 port available via internal USB connector

4× USB 3.2 Gen1 (USB 3.0) ports (2 ports on the back panel, 2 ports available via internal USB connector)

8× USB 2.0 ports (4 ports on the back panel, 4 ports available via internal USB connectors)

Audio

Realtek Codec

7.1 channel High Definition Audio

HIND

1× Realtek Gigabit LAN controller

WLAN/Bluetooth

Wi-Fi 6

802.11a/b/g/n/ac/ax

Dual Band (2.4GHz, 5GHz)

Bluetooth 5.3

Internal connectors

1× 4pin CPU fan connector

2× 4pin chassis fan connector

1× 24pin ATX main power connector

1× 8pin +12V power connector

2× M.2 slot, M Key

4× SATA 6Gb/s connector

1× USB-C 3.2 Gen1 (USB 3.0) connector

1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 ports)

2x USB 2.0 connector (supports 4x USB 2.0 port)

3× addressable RGB LED strip connector

1x Aura RGB LED strip connector

1× Clear CMOS jumper

1× serial port connector

1× front panel audio connector

1× S/PDIF output connector

1× speaker connector

1× 10-1pin system board connector

Rear panel ports

1× HDMI

2× DisplayPort

2× USB 3.2 Gen1 (USB 3.0)

4× USB 2.0

1× RJ-45

3× audio jacks

2× Wi-Fi antenna connector

1× BIOS Flashback button

1× PS/2 keyboard and mouse combo port

Dimensions

24.4 × 24.4 cm

Micro ATX format
