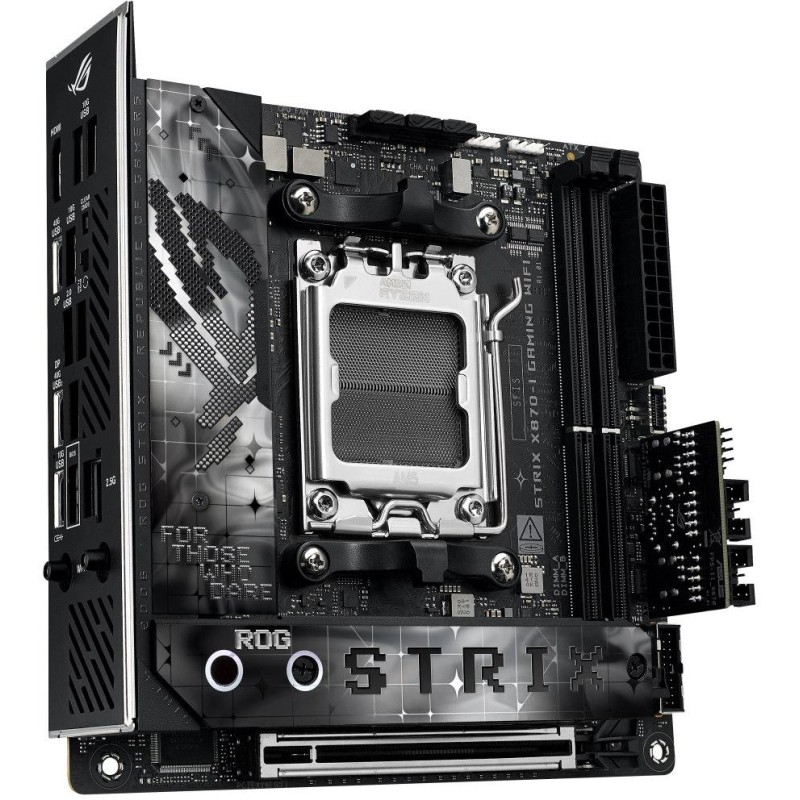

ASUS ROG STRIX X870-I GAMING WIFI / X870 / AM5 / 2x DDR5 / HDMI / M.2 / USB4 / WIFI / Mini-ITX

Description

ASUS ROG STRIX X870-I GAMING WIFI

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for AMD Ryzen 9000, 8000 and 7000 series processors (AM5 socket)

Chipset

AMD X870

Memory

2× DDR5 memory slots, support up to 96 GB

Supports up to 8400+ MT/s (OC) with Ryzen 9000 series processors

Supports up to 8600+ MT/s (OC) with Ryzen 8000 series processors

Supports up to 8000+ MT/s (OC) with Ryzen 7000 series processors

ECC and non-ECC support, unbuffered

Dual-channel memory architecture

Support On-Die ECC function

Support for AMD Extended Profiles for Overclocking (EXPO)

ASUS Enhanced Memory Profile (AEMP) support

Slots

AMD Ryzen 9000 and 7000 series

1× PCIe 5.0 x16 slot

AMD Ryzen 8000 series

1× PCIe 4.0 x16 slot (supports x8/x4 mode)

Graphic arts

1× HDMI port, supporting max. resolution 4K at 60 Hz (according to HDMI 2.1)

2× USB4, supporting max. resolution 4K at 60 Hz (according to DP 1.4a)

Storage

AMD Ryzen 9000 and 7000 series

1× M.2 slot, M Key, for type 2280 units (PCIe 5.0 x4 mode)

AMD Ryzen 8000 series

1× M.2 slot, M Key, for 2280 type units (PCIe 4.0 x4 mode)

AMD X870 chipset

1× M.2 slot, M Key, for 2242/2260/2280 type units (PCIe 4.0 x4 mode)

2× SATA III

AMD RAIDXpert2 supports RAID 0 and RAID 1 for SATA drives and RAID 0, RAID 1, and RAID 10 for PCIe drives

USB

2× USB4 (USB-C) ports available on the rear panel

2× USB-C 3.2 Gen2 (USB-C 3.1) (1 port available on the back panel, 1 port available via internal USB connector)

4× USB 3.2 Gen2 (USB 3.1) available on the back panel

1× USB 3.2 Gen1 (USB 3.0) port available via internal USB connector (supports 2× USB 3.2 Gen1)

3× USB 2.0 ports on the rear panel

1× USB 3.2 Gen2 (USB 3.1) port (when connecting ROG STRIX HIVE II)

1× USB-C 3.2 Gen2 (USB-C 3.1) port (when connecting ROG STRIX HIVE II)

2× USB 2.0 (supports 3× USB 2.0 when ROG FPS CARD is connected)

Audio

2x audio jack after connecting ROG Strix Hive II

ROG Hyper-Grounding technology

ESS SABRE9260Q DAC

HIND

1× Intel 2.5GbE LAN controller

ASUS LANGuard

WLAN/Bluetooth

2×2 Wi-Fi 7 (802.11be)

Triple Band (2.4 GHz, 5 GHz, 6 GHz)

Bluetooth v5.4

Internal connectors

1× 24pin ATX main power connector

1× 8pin +12V power connector

1× 4pin CPU fan connector

1× 4pin water cooling pump connector

1× 4pin chassis fan connector

2× M.2 slots

2× SATA III

1× USB-C 3.2 Gen2 (USB-C 3.1)

1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1)

2x USB 2.0 port (supports 3x USB 2.0)

1× CPU overvoltage jumper

1× front panel connector

1× PCIe alternate mode switch

2x addressable Gen2 connector

1× 2pin power button connector

1× thermal sensor connector

2x USB-C for ROG FPS card installation

Rear panel ports

2× Wi-Fi antenna connector

1× HDMI

2× USB4 (USB-C)

1× USB-C 3.2 Gen2 (USB 3.1)

4× USB 3.2 Gen2 (USB 3.1)

3× USB 2.0

1× RJ-45

1× BIOS Flashback button

1× Clear CMOS button

Dimensions

17 × 17 cm

mini-ITX format
