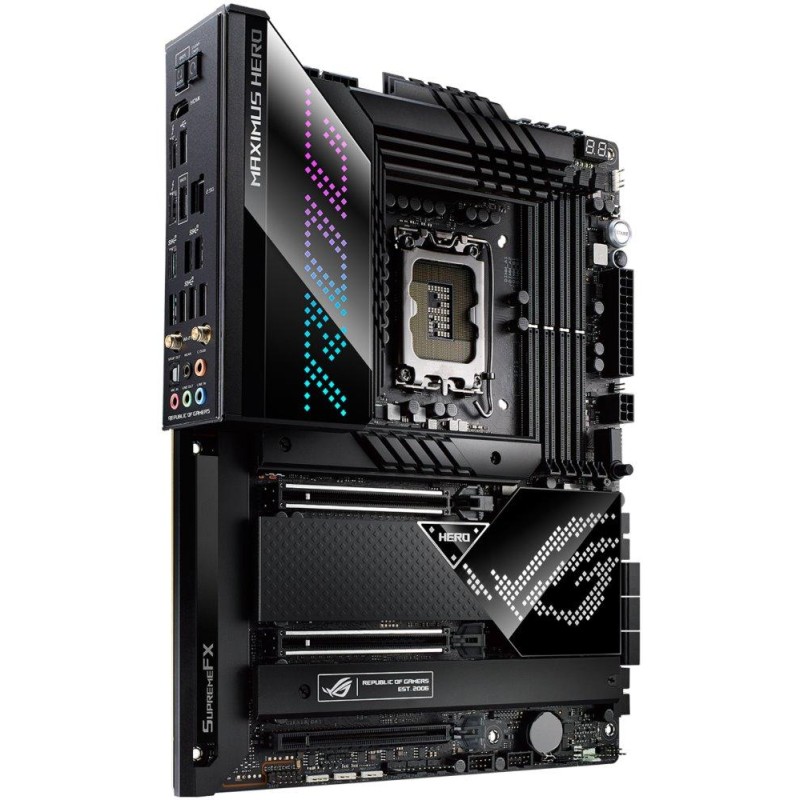

ASUS ROG MAXIMUS Z690 HERO

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for 12th and 13th generation Intel Core/ Pentium/ Celeron processors

LGA1700 socket

Chipset

Intel Z690

Memory

4x DDR5 memory slots, support up to 192 GB

Support DDR5 6400+ (OC) / 6200 (OC) / 6000 (OC) / 5800 (OC) / 5600 (OC) / 5400 (OC) / 5200 (OC) / 5000 (OC) / 4800 MHz

Dual-channel memory architecture

Support non-ECC, unbuffered memory

Intel Extreme Memory Profile (XMP) support

Slots

Intel CPU

2× PCIe 5.0 x16 slot (supports x16, x8/x8 mode)

Intel Z690 chipset

1× PCIe 4.0 x16 slot (supports x4, x4/x4 mode)

Graphic arts

1× HDMI port, supporting max. resolution 4K at 60 Hz

2× Thunderbolt 4 ports

Storage

Intel CPU

1× M.2 slot, M Key, for units of type 2242/2260/2280/22110 (PCIe 4.0 x4 mode)

Intel Z690 chipset

6× SATA 6Gb/s ports

1× M.2 slot, M Key, for 2242/2260/2280 type units (PCIe 3.0 x4 mode)

1× M.2 slot, M key, for 2242/2260/2280 type units (SATA and PCIe 4.0 x4 mode)

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA drives

RAID 0, RAID 1 and RAID 5 support for PCIe drives

Support for Intel Optane Memory technology

Intel Rapid Storage technology support

ASUS ROG Hyper M.2

Expansion card for PCIe slot (included)

1× Hyper M.2 slot, M Key, for units of type 2242/2260/2280/22110 (PCIe 5.0 x4/ PCIe 4.0 x4 mode according to the selected PCIe slot)

1× Hyper M.2 slot, M Key, for units of type 2242/2260/2280/22110 (PCIe 4.0 x4 mode)

Both slots are available simultaneously only when installing an expansion card in the PCIe 4.0 x16 slot

USB

2× Thunderbolt 4 (USB Type-C) ports on the back panel

6× USB 3.2 Gen2 Type A ports on the back panel

1× USB 3.2 Gen2 Type-C port on the back panel

1× USB 3.2 Gen2x2 Type C port available via internal USB connector

4× USB 3.2 Gen1 (USB 3.0) ports available via internal USB connectors

6× USB 2.0 ports (2 ports on the back panel, 4 ports available via internal USB connectors)

Audio

ROG SupremeFX ALC4082 Codec

7.1 channel High Definition Audio

SupremeFX Shielding technology

ESS SABRE9018Q2C DAC/AMP

S/PDIF output support

HIND

1× Intel I225-V 2.5Gigabit LAN controller

WLAN/Bluetooth

Intel Wi-Fi 6E AX210

Wi-Fi 802.11a/b/g/n/ac/ax

Dual Band (2.4 GHz, 5 GHz, 6 GHz)

Bluetooth 5.2

Internal connectors

1× 24pin ATX main power connector

2× 8pin 12V power connector

1× 6pin PCIe power connector

6× SATA 6Gb/s connector

3× M.2 slots, M Key

1× USB 3.2 Gen2x2 Type-C front panel connector

2× USB 3.2 Gen1 (USB 3.0) connector (supports 4× USB 3.2 Gen1 ports)

2x USB 2.0 connector (supports 4x USB 2.0 port)

1× 4pin CPU fan connector

1× 4-pin optional CPU fan connector

1× 4pin water cooling pump connector>
4× 4pin chassis fan connector

1× W_PUMP+ connector

1× 2-pin W_IN connector

1× 2-pin connector W_OUT

1× 3-pin W_FLOW connector

3× addressable RGB LED strip connector

1x Aura RGB LED strip connector

1× ReTry button

1× FlexKey button

1× Start button

1× front panel audio connector

1x system panel connector

1× SPI TPM connector

1× temperature sensor connector

Rear panel ports

1× BIOS Flashback button

1× Clear CMOS button

2× Wi-Fi antenna connector

1× HDMI

2× Thunderbolt 4 (USB Type-C)

2× USB 2.0

6× USB 3.2 Gen2 (USB 3.1 Gen2)

1× USB 3.2 Gen2 Type-C

1× RJ-45

1× optical S/PDIF output

5× audio jacks

Dimensions

30.5 × 24.4 cm

ATX format
