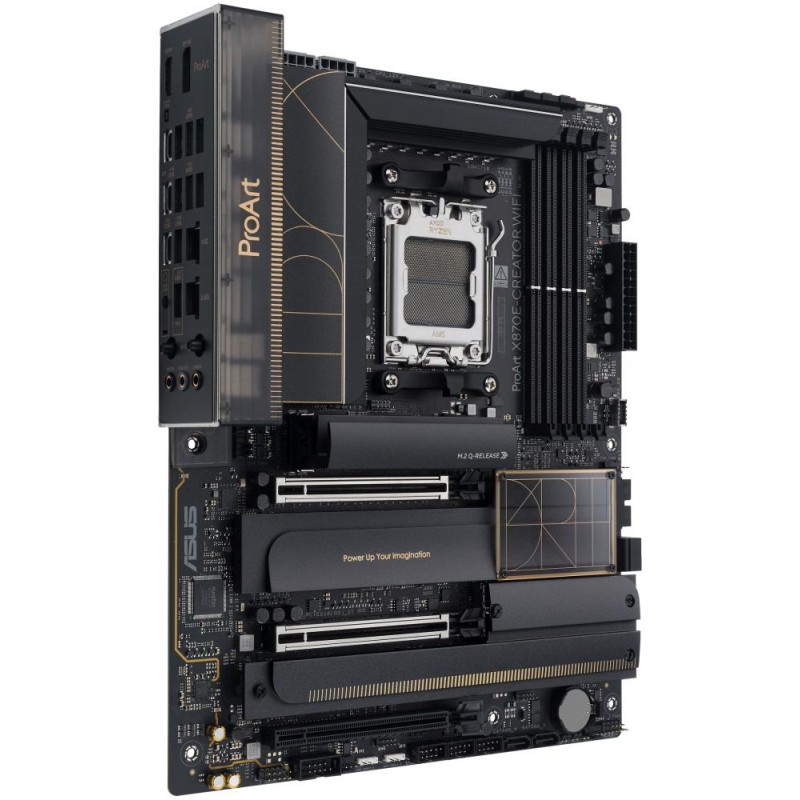

ASUS PROART X870E-CREATOR WIFI / X870E / AM5 / 4x DDR5 / HDMI / M.2 / USB4 / WIFI / ATX

Description

ASUS ProArt X870E-CREATOR WIFI

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for AMD Ryzen 9000, 8000 and 7000 series processors (AM5 socket)

Chipset

AMD X870E

Memory

4× DDR5 memory slots, support up to 192 GB

DDR5 support up to 8000+MT/s (OC)

Dual-channel memory architecture

ECC and non-ECC support, unbuffered

Support On-Die ECC function

Support for AMD Extended Profiles for Overclocking (EXPO)

ASUS Enhanced Memory Profile (AEMP) support

Slots

AMD Ryzen 9000 and 7000 series

2x PCIe 5.0 x16 slot with Q-Release Slim

AMD Ryzen 8000 series

1× PCIe 4.0 x16 slot with Q-Release Slim

AMD X870E chipset

1× PCIe 4.0 x16 slot (supports x4 mode)

Some PCIe, M.2 slots and SATA connectors share data lines and will not work when installed simultaneously. For more information, please visit the manufacturer’s website.

Graphic arts

1× HDMI port, supporting max. resolution 4K at 60 Hz (according to HDMI 2.1)

2× USB4 (USB-C), supporting max. resolution 8K at 60 Hz (according to DP 1.4)

Storage

AMD Ryzen 9000 and 7000 series

2× M.2 slot, M Key, for units of type 2242/2260/2280 (PCIe 5.0 x4 mode)

AMD Ryzen 8000 series

1× M.2 slot, M Key, for 2242/2260/2280 type units (PCIe 4.0 x4 mode)

AMD X870 chipset

1× M.2 slot, M Key, for 2242/2260/2280 type units (PCIe 4.0 x4 mode)

1× M.2 slot, M Key, for units of type 2242/2260/2280/22110 (PCIe 4.0 x4 mode)

4× SATA 6Gb/s

USB

2× USB4 (USB-C) ports on the back panel

1× USB-C 3.2 Gen 2×2 port with 30W PD/QC4+ support available via internal USB connector

1× USB-C 3.2 Gen 2×2 port on the back panel

7× USB 3.2 Gen2 (USB 3.1) ports on the back panel

2× USB 3.2 Gen1 (USB 3.0) available via internal USB connector

7× USB 2.0 (1 port on the back panel, 6 ports available via internal USB connectors)

Audio

Realtek ALC1220P Audio Codec

7.1-channel Surround Sound High Definition Audio

120 dB SNR stereo output and 113 dB SNR recording input

HIND

1× Marvell AQtion 10GbE LAN controller

1× Intel 2.5GbE LAN controller

ASUS LANGuard

WLAN/Bluetooth

2×2 Wi-Fi 7 (802.11be)

Triple Band (2.4 GHz, 5 GHz, 6 GHz)

Bluetooth v5.4

Internal connectors

1× 4pin CPU fan connector

1× 4-pin optional CPU fan connector

1× 4pin water cooling pump connector

5× 4pin chassis fan connector

1× 24pin ATX main power connector

2× 8pin +12V power connector

4× M.2 slots (Key M)

4× SATA 6Gb/s

1× USB-C 3.2 Gen2×2 connector (with 30W PD/QC4+ support)

1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1)

3x USB 2.0 connector (supports 6x USB 2.0)

3x addressable Gen2 connector

1× chassis opening detection connector

1× serial port connector

1× CPU overvoltage jumper

1× front panel audio connector
1× 10-1pin system board connector

1× thermal sensor connector

Rear panel ports

2× USB4 (USB-C)

1× USB-C 3.2 Gen2×2

7× USB 3.2 Gen2 (USB 3.1)

1× USB 2.0

1× DisplayPort

1× HDMI

2× Wi-Fi antenna connector

2× RJ-45

3× audio jacks

1× BIOS FlashBack button

1× Clear CMOS button

Dimensions

30.5 × 24.4 cm

ATX format
