ASUS Pro WS WRX90E-SAGE SE / WRX90 / sTR5 / 8x DDR5 / M.2 / USB Type-C / EEB Form Factor

Description

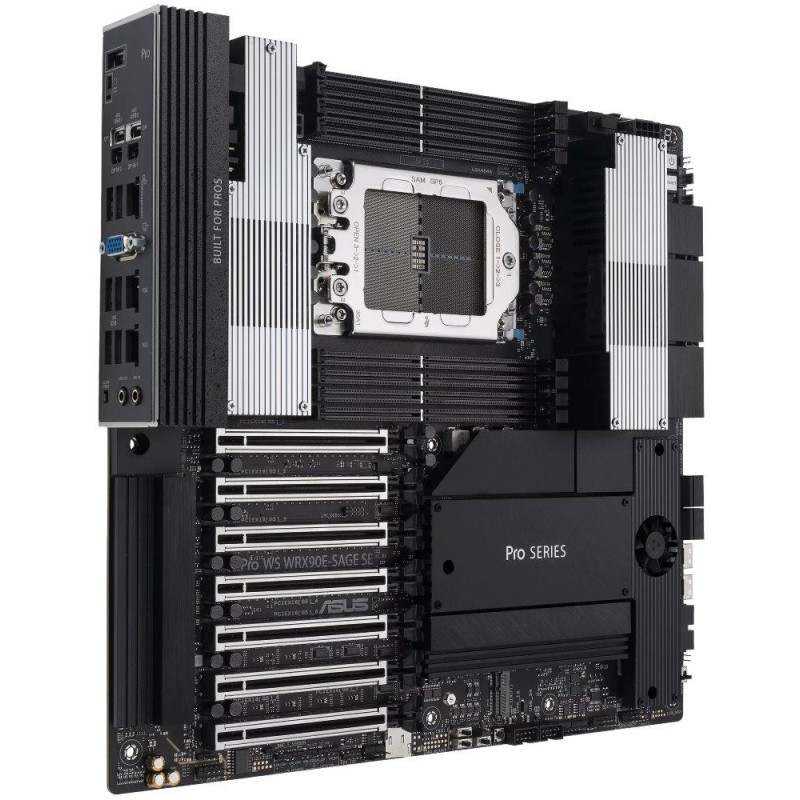

ASUS Pro WS WRX90E-SAGE SE

CPU

Support for AMD Ryzen Threadripper PRO 7000WX generation processors (TR5 socket)

Chipset

AMD WRX90

Memory

8× DDR5 memory slots, support up to 2048 GB

Support DDR5 4800/ 5600/ 6000 MHz

Eight-channel memory architecture

ECC memory support

AMD EXPO Support

Slots

6× PCIe 5.0 x16 slots

1× PCIe 5.0 x16 slot (supports x8 mode)

Graphic arts

1× VGA AST2600

2× USB-C 4.0, supporting max. resolution 8K at 60 Hz

Storage

AMD WRX90 chipset

2× SlimSAS slot, for NVMe drives (PCIe 4.0 x4 mode)

4× SATA 6Gb/s ports

AMD Ryzen Threadripper PRO

2× M.2 slot, M Key, for units of type 2242/2260/2280/22110 (PCIe 5.0 x4 mode)

2× M.2 slot, M Key, for units of type 2242/2260/2280 (PCIe 5.0 x4 mode)

Supports AMD RAIDXpert2 technology (RAID 0, RAID 1, RAID 5 and RAID 10 for both SATA and PCIe drives)

USB

2× USB-C 4.0 on the back panel

1× USB-C 3.2 Gen2×2 port available via internal USB connector

6× USB 3.2 Gen2 (USB 3.1) ports on the back panel

2× USB 3.2 Gen1 (USB 3.0) ports available via internal USB connector

5× USB 2.0 ports (1 port on the back panel, 4 ports available via internal USB connectors)

Audio

Realtek ALC1220P Codec

5.1 channel High Definition Audio

120 dB SNR playback, 113 dB SNR recording

HIND

1× Intel Dual 10Gigabit LAN controller

1× Realtek Gigabit LAN for AST2600 management

ASUS LANGuard

Internal connectors

1× 4pin CPU fan connector

1× 4-pin optional CPU fan connector

1× water cooling pump fan connector

5× 4pin chassis fan connector

2× 4pin VRM fan connector

1× 4-pin M.2 fan connector

1× 24pin main power connector

2× 8pin +12V power connector

2× 8pin PCIe CPU power connector

2× 8pin PCIe power connector

4× M.2 slots, M Key

4× SATA 6Gb/s ports

2× SlimSAS ports

1× USB-C 3.2 Gen2×2 connector

1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 ports)

2× USB 2.0 connector (supports 4× USB 2.0 port)

1× chassis opening detection connector

1× serial port connector

1× FlexKey button

1× front panel audio connector

1× LN2 mode jumper

1× M.2 slot, E key for Wi-Fi module (not included)

7× ProbeIt measuring points

1× ReTry button

1× RSVD switch

1× slow mode switch

1× Safe Boot button

1× 14-1pin SPI TPM connector

1× Start button

1× 10-1pin system board connector

1× temperature sensor connector

Rear panel ports

2× USB-C 4.0

6x USB 3.2 Gen2 (USB 3.1) ports

1× USB 2.0

1× VGA

2× Mini DisplayPort input (for USB-C 4.0 pass-through)

3× RJ-45

2× audio jacks

1× Clear CMOS button

1× BIOS Flashback button

Dimensions

33 × 30.5 cm

EATX (EEB) format
