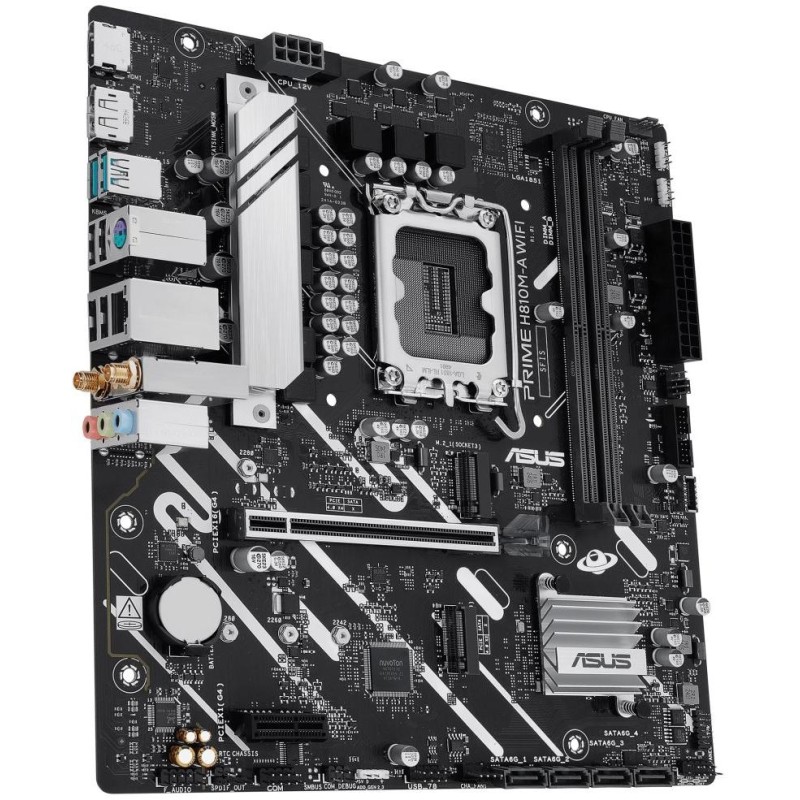

ASUS PRIME H810M-A WIFI / H810 / LGA1851 / DDR5 / DP / HDMI / 2x M.2 / WiFi / mATX

ASUS PRIME H810M-A WIFI / H810 / LGA1851 / DDR5 / DP / HDMI / 2x M.2 / WiFi / mATX

157,45 €

SKU: MotherboardsASUS-PRIME-H810M-A-W-1851 Category: Tag:

Description

ASUS PRIME H810M-A WIFI

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for Intel Core Ultra 2 series processors

LGA1851 socket

Chipset

Intel H810

Memory

2× DDR5 memory slots, support up to 128 GB

DDR5 support up to 6400 MT/s

Dual-channel memory architecture

Support non-ECC, unbuffered memory

On-Die ECC support

Intel Extreme Memory Profile (XMP) and ASUS Enhanced Memory Profile II (AEMP II) support

CUDIMM support

Slots

Intel CPU

1× PCIe 4.0 x16 slot

Intel H810 chipset

1× PCIe 4.0 x1 slot

Graphic arts

1× HDMI port, supporting max. resolution 4K at 60 Hz

1× DisplayPort port, supporting max. resolution 4K at 60 Hz

Storage

Intel H810 chipset

1× M.2 slot, M Key, for type 2280 units (PCIe 4.0 x4 mode)

1× M.2 slot, M Key, for 2242/2260/2280 type units (PCIe 4.0 x2 mode)

4× SATA 6Gb/s ports

USB

2× USB 3.2 Gen2 ports on the back panel

1× USB-C 3.2 Gen1 (USB 3.0) port available via internal USB connector

2× USB 3.2 Gen1 (USB 3.0) ports available via internal USB connector

6× USB 2.0 ports (4 ports on the back panel, 2 ports available via internal USB connector)

Audio

Realtek Audio Codec

7.1-channel Surround Sound High Definition Audio

HIND

1× Intel Gigabit LAN controller

ASUS LANGuard support

WLAN/Bluetooth

Wi-Fi 6

802.11a/b/g/n/ac/ax

Dual Band (2.4GHz, 5GHz)

Bluetooth 5.3

Internal connectors

1× 24pin main power connector

1× 8pin 12V power connector

4× SATA 6Gb/s connector

2× M.2 slot, M Key

1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 ports)

1× USB-C 3.2 Gen1 (USB 3.0) front panel connector

2x USB 2.0 connector (supports 2x USB 2.0 port)

1× 4pin CPU fan connector

2× 4pin chassis fan connector

3× addressable RGB LED strip connector

1× front panel audio connector

1x system panel connector

1× SPI TPM connector

1× Clear CMOS jumper

1× S/PDIF output connector

1× serial port connector

Rear panel ports

2× Wi-Fi antenna connector

1× PS/2 keyboard and mouse combo port

1× HDMI

1× DisplayPort

2x USB 3.2 Gen2 (USB 3.1 Gen2)

4× USB 2.0

1× RJ-45

3× audio jacks

Dimensions

24.4 × 22.2 cm

Micro ATX format

Additional information

Brand

ASUS
Model

ASUS
Warranty period for registration number (months)

36
Manufacturer

ASUS
Warranty length (months)

36
Processed

Approved
Wi-Fi

Yes
RJ-45 (number)

1
Dimensions

244 × 222 mm
USB 2.0 (number)

4
Gigabit LAN

Yes
Wi-Fi standard

802.11a/b/g/n/ac/ax
Analog audio input/output (number)

3
HDMI (number)

1
TDP (W)

125
USB 3.1 (number)

2
RAM type

DDR5
Chipset

Intel H810
Number of memory slots

2
DisplayPort (number)

1
Motherboard format

MATX
PCI Express X1 (number)

1
PCI Express X16 (number)

1
RAID controller

No
Max RAM size (GB)

128
Processor socket

1851
M.2 port (for expansion cards)

No
SATA III (number)

4
M.2 port (number)

2
