ASUS PRIME B650M-A WIFI II / B650 / AM5 / 4x DDR5 / M.2 / HDMI / DP / D-Sub / Wi-Fi / mATX

Description

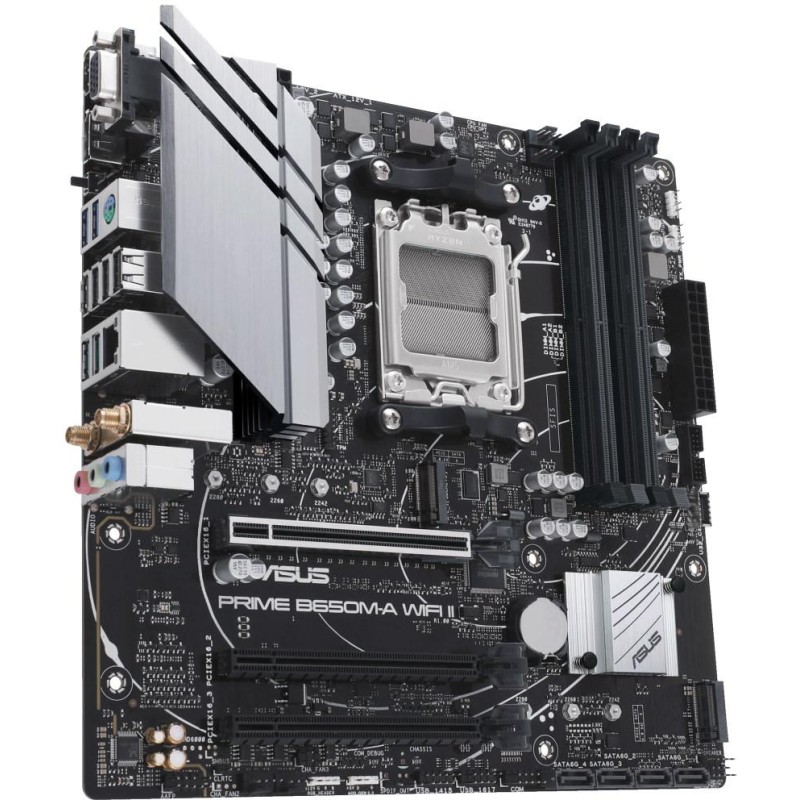

ASUS PRIME B650M-A WIFI II

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for AMD Ryzen 7000, 8000 and 9000 series processors (Socket AM5)

Chipset

AMD B650

Memory

4× DDR5 memory slots, support up to 192 GB

Support DDR5 7600+ (OC)/7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/ 5400 (OC)/ 5200/ 5000/ 4800 MHz

Dual-channel memory architecture

ECC and non-ECC support, unbuffered

Support On-Die ECC function

Support for AMD EXtended Profiles for Overclocking (EXPO)

OptiMem II support

Slots

AMD Ryzen 9000 & 7000 series

1× PCIe 4.0 x16 slot

AMD Ryzen 8000 series

1× PCIe 4.0 x16 slot (supports x8/x4 mode)

AMD B650 chipset

2× PCIe 4.0 x16 slot (supports x1 mode)

Graphic arts

1× HDMI port, supporting max. resolution 4K at 60 Hz

1× DisplayPort port, supporting max. resolution 8K at 60 Hz

1× VGA port

Storage

AMD Ryzen 9000 & 7000 series

1× M.2 slot, M Key, for 2242/2260/2280 type units (PCIe 5.0 x4 mode)

AMD Ryzen 8000 series

1× M.2 slot, M Key, for 2242/2260/2280 type units (PCIe 4.0 x4 mode)

AMD B650 chipset

1× M.2 slot, M Key, for 2242/2260/2280 type units (PCIe 4.0 x4 mode)

4× SATA 6Gb/s ports

AMD RAIDXpert2 support

RAID 0, RAID 1 and RAID 10 support for both PCIe and SATA drives

USB

2× USB 3.2 Gen2 ports on the back panel

1× USB-C 3.2 Gen1 port available via internal USB connector

4× USB 3.2 Gen1 (USB 3.0) ports (2 ports on the back panel, 2 ports available via internal USB connector)

8× USB 2.0 ports (4 ports on the back panel, 4 ports available via internal USB connectors)

Audio

Realtek Audio Codec

7.1 channel High Definition Audio

HIND

1× Realtek 2.5Gigabit LAN controller

WLAN/Bluetooth

Wi-Fi 6 2×2

802.11a/b/g/n/ac/ax

Dual Band (2.4GHz, 5GHz)

Bluetooth 5.2

Internal connectors

1× 24pin ATX main power connector

1× 8pin 12V power connector

1× 4pin 12V power connector

4× SATA 6Gb/s connector

2× M.2 slot, M Key

1× USB-C 3.2 Gen1 connector

1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 ports)

2x USB 2.0 connector (supports 4x USB 2.0 port)

1× 4pin CPU fan connector

1× 4-pin optional CPU fan connector

3× 4-pin chassis fan connector

3× addressable RGB LED strip connector

1x Aura RGB LED strip connector

1× Clear CMOS jumper

1× serial port connector

1× front panel audio connector

1× S/PDIF output connector

1× speaker connector

1× SPI TPM connector

1x system panel connector

Rear panel ports

1× PS/2 keyboard and mouse combo port

2× Wi-Fi antenna connector

1× HDMI

1× DisplayPort
> 1× VGA

4× USB 2.0

2× USB 3.2 Gen1 (USB 3.0)

2× USB 3.2 Gen2 (USB 3.1)

1× RJ-45

3× audio jacks

1× BIOS Flashback button

Dimensions

24.4 × 24.4 cm

Micro ATX format
