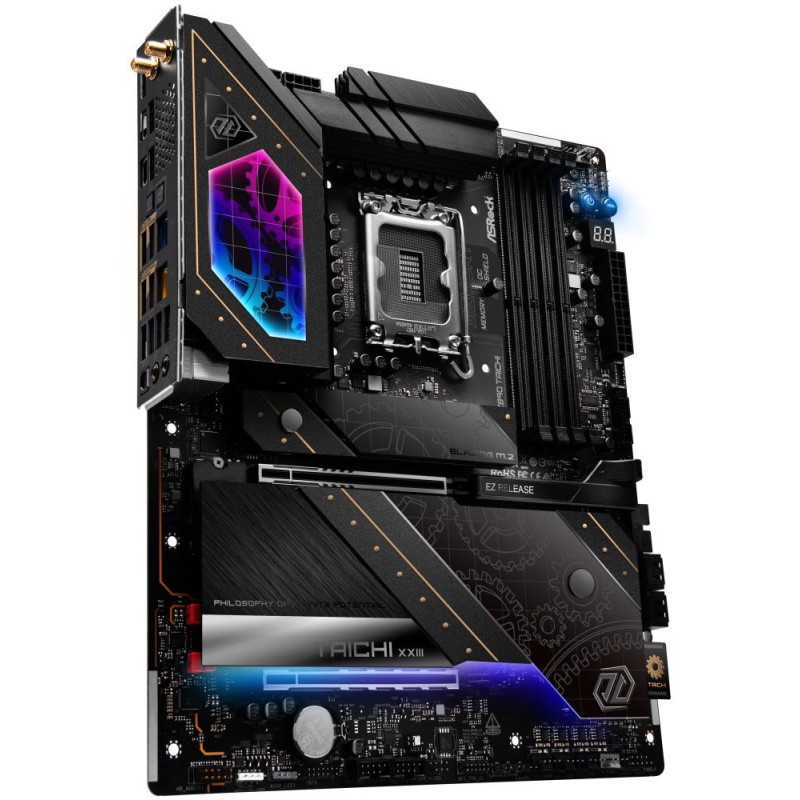

ASRock Z890 Taichi / Intel Z890 / LGA1851 / 4x DDR5 / 6x M.2 / 2x Thunderbolt 4 / WiFi / ATX

Description

ASRock Z890 Taichi The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without using a corresponding processor, these outputs will be inoperative. CPU Support for Intel Core Ultra 2 series processors Socket LGA1851 Chipset Intel Z890 Memory 4× DDR5 memory slot, supporting up to 256 GB DDR5 support up to 9600+ (OC) MT/s Dual-channel memory architecture Non-ECC support, unbuffered memory Intel Extreme Memory Profile (XMP) 3.0 support Intel CPU Slots 1× PCIe 5.0 x16 slot Intel Z890 chipset 1× PCIe 4.0 x16 slot (supports x4 mode) Graphics 1× HDMI port, supporting max. resolution 4K at 120 Hz 2× Thunderbolt 4 port, supporting max. 8K resolution at 60 Hz/ 5K at 120 Hz Intel Xe LPG architecture Storage Intel CPU 1× Blazing M.2 slot, M Key, for type 2280 drives (PCIe 5.0 x4 mode) 1× Hyper M.2 slot, M Key, for type 2260/2280 drives (PCIe 4.0 x4 mode) Intel Z890 chipset 3× Hyper M.2 slot, M Key, for type 2260/2280 drives (PCIe 4.0 x4 mode) 1× Hyper M.2 slot, M Key, for type 2230/2242/2260/2280 drives (SATA and PCIe 4.0 x4 mode) 4× SATA 6Gb/s port Intel Volume Management Device (VMD) support RAID 0, RAID 1, RAID 5 and RAID 10 support for both SATA and NVMe drives USB 2× Thunderbolt 4 (USB-C) port on the rear panel 1× USB-C 3.2 Gen2×2 port accessible via internal USB connector 4× USB 3.2 Gen2 (USB 3.1) port on the back panel 8× USB 3.2 Gen1 (USB 3.0) port (4 ports on the back panel, 4 ports accessible via internal USB connectors) 6× USB 2.0 port (2 ports on the back panel, 4 ports accessible via internal USB connectors) Audio Realtek ALC4082 Codec 5.1-channel High Definition Audio ESS SABRE9219 DAC for front panel (130 dB SNR) Nahimic audio LAN 1× Realtek RTL8126 5G LAN controller 1× Dragon RTL8125BG 2.5G LAN controller WLAN/ Bluetooth Killer Wi-Fi 7 Wi-Fi 802.11a/b/g/n/ac/ax/axe/be Triple-Band 320 MHz (2.4 GHz, 5 GHz, 6 GHz) MU-MIMO Bluetooth 5.4 support Internal connectors 3× thermistor cable connector 1× SPI TPM connector 1× speaker and Power LED connector 1× RGB LED strip connector 3× addressable LED strip connector 2× 4pin CPU fan connector 1× 4pin water cooling pump fan connector 1× 4pin AIO fan connector 4× 4pin chassis fan connector 1× 24pin ATX main power connector 2× 8pin 12V power connector 1× front panel audio connector 2× USB 2.0 connector (supports 4× USB 2.0 port) 2× USB 3.2 Gen1 (USB 3.0) connector (supports 4× USB 3.2 Gen1 port) 1× USB-C 3.2 Gen2×2 front panel connector 1× Dr. Debug with LED 1× Power button with LED 1× Reset button with LED Ports on the rear panel 2× Wi-Fi antenna connector 1× HDMI 1× optical S/PDIF output 2× Thunderbolt 4 (USB-C) 4× USB 3.2 Gen2 (USB 3.1) 4× USB 3.2 Gen1 (USB 3.0) 1× Clear CMOS button 1× BIOS flashback button 2× USB 2.0 2× RJ-45 2× audio jack Dimensions 30.5 × 24.4 cm ATX format
