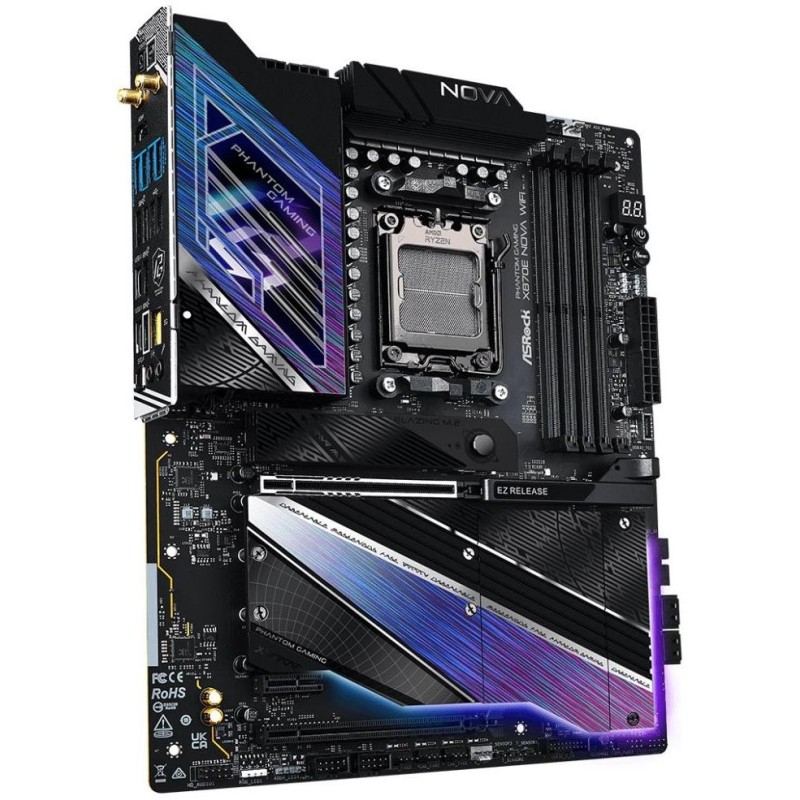

ASRock X870E Nova WiFi

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for AMD Ryzen 9000, 8000 and 7000 series processors (AM5 socket)

Chipset

AMD X870E

Memory

4× DDR5 memory slots, support up to 256 GB

DDR5 support up to 8200+ (OC) MT/s

Dual-channel memory architecture

ECC and non-ECC support, unbuffered

Support for AMD EXtended Profiles for Overclocking (EXPO)

Extreme Memory Profile (XMP) support

Slots

AMD CPU

1× PCIe 5.0 x16 slot (supports x16 or x8/x8 mode)

AMD X870E chipset

1× PCIe 3.0 x1 slot (supports x1 mode)

1× PCIe 3.0 x16 slot (supports x2 mode)

PCIe slots operate in PCIe 5.0 x16 mode with Ryzen 9000/7000 series processors, in PCIe 4.0 x8 mode with 8000 series processors (Phoenix 1), and in PCIe 4.0 x4 mode with 8000 series processors (Phoenix 2)

Some PCIe and M.2 slots share data lines and will not work when populated simultaneously. For more information, please visit the manufacturer’s website.

Graphic arts

1× HDMI port, supporting max. resolution 4K at 120 Hz

2× USB4 (USB-C) ports, supporting max. resolution 8K at 30 Hz

The image can only be displayed via USB4 ports when using a processor with integrated graphics.

Storage

AMD Ryzen 9000 & 7000

1× Blazing M.2 slot, M Key, for 2280 type units (PCIe 5.0 x4 mode)

AMD Ryzen 8000

1× Blazing M.2 slot, M Key, for 2280 type units (PCIe 4.0 x4 mode)

AMD X870E chipset

3× Hyper M.2 slot, M Key, for 2280 type units (PCIe 4.0 x4 mode)

1× M.2 slot, M Key, for 2280 type units (SATA 6Gb/s PCIe 3.0 x2 mode)

2× SATA 6Gb/s ports

ASMedia ASM1061

2× SATA 6Gb/s ports

RAID 0, RAID 1 support for SATA drives

RAID 0, RAID 1, and RAID 10 support for M.2 NVMe drives

Some PCIe and M.2 slots share data lines and will not work when populated simultaneously. For more information, please visit the manufacturer’s website.

USB

AMD CPU

2x USB4 (USB-C) on the back panel

2x USB 3.2 Gen2 (USB 3.1) on the back panel

AMD X870E chipset

1× USB-C 3.2 Gen2×2 available via internal USB connector

3x USB 3.2 Gen2 (USB 3.1) on the back panel

7× USB 3.2 Gen1 (USB 3.0) (3 ports on the back panel, 4 ports available via internal USB connectors)

6× USB 2.0 (2 ports on the back panel, 4 ports available via internal USB connectors)

Audio

Realtek ALC4082 Codec

7.1 channel High Definition Audio

HIND

1× Realtek RTL8126 5Gigabit LAN controller

WLAN/Bluetooth

2×2 Wi-Fi 7 (802.11a/b/g/n/ac/ax/axe/be)

Triple Band (2.4 GHz, 5 GHz, 6 GHz)

MU-MIMO support

Bluetooth 5.4

Internal connectors

3× thermistor cable connector

1× speaker connector and Power LED

1× RGB LED strip connector

3× addressable LED strip connector

2× 4pin CPU fan connector

3× 4-pin chassis fan connector

1× 4pin connectorr water cooling pumps

1× 4pin water cooling pump fan connector

1× 24pin ATX main power connector

2× 8pin 12V power connector

1× M.2 slot, E key for Wi-Fi module (occupied)

1× front panel audio connector

2× USB 2.0 connector (supports 4× USB 2.0 port)

2× USB 3.2 Gen1 (USB 3.0) connector (supports 4× USB 3.2 Gen1 ports)

1× USB-C 3.2 Gen2×2 front panel connector

1× Dr. Debug with LED

1× Power button with LED

1× Reset button with LED

Rear panel connectors

2× Wi-Fi antenna connector

1× HDMI

1× optical S/PDIF output

2× USB4 (USB-C)

5× USB 3.2 Gen2 (USB 3.1)

3× USB 3.2 Gen1 (USB 3.0)

2× USB 2.0

1× RJ-45

2× audio jacks

1× Clear CMOS button

1× BIOS Flashback button

Dimensions

305 × 244 mm

ATX format
