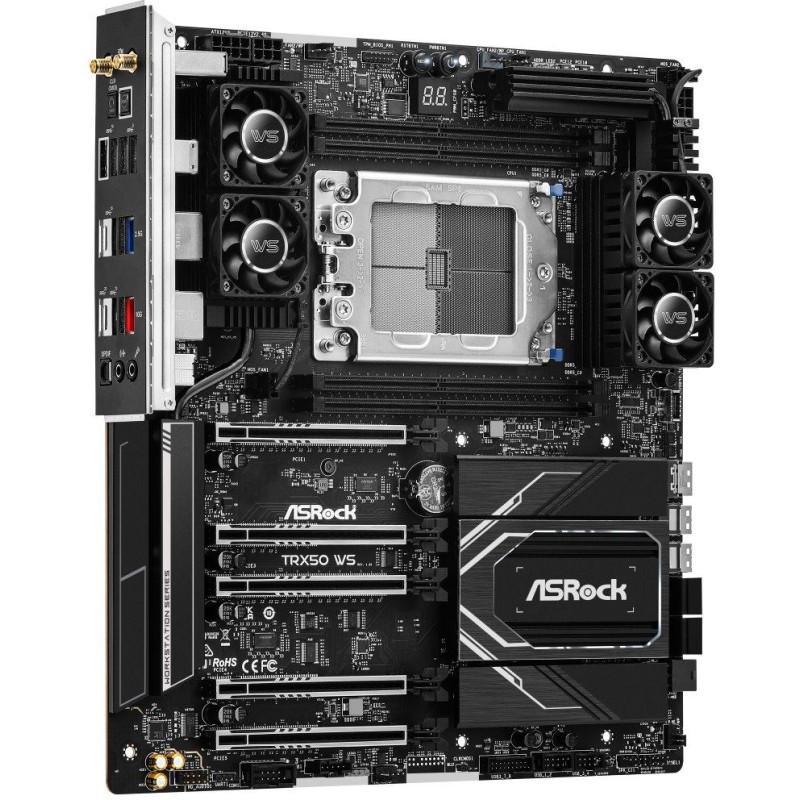

ASRock TRX50 WS / AMD TRX50 / 4x DDR5 DIMM ECC / 2x M.2 / 2x SlimSAS/ MCIO / USB-C / / WiFi / EATX

Description

ASRock TRX50 WS

CPU

Support for AMD Ryzen Threadripper 7000 and Threadripper PRO 7000 processors (TR5 socket)

Chipset

AMD TRX50

Memory

4× DDR5 memory slots, support up to 1024 GB

Supports DDR5 up to 7600+ (OC) MHz

Quad-channel memory architecture

ECC memory support

Slots

AMD CPU

2× PCIe 5.0 x16 slots

1× PCIe 5.0 x16 slot (supports x8 mode)

1× PCIe 4.0 x16 slot (supports x4 mode)

1× PCIe 4.0 x16 slot (supports x8 mode)

Storage

AMD CPU

1× Blazing M.2 slot, M Key, for 2260/2280 type units (PCIe 5.0 x4 mode)

1× MCIO slot (PCIe 5.0 x4)

2x SlimSAS slot (PCIe 4.0 x4 or 4x SATA)

AMD TRX50 chipset

1× Hyper M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x4 mode)

4× SATA 6Gb/s ports

RAID 0, RAID 1, and RAID 10 support for both SATA and M.2 NVMe drives

USB

AMD CPU

1× USB-C 3.2 Gen2x2 port on the back panel

4× USB 3.2 Gen2 (USB 3.1) ports on the back panel

AMD TRX50 chipset

2× USB-C 3.2 Gen2 port (1 port on the back panel, 1 port available via internal USB connector)

4× USB 3.2 Gen1 (USB 3.0) ports (2 ports on the back panel, 2 ports available via internal USB connector)

4× USB 2.0 ports available via internal USB connectors

Audio

Realtek ALC1220 Codec

7.1 channel High Definition Audio

Nahimic Audio

HIND

1× Marvell AQC113 10Gigabit LAN controller

1× Dragon RTL8125BG 2.5Gigabit LAN controller

WLAN/Bluetooth

AMD Wi-Fi 6E

Wi-Fi 802.11a/b/g/n/ac/ax

Dual Band (2.4 GHz, 5 GHz, 6 GHz)

MU-MIMO support

Bluetooth 5.2

Internal connectors

2× thermistor cable connector

1× SPI TPM connector

1× serial port connector

1× speaker connector and intrusion detection

2× addressable LED strip connector

1× 4pin CPU fan connector

1× 4-pin CPU fan/water cooling pump fan connector

3× 4-pin chassis fan/water cooling pump fan connector

1× 24pin ATX main power connector

1× 3-pin ATX power connector

2× 8pin ATX 12V power connector

2× 6pin PCIe 12V power connector

1× 6pin 12V graphics power connector

1× front panel audio connector

1× 5pin Thunderbolt AIC connector (supports ASRock Thunderbolt 4 AIC)

2x USB 2.0 connector (supports 4x USB 2.0 port)

1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 ports)

1× USB-C 3.2 Gen2 front panel connector

1× Dr. Debug

1× Power button

1× Reset button

Rear panel ports

2× Wi-Fi antenna connector

1× optical S/PDIF output

1× USB-C 3.2 Gen2×2

1× USB-C 3.2 Gen2

4× USB 3.2 Gen2 (USB 3.1)

2× USB 3.2 Gen1 (USB 3.0)

2× RJ-45

1× Clear CMOS button

1× BIOS Flashback button

2× audio jacks

Dimensions

30.5 × 27.7 cm

E-ATX format
