ASRock B860M-X WiFi / Intel B860 / LGA1851 / 2x DDR5 / 2x M.2 / HDMI / DP / USB-C / WiFi / mATX

ASRock B860M-X WiFi / Intel B860 / LGA1851 / 2x DDR5 / 2x M.2 / HDMI / DP / USB-C / WiFi / mATX

138,57 €

SKU: MotherboardsASROCK-B860M-X-WIFI--1851 Category: Tag:

Description

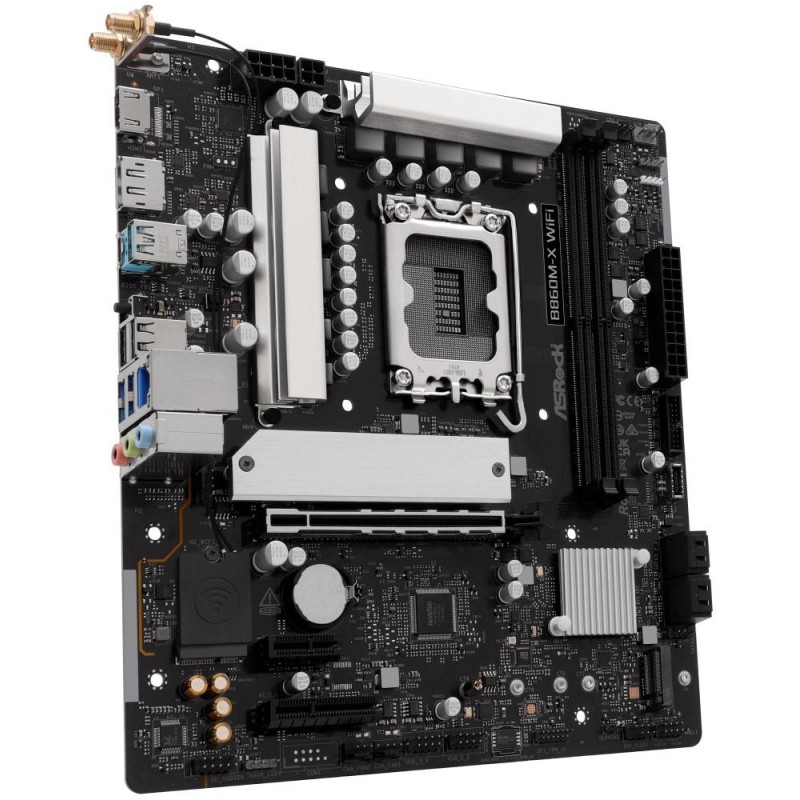

ASRock B860M-X WiFi

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for Intel Core Ultra 2 series processors

LGA1851 socket

Chipset

Intel B860

Memory

2× DDR5 memory slots, support up to 128 GB

DDR5 support up to 9066+(OC) MT/s

Dual-channel memory architecture

Support non-ECC, unbuffered memory

Intel Extreme Memory Profile (XMP) 3.0x support

CUDIMM support

Slots

Intel CPU

1× PCIe 4.0 x16 slot

Intel B860 chipset

1× PCIe 4.0 x4 slot

1× PCIe 4.0 x1 slot

Graphic arts

1× HDMI 2.1 port, supporting max. resolution 4K at 120 Hz

1× DisplayPort 1.4 port, supporting max. resolution 8K @ 60 Hz/ 5K @ 120 Hz

Intel Xe LPG architecture

Storage

Intel CPU

1× Blazing M.2 slot, M Key, for 2260/2280 type units (PCIe 5.0 x4 mode)

Intel B860 chipset

1× Hyper M.2 slot, M Key, for 2230/2242/2260/2280 type units (PCIe 4.0 x4 mode)

4× SATA 6Gb/s ports

Intel Volume Management Device (VMD) support

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA drives

USB

1× USB-C 3.2 Gen2×2 port on the back panel

1× USB-C 3.2 Gen1 port available via internal USB connector

5× USB 3.2 Gen1 ports (3 ports on the back panel, 2 ports available via internal USB connector)

6× USB 2.0 ports (2 ports on the back panel, 4 ports available via internal USB connectors)

Audio

Realtek ALC897 Codec

7.1 channel High Definition Audio

HIND

1× Realtek RTL8125BG 2.5Gigabit LAN controller

WLAN/Bluetooth

Wi-Fi 6E

Wi-Fi 802.11a/b/g/n/ac/ax/axe

Dual-Band 2×2 (2.4 GHz, 5 GHz, 6 GHz)

MU-MIMO support

Bluetooth 5.3

Internal connectors

1× SPI TPM connector

1× speaker connector and Power LED

1× RGB LED strip connector

2× addressable LED strip connector

2× 4pin CPU fan connector

2× 4pin chassis fan connector

1× 4pin water cooling pump fan connector

1× 24pin ATX main power connector

1× 8pin 12V power connector

1× 4pin 12V power connector

1× front panel audio connector

2x USB 2.0 connector (supports 4x USB 2.0 port)

1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 ports)

1× USB-C 3.2 Gen1 front panel connector

Rear panel ports

2× Wi-Fi antenna connector

1× HDMI

1× DisplayPort

1× USB-C 3.2 Gen2×2

3× USB 3.2 Gen1 (USB 3.0)

2× USB 2.0

1× RJ-45

1× BIOS Flashback button

3× audio jacks

Dimensions

24.4 × 21.8 cm

Micro ATX format

Additional information

Brand

ASROCK
Model

ASRock
Warranty period for registration number (months)

36
Manufacturer

ASROCK
Warranty length (months)

36
Processed

Approved
Wi-Fi

Yes
RJ-45 (number)

1
Dimensions

244 × 218 mm
Dropshipment - Alza

Yes
USB 2.0 (number)

2
Gigabit LAN

Yes
Wi-Fi standard

802.11a/b/g/n/ac/ax/axe
USB Type C (number)

1
USB 3.0 (number)

3
Analog audio input/output (number)

3
HDMI (number)

1
TDP (W)

125
RAM type

DDR5
Chipset

Intel B860
Number of memory slots

2
DisplayPort (number)

1
Motherboard format

MATX
PCI Express X1 (number)

1
PCI Express X16 (number)

1
RAID controller

Yes
Max RAM size (GB)

128
Processor socket

1851
M.2 port (for expansion cards)

No
SATA III (number)

4
M.2 port (number)

2
PCI Express X4 (number)

1
