ASRock B860M-H2 / Intel B860 / LGA1851 / 2x DDR5 / 2x M.2 / HDMI / DP / USB-C / mATX

Description

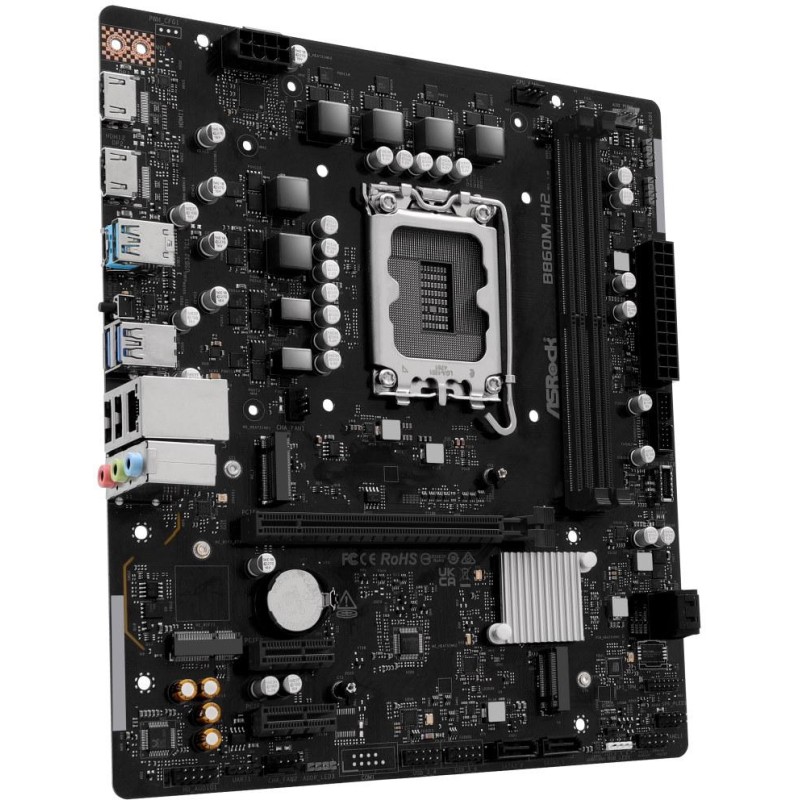

ASRock B860M-H2

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for Intel Core Ultra 2 series processors

LGA1851 socket

Chipset

Intel B860

Memory

2× DDR5 memory slots, support up to 128 GB

DDR5 support up to 8333+(OC) MT/s

Dual-channel memory architecture

Support non-ECC, unbuffered memory

Intel Extreme Memory Profile (XMP) 3.0x support

CUDIMM support

Slots

Intel CPU

1× PCIe 4.0 x16 slot

Intel B860 chipset

2× PCIe 4.0 x1 slots

Graphic arts

2× HDMI 2.1 port, supporting max. resolution 4K at 120 Hz

Intel Xe LPG architecture

Storage

Intel CPU

1× Blazing M.2 slot, M Key, for 2280 type units (PCIe 5.0 x4 mode)

Intel B860 chipset

1× Hyper M.2 slot, M Key, for 2280 type units (PCIe 4.0 x4 mode)

4× SATA 6Gb/s ports

Intel Volume Management Device (VMD) support

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA drives

USB

1× USB-C 3.2 Gen2×2 port on the back panel

1× USB-C 3.2 Gen1 port available via internal USB connector

5× USB 3.2 Gen1 ports (3 ports on the back panel, 2 ports available via internal USB connector)

6× USB 2.0 ports (2 ports on the back panel, 4 ports available via internal USB connectors)

Audio

Realtek ALC897 Codec

7.1 channel High Definition Audio

HIND

1× Realtek RTL8111H Gigabit LAN controller

Internal connectors

1× SPI TPM connector

1× speaker connector and Power LED

1× RGB LED strip connector

3× addressable LED strip connector

1× 4pin CPU fan connector

2× 4pin chassis fan connector

1× 4pin water cooling pump fan connector

1× 24pin ATX main power connector

1× 8pin 12V power connector

2× USB 2.0 connector (supports 4× USB 2.0 port)

1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 ports)

1× USB-C 3.2 Gen1 front panel connector

1× M.2 slot, E key for Wi-Fi module (not included)

Rear panel ports

2× HDMI

1× USB-C 3.2 Gen2×2

3× USB 3.2 Gen1 (USB 3.0)

2× USB 2.0

1× RJ-45

1× BIOS Flashback button

3× audio jacks

Dimensions

24.4 × 21.1 cm

Micro ATX format
