ASRock B650I Lightning WiFi / AMD B650 / AM5 / 2x DDR5 DIMM / 2x M.2 / HDMI / USB-C / WiFi / Mini-ITX

ASRock B650I Lightning WiFi / AMD B650 / AM5 / 2x DDR5 DIMM / 2x M.2 / HDMI / USB-C / WiFi / Mini-ITX

172,01 €

SKU: MotherboardsASROCK-B650I-LIGHTNI-21819 Category: Tag:

Description

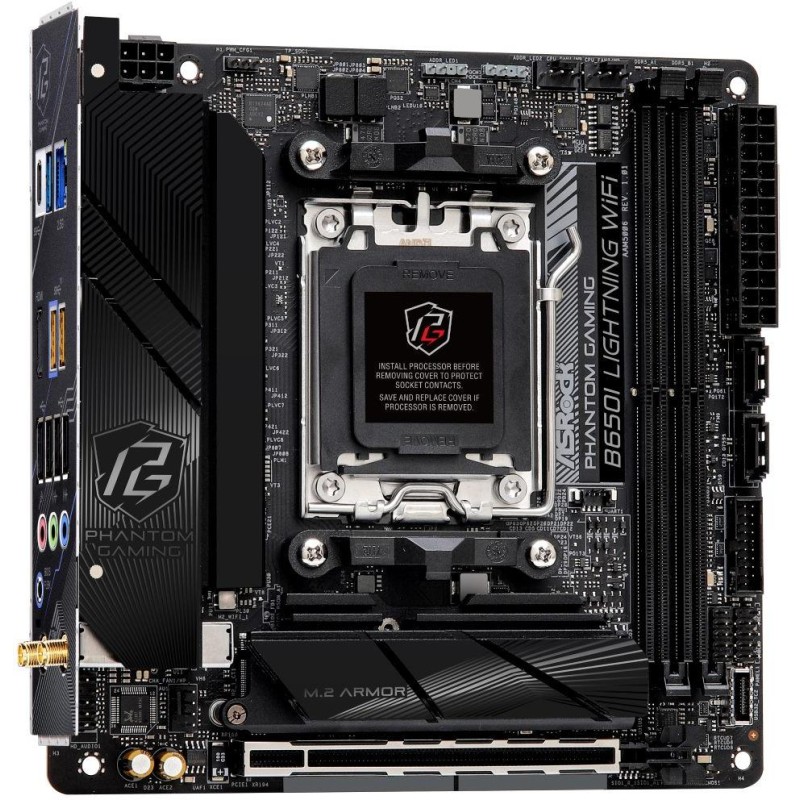

ASRock B650I Lightning WiFi

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for AMD Ryzen 7000 and 8000 series processors (Socket AM5)

Chipset

AMD B650

Memory

2× DDR5 memory slots, support up to 96 GB

DDR5 support up to 7200+ (OC) MHz

Dual-channel memory architecture

ECC/non-ECC support, unbuffered

Support for AMD EXtended Profiles for Overclocking (EXPO)

Extreme Memory Profile (XMP) support

Slots

AMD CPU

1× PCIe 4.0 x16 slot

Graphic arts

1× HDMI port, supporting max. resolution 4K at 120 Hz

Storage

AMD CPU

1× Blazing M.2 slot, M Key, for 2280 type units (PCIe 5.0 x4 mode)

AMD B650 chipset

1× Hyper M.2 slot, M Key, for 2280 type units (PCIe 4.0 x4 mode)

2× SATA 6Gb/s ports

RAID 0 and RAID 1 support for SATA drives

RAID 0, RAID 1, and RAID 10 support for M.2 NVMe drives

USB

1× USB-C 3.2 Gen2 port on the back panel

3× USB 3.2 Gen2 ports on the back panel

1× USB-C 3.2 Gen1 port available via internal USB-C connector

2× USB 3.2 Gen1 (USB 3.0) ports available via internal USB connector

6× USB 2.0 ports (4 ports on the back panel, 2 ports available via internal USB connector)

Audio

Realtek ALC897 Codec

7.1 channel High Definition Audio

Nahimic audio

HIND

1× Dragon RTL8125BG 2.5Gigabit LAN controller

Phantom Gaming LAN Software support

WLAN/Bluetooth

Wi-Fi 802.11a/b/g/n/ac/ax

Dual Band (2.4 GHz, 5 GHz, 6 GHz)

MU-MIMO support

Bluetooth 5.2

Internal connectors

2× addressable LED strip connector

2× 4pin CPU fan/CPU water cooling fan connector

1× 4pin case fan/CPU water cooling fan connector

1× 24pin ATX main power connector

1× 8pin 12V power connector

1× front panel audio connector

1× USB 2.0 connector (supports 2× USB 2.0 port)

1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 ports)

1× USB-C 3.2 Gen1 front panel connector

Rear panel ports

2× Wi-Fi antenna connector

1× HDMI

1× USB-C 3.2 Gen2

3x USB 3.2 Gen2 (USB 3.1 Gen2)

4× USB 2.0

1× RJ-45

1× BIOS Flashback button

3× audio jacks

Dimensions

17 × 17 cm

Mini-ITX format

Additional information

Brand

ASROCK
Model

ASRock
Warranty period for registration number (months)

36
Manufacturer

ASROCK
Warranty length (months)

36
Processed

Approved
Wi-Fi

Yes
RJ-45 (number)

1
Dimensions

170 × 170 mm
Dropshipment - Alza

Yes
USB 2.0 (number)

4
Gigabit LAN

Yes
Wi-Fi standard

802.11a/b/g/n/ac/ax
USB Type C (number)

1
Analog audio input/output (number)

3
HDMI (number)

1
TDP (W)

170
USB 3.1 (number)

3
RAM type

DDR5
Chipset

AMD B650
Number of memory slots

2
Motherboard format

Mini-ITX
PCI Express X16 (number)

1
RAID controller

Yes
Max RAM size (GB)

96
Processor socket

AM5
M.2 port (for expansion cards)

No
SATA III (number)

2
M.2 port (number)

2
