ASRock B550M Phantom Gaming 4 / AMD B550 / AM4 / 4x DDR4 DIMM / HDMI / DP / 2x M.2 / mATX

Description

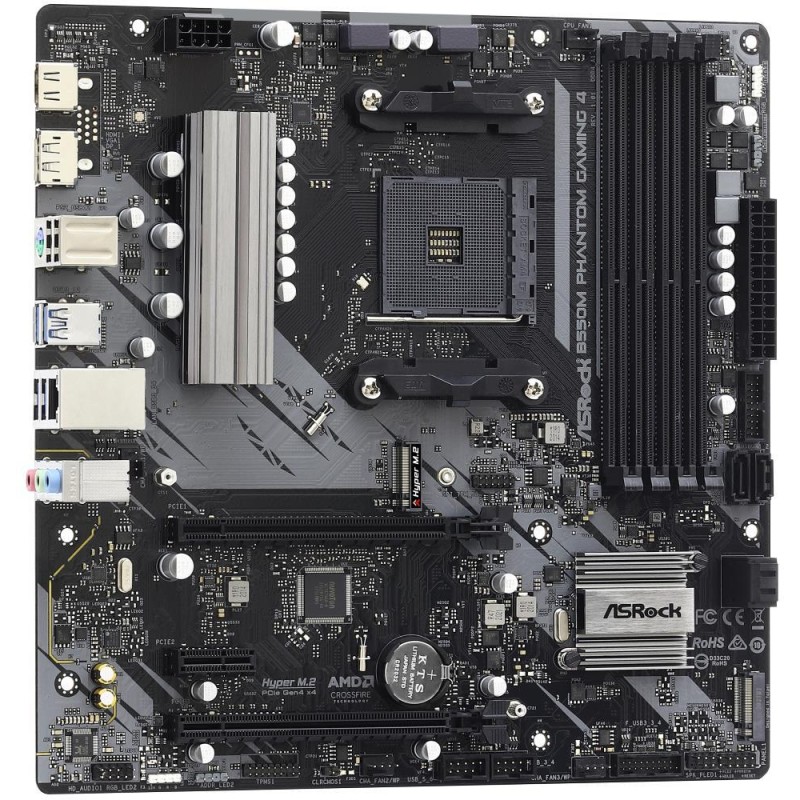

ASRock B550M Phantom Gaming 4

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for AMD Ryzen 3rd generation and higher processors (AM4 socket)

Does not support AMD Athlon processors

Chipset

AMD B550

Memory

4x DDR4 memory slots, support up to 128 GB

Dual-channel memory architecture

Support DDR4 4733+ (OC)/ 4666 (OC)/ 4600 (OC)/ 4533 (OC)/ 4466 (OC)/ 4400 (OC)/ 4333 (OC)/ 4266 (OC)/ 4200 (OC)/ 4133 (OC)/ 4000 (OC)/ 3866 (OC)/ 3800 (OC)/ 3733 (OC)/ 3600 (OC)/ 3466 (OC)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz

Ryzen CPU (Matisse and Vermeer) supports DDR4 4533+ (OC)/ 4466 (OC)/ 4400 (OC)/ 4333 (OC)/ 4266 (OC)/ 4200 (OC)/ 4133 (OC)/ 4000 (OC)/ 3866 (OC)/ 3800 (OC)/ 3733 (OC)/ 3600 (OC)/ 3466 (OC)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz

ECC and non-ECC support, unbuffered

Ryzen (Picasso) CPU only supports non-ECC, no cache (ECC supported only on PRO versions)

Intel Extreme Memory Profile (XMP) support

Slots

1x PCIe 3.0 x16 slot

Ryzen CPUs (Vermeer and Matisse) support PCIe 4.0

Ryzen (Picasso) CPU supports x8 mode

1x PCIe 3.0 x16 slot (supports x4 mode)

1x PCIe 3.0 x1 slot

Graphic arts

1x HDMI port, supporting max. resolution 4096 x 2160 at 60 Hz

1x DisplayPort port, supporting max. resolution 5120 x 2880 at 120 Hz

Multi-GPU

AMD Quad CrossFireX and CrossFireX support

Storage

4x SATA 6Gb/s ports

RAID 0, RAID 1 and RAID 10 support

1x Hyper M.2 slot, M Key, for 2280 type units (PCIe 3.0 x4 mode)

Ryzen CPU (Matisse) supports PCIe 4.0 x4 mode

1x M.2 slot, M Key, for type 2280 drives (SATA and PCIe 3.0 x2 mode)

USB

6x USB 2.0 ports (2 ports on the back panel, 4 ports available via internal USB connectors)

8x USB 3.2 Gen1 (USB 3.0) ports (4 ports on the back panel, 4 ports available via internal USB connectors)

Audio

Realtek ALC887/897 Codec

7.1 channel High Definition Audio

HIND

1x Realtek RTL8111H Gigabit LAN controller

Internal connectors

4x SATA 6Gb/s connector

1x Hyper M.2 slot, M Key

1x M.2 slot, M Key

1x SPI TPM connector

1x speaker connector and Power LED

2x RGB LED strip connector

2x addressable LED strip connector

1x 4-pin CPU fan connector

3x 4-pin chassis fan/water cooling pump connector

1x 24-pin ATX main power connector

1x 8-pin 12V power connector

1x front panel audio connector

2x USB 2.0 connector (supports 4x USB 2.0 port)

2x USB 3.2 Gen1 (USB 3.0) connector (supports 4x USB 3.2 Gen1 port)

Rear panel ports

1x PS/2 keyboard and mouse combo port

1x HDMI

1x DisplayPort

4x USB 3.2 Gen1 (USB 3.0)

2x USB 2.0

1x RJ-45

3x audio jacks

Dimensions

24.4 x 24.4 cm

Micro ATX format
