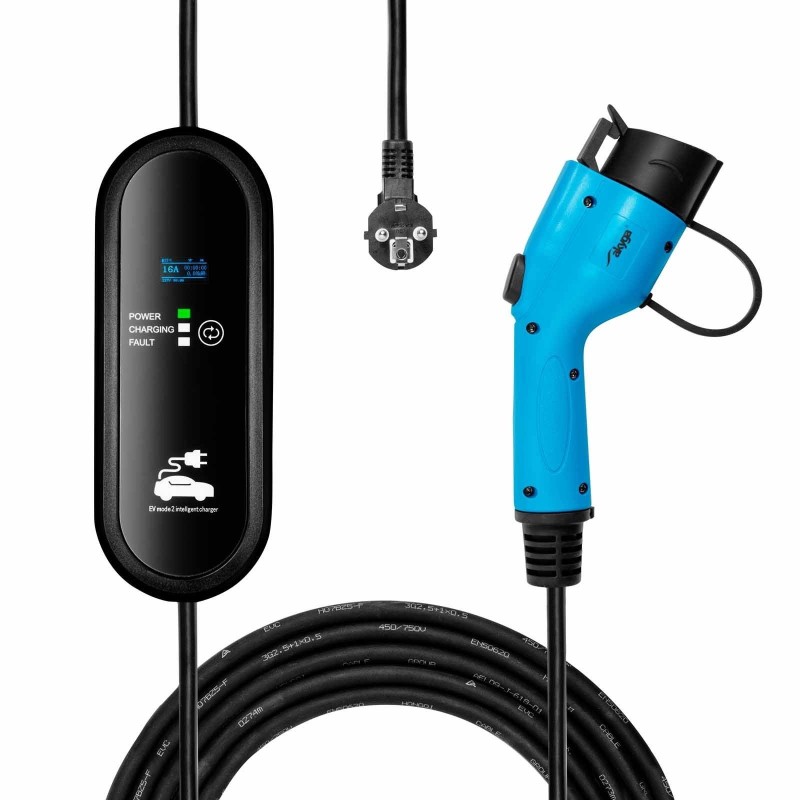

Akyga Power cable for electric vehicles Type 1, LCD display, Control Box, 1-phase 16A 3.8kW, length 5m

Description

The electric car charger is equipped with a Schuko plug (CEE 7/7).
This standard is used in most European countries, making the charger a practical and universal solution for users of older electric cars or vehicles imported from overseas.

The AK-EC-18 electric car charger also has a 5-meter cable.
This provides sufficient flexibility when connecting the vehicle to charging.
Combined with the charger’s compact design, this device is an ideal support for electric car owners.

The heart of the charger is the easy-to-use ControlBox, which monitors and displays current charging parameters on the LCD display.
A This includes data such as charging current, voltage, power, energy consumed, charger temperature and charging time.
In addition, the user can adjust the charging power by selecting one of the available current values (8 A, 10 A, 13 A, 16 A), with the maximum charging power reaching 3.8 kW.

The charger is also equipped with comprehensive protections (OVP, OCP, OPP, OTP, SCP) that protect the device and the car battery from damage.
There is also a handle on the cover that allows you to practically hang the charger, for example in the garage.

Product Type: Electric Car Accessories
Padlock hole: Yes
Supply voltage: 110-250V / 50/60Hz
Number of phases: 1 phase
Maximum current: 16 A
Maximum power: 3.8 kW
Grounding: Yes
Flame resistance: UL94V-0
IP rating: IP54

Cable length: 5 m
Cable plug #1: CEE 7/7
Plug Cable #2: Type 1 (J1772) female connector
Plugs: Silver
Cable material: Copper
Wire cross-section: 3 x 2.5 mm2 + 1 x 0.5 mm2

Packaging:

Size x:43 cm

Dimensions: 40 cm

Size: 7 cm

Weight:2.24 kg
