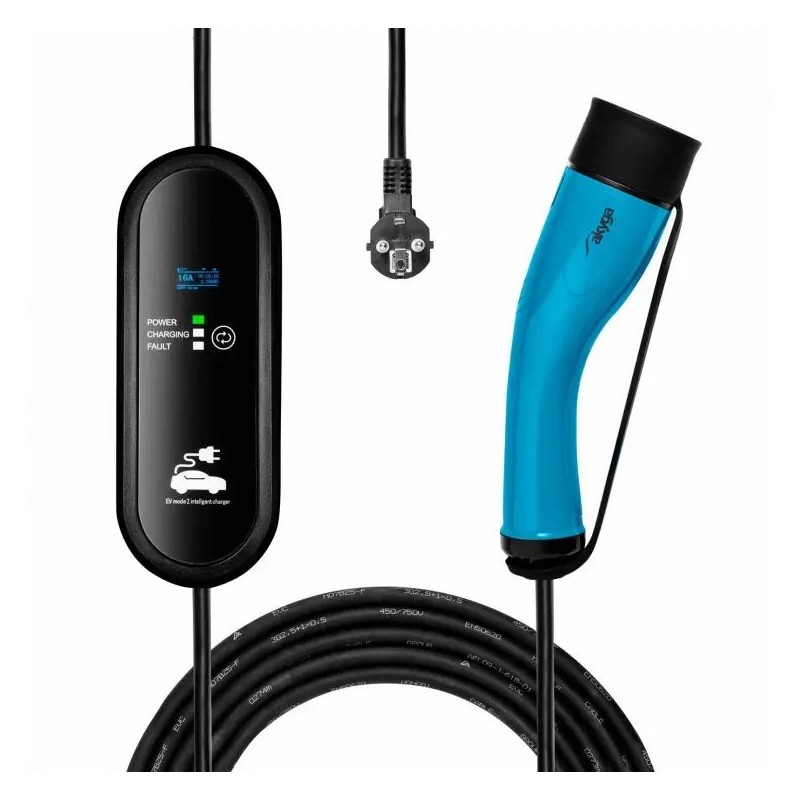

Akyga Power cable for electric vehicles Type 2, LCD display, Control Box, 1-phase 16A 3.8kW, length 5m

Description

This standard has been adopted by the European Union and is the most popular connector for electric vehicles available on the European market.

The portable EVSE AK-EC-19 charger is equipped with a Schuko plug (CEE 7/7), which provides the electric vehicle user with complete independence and allows charging the vehicle at home.
The convenience of use is also enhanced by the 5-meter cable, which makes it easier to connect the vehicle to power.

The central point of the charger is the ControlBox control panel.
It informs about the charging status and displays key parameters on the LCD display, including charging current, voltage, energy consumed, charger temperature and charging time.
The device offers selectable charging currents of 8 A, 10 A, 13 A and 16 A, allowing control over the power at which the vehicle will be charged.
This allows you to adapt the charging parameters to the possibilities of the electrical network and the vehicle.

The AK-EC-19 charger is designed for reliable operation in harsh conditions, as confirmed by its IP54 protection rating.
Its solid construction ensures resistance to dirt and moisture, which is crucial for the safety and durability of the device.

Product Type: Electric Car Accessories
Padlock hole: No
Supply voltage: 110-250V / 50/60Hz
Number of phases: 1 phase
Maximum current: 16 A
Maximum power: 3.8 kW
Grounding: Yes
Flame resistance: UL94V-0
IP rating: IP54

Cable plug #1: CEE 7/7
Plug #2 cable: Type 2 (IEC 62196-2) female connector
Plugs: Silver
Wire cross-section: 3 x 2.5 mm2 + 1 x 0.5 mm2
Insulation material: TPE
Material: ABS
Product color: Blue
Display: Yes
MTBF: 10000 hours

Packaging:

Size x:43.5 cm

Dimensions: 40 cm

Size: 10 cm

Weight:2.34 kg
