Yealink UVC85 video conference camera, 4K, 12x optical zoom, field of view 90°, Auto Framing

Yealink UVC85 video conference camera, 4K, 12x optical zoom, field of view 90°, Auto Framing

1 026,73 €

SKU: VideoconferencingYEALINK-UVC85-VIDEO--40847 Category: Tag:

Description

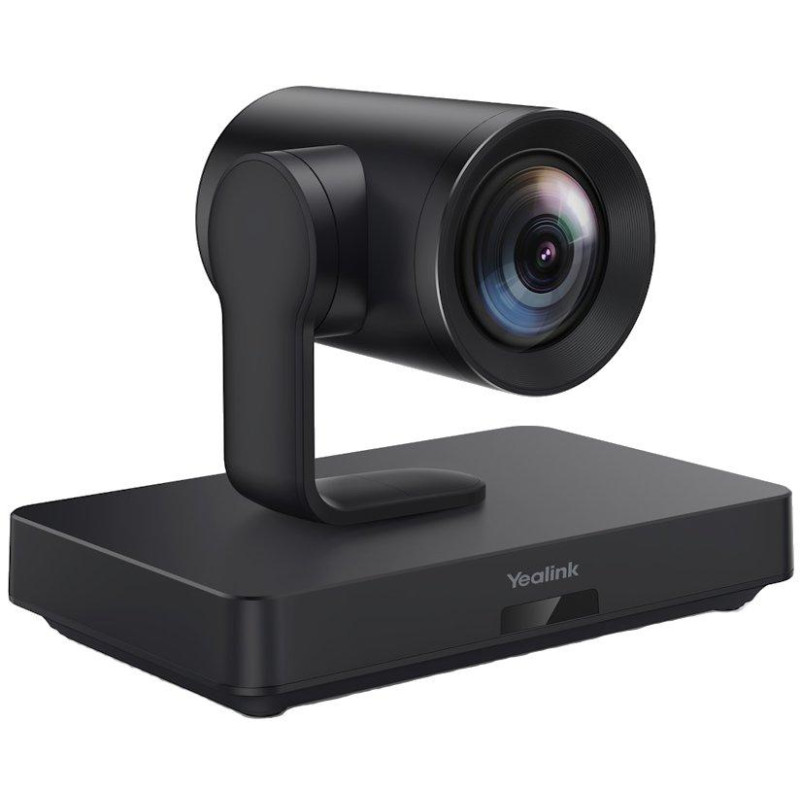

Yealink UVC85 4K Conference Camera

Professional 4K conference camera with advanced features for medium and large conference rooms.

The Yealink UVC85 combines a 4K Ultra HD sensor with a powerful 12x optical zoom and 3x digital zoom to perfectly capture every detail in the conference room. The camera is equipped with a mechanical PTZ system with a panning range of ±100° horizontally and -90° to +30° vertically, allowing for full space coverage.

With a 90° wide-angle lens and intelligent Auto-Framing technology, it automatically detects meeting participants and adjusts the shot for optimal presentation. The camera offers flexible control via the VCR20 remote control or Yealink camera control plugin, and is fully compatible with Microsoft Teams and Zoom.

  • 4K Ultra HD resolution with 8MP sensor for crystal clear images
  • 36x total HD zoom (12x optical + 3x digital) to capture every detail
  • Mechanical PTZ with ±100° pan and -90°/+30° tilt range
  • Intelligent Auto-Framing for automatic participant tracking
  • 9 preset positions for quick shot switching
  • Rich interface with USB 3.0, HDMI out, Ethernet and VCH port
  • Support PoE power supply (802.3at) or DC adapter 48V/0.7A
  • Compatibility with Microsoft Teams Room and Zoom Rooms

Flexible installation and connection
The camera offers several installation options – tabletop, TV mount (0-146 mm thick), wall mount at a height of 1.55-1.85 m or ceiling mount. The complete installation kit includes all necessary accessories including a 2.5 m USB cable and a 7.5 m Ethernet cable.

Audio integration and device management
The UVC85 can be connected to Yealink audio devices such as CP50 or CPE40 via the VCH port for a complete audiovisual solution. It supports unified management via Yealink RoomConnect or cloud services for easy maintenance by the IT department.

Advanced optical properties
Effective focal length f=3.4-40.4 mm with aperture F/1.8-F/3.6 ensures excellent light output. Autofocus, exposure and white balance with manual adjustment for professional results.

BASIC SPECIFICATIONS

Sensor: 8MP camera with 4K output

Field of view: 90° DFOV, 80° HFOV, 50° VFOV

Zoom: 12x optical, 3x digital (total 36x HD)

PTZ range: pan ±100°, tilt +30°/-90°

Focal length: f=3.4-40.4 mm

Aperture: F/1.8-F/3.6

Interface: USB 3.0 USB-B, USB 2.0 USB-A, Ethernet, VCH, HDMI out, 3.5mm line in/out

Power supply: DC 48V/0.7A or PoE 802.3at

Dimensions (sleeping): 200 × 125 × 172.6 mm

Dimensions (working): 200 × 125 × 151 mm

Weight: 1.29 kg

Operating temperature: 0 to +40 °C

Additional information

Brand

YEALINK
Model

Yealink
Color

Black
Warranty period for registration number (months)

24
Manufacturer

YEALINK/YEASTAR
Warranty length (months)

24
Processed

Approved
Weight (g)

1290
RJ-45 (number)

1
Dimensions

200 × 151 × 125 mm
USB 2.0 (number)

1
Camera light

No
Angle of view (°)

90
Camera image resolution (px)

3840 × 2160
Built-in microphone

No
USB 3.0 (number)

1
Analog audio input/output (number)

1
HDMI (number)

1
Tripod thread

No
