Yealink MVC400 Videoconference Endpoint/ Full HD, 30 FPS/ MS Teams, Skype for Business

Description

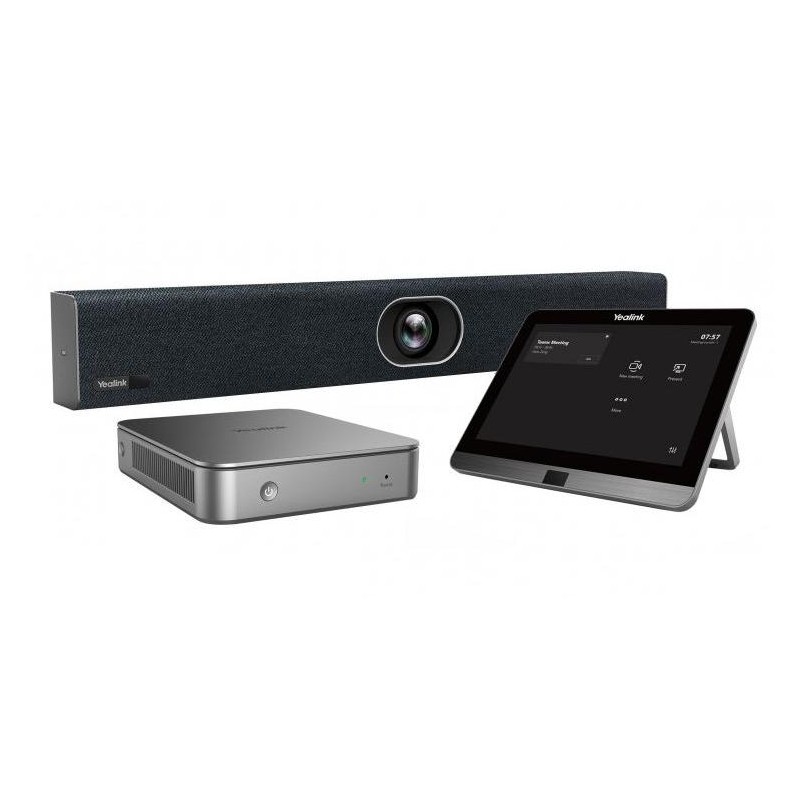

Yealink MVC400

A video conferencing endpoint that is suitable for small and medium-sized meeting rooms and is fully integrated with Microsoft Teams and Skype for Business communication systems. The set uses the UVC40 device, which has a 20 Mpx camera with a 133° field of view, eight microphones and a 5 W speaker. The electric camera lens cover automatically opens when the video conference starts and closes again after it ends, ensuring your privacy. Another advantage is the face detection or sound localization function, when the camera can automatically recognize and capture the currently speaking meeting participant. The entire conference can be controlled using an 8″ touch tablet, which includes several tools for easy meeting management in the Microsoft Teams environment. During a video conference, you can use wireless content sharing in Full HD quality for even greater comfort. Just connect the Yealink WPP20 and share content from your laptop with one click. In addition, there is also the option of wired content sharing by connecting to the USB-C or HDMI port.

BASIC SPECIFICATIONS

MCore Mini PC

Processor: Intel Core i5, 4 cores

RAM size: 8 GB (2x 4 GB)

HDD capacity: 128 GB SSD

Interface: Wi-Fi, Bluetooth, 2x HDMI output, 1x Yealink VCH (RJ-45), 4x USB 3.0, 1x Gbit RJ-45

Dimensions: 197 x 168 x 39 mm

Weight: 1.35 kg

Color: silver

MTouch II

Display diagonal: 8″

Resolution: 1280 x 800 px

Equipment: Wi-Fi AP, flip-up stand

Interface: 1x HDMI input, 1x USB-C input, 1x 3.5 mm jack

Dimensions: 202 x 151 x 100 mm

Weight: 1 kg

Color: silver – black

UVC40

Sensor resolution: 20.0 Mpx

Sensor chip: 1″ CMOS

Zoom: 8x e-PTZ

Audio: 8x built-in microphone, 5 W speaker

Interface: 1x USB 2.0, 1x 3.5 mm jack input, 1x Yealink microphone (RJ-45)

Dimensions: 600 x 82 x 68 mm

Weight: 2.56 kg

Color: silver – black

---

Wiring diagram:
