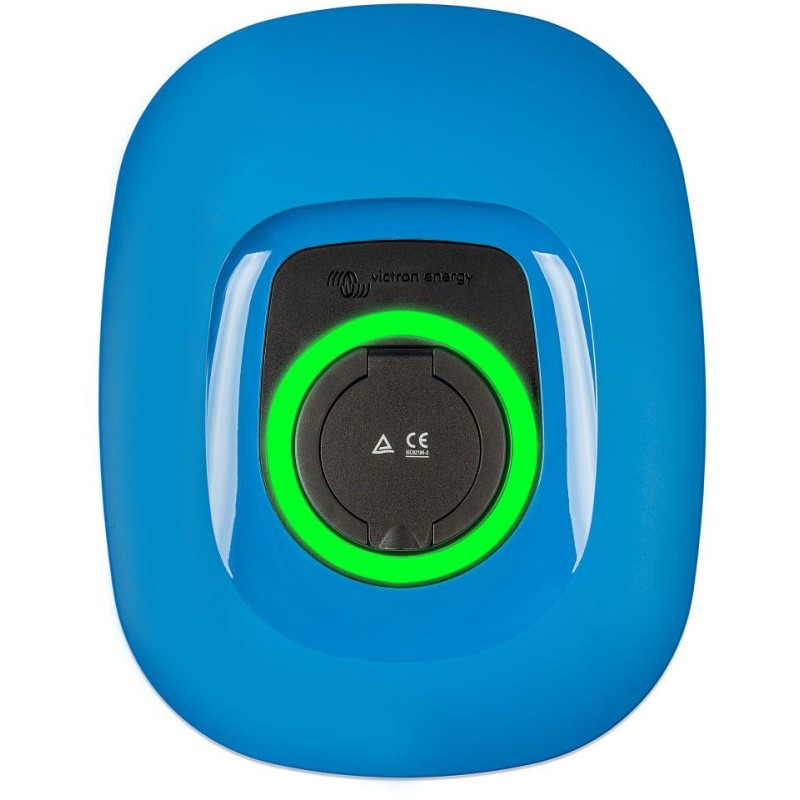

Victron EV charging station for electric cars NS, 22kW, 32A, 3f/1f, Type 2, without cable

Description

Victron EV Charging Station NS 22 kW High-performance EV charging station provides a maximum of 22 kW AC in three-phase mode or 7.3 kW in single-phase mode. Wi-Fi 802.11b/g/n communication for configuration and monitoring The internal Wi-Fi module can be configured in access point mode or station mode for initial setup and monitoring. Light ring for quick device status display Fully programmable RGB light ring around the charging port for quick device status display. It can be programmed from the web interface to display different light effects according to the current status (disconnected, charging, fully charged, etc.). The aim is to help the user see the current status from a distance. Three working modes 1. Manual mode allows a configurable output current between 6-32 A. The charging power can be regulated in different ways: via the web interface, from the GX and VRM devices and via VictronConnect. Allows you to manually start or stop the charging process when the vehicle is connected to the charging station. 2. Automatic mode to ensure maximum efficiency of the PV system. Detects when excess power is available and uses only this power to charge the vehicle. 3. Scheduled mode to enable automatic charging at custom time intervals. The scheduler allows charging at different time intervals, for example at certain times of the night when grid power is cheaper. In addition to the start and end times, various parameters can be defined, such as the charging current and interval. Automatic mode to ensure maximum efficiency of the PV system Detects when excess power is available and uses only this power to charge the vehicle. Integration with GX devices The EV charging station can be configured and monitored from the GX screen device and the remote console. Integration with VRM Several options are available on the VRM portal: real-time reports, custom reports for configurable time periods or advanced features such as remote firmware updates. For more information, please refer to the attached datasheet or online manual. This device is technically identical to the Victron Energy EV Charging station, without a built-in LCD display and has a new modern design, available in 3 colors (blue standard and white or black as optional accessories). Detailed online manual with a description of all functions: English version English PDF version Czech version (translate.google translation) BASIC SPECIFICATIONS Rated power: 22 kW Input voltage: AC 170-265 V Rated charging current: 32 A per phase Output current range: 6-32 A Connector: IEC 62196 Type 2 Wi-Fi standards: 802.11b/g/n (2.4 GHz only) Power terminals: 6-10 mm2 / AWG 10-8 Protection category: IP44 Weight: 3 kg Dimensions: 372 × 292 × 122 mm
