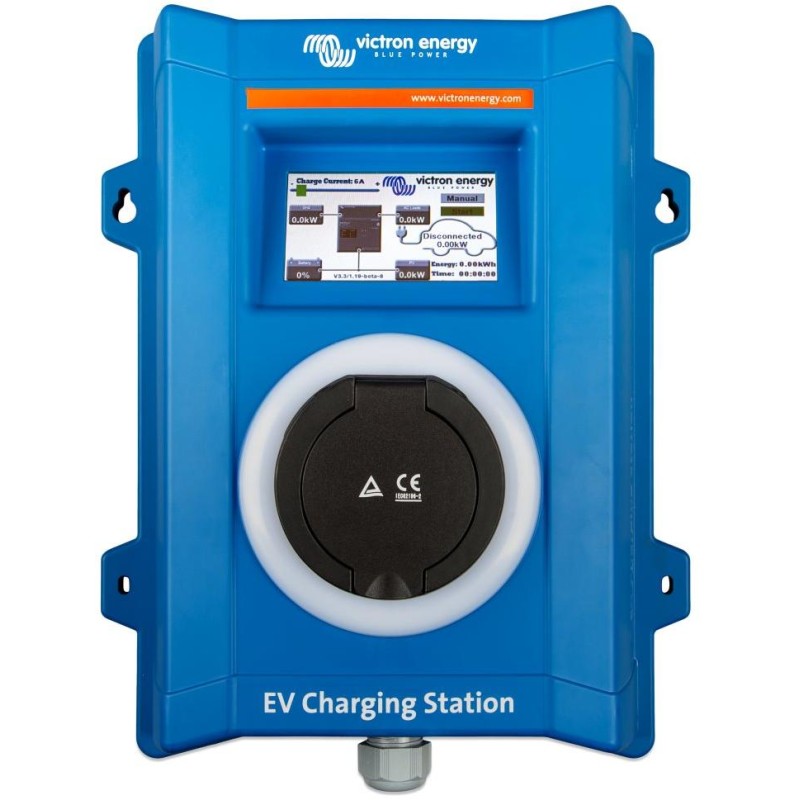

Victron EV charging station for electric cars, 22kW, 32A, 3f/1f, Type 2, LCD display, without cable

Description

Victron EV Charging Station LCD 22 kW High-performance EV charging station delivers a maximum of 22 kW AC in three-phase mode or 7.3 kW in single-phase mode. 802.11b/g/n Wi-Fi communication for configuration and monitoring The internal Wi-Fi module can be configured in access point mode or station mode for initial setup and monitoring. LCD Touch Screen Features a 4.3″ LCD touch screen for monitoring and control. Light ring for quick device status display Fully programmable RGB light ring around the charging port for quick device status display. It can be programmed from the web interface to display different light effects according to the current status (disconnected, charging, full, etc.). The aim is to help the user see the current status from a distance. Two working modes Manual mode allows you to configure the output current between 6-32 A. The charging power is controlled in two ways: using the slider on the LCD touch screen, or using the web page. Allows you to manually start or stop the charging process when the vehicle is connected to the charging station. Automatic mode for maximum efficiency of the PV system Detects when excess power is available and only uses this power to charge the vehicle. Integration with GX devices The EV charging station can be configured and monitored from the GX screen device and the remote console. Integration with VRM Several options are available on the VRM portal: real-time reports, custom reports for configurable time periods or advanced features such as remote firmware updates. For more information, see the attached datasheet or online manual. Detailed online manual with a description of all functions: English version English PDF version Czech version (translate.google translation) BASIC SPECIFICATIONS Rated power: 22 kW Input voltage: AC 170-265 V Rated charging current: 32 A per phase Output current range: 6-32 A Connector: IEC 62196 Type 2 Wi-Fi standards: 802.11b/g/n (2.4 GHz only) Power terminals: 6-10 mm2 / AWG 10-8 Protection category: IP44 Weight: 3 kg Dimensions: 390 × 300 × 150 mm
