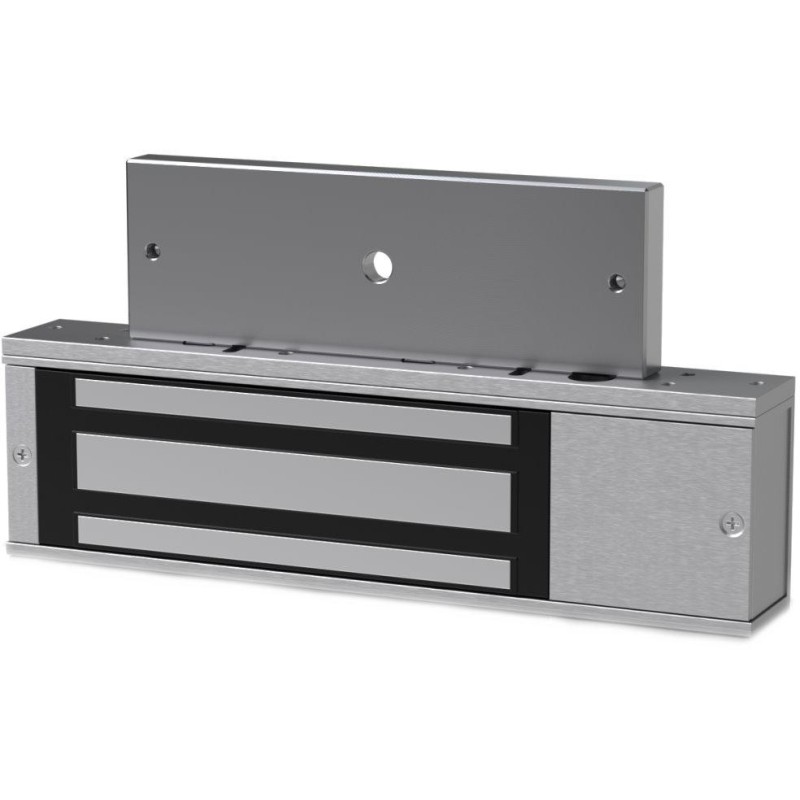

Ubiquiti UniFi Access Magnetic Lock 540 kg – Magnetic lock, lock holding force 540 kg

Description

Ubiquiti UniFi Access Magnetic Lock 540 kg Fail-safe magnetic lock that connects to the UniFi access node (UA Hub). Resistance up to 540 kg (lock holding force) Can be installed on a metal or wooden door frame Signaling LED – green (unlocked), red (locked) Material – aluminum, steel video {max-width: 100%; height: auto;} Your browser does not support HTML5 video. BASIC SPECIFICATIONS Compatibility: Ubiquiti UA-G2-SK-Pro, UA-G2-SK, EAH-8, UA-Hub Power supply: DC 12 V (500 mA ± 10%) Lock holding force: 540 kg Dimensions: 266 × 67.5 × 40 mm (lock) 266 × 40 × 6 mm (smaller lock face/cover) 185 × 61 × 16 mm (larger lock face/cover) Weight: 2900 g (lock) 145 g (smaller lock face/cover) 1400 g (larger lock face/cover) Connection to UniFi Access Hub: Lock 12V/NC: connect to the Power Lock Relay NC terminal on the UA-Hub Lock 12V/COM: connect to the Powered Lock Relay COM terminal on the UA-Hub DPS/+: connect to the terminal DPS+ on UA-Hub DPS/-: connect to DPS- terminal on UA-Hub Manual (assembly instructions): Ubiquiti UniFi Access Magnetic Lock 540 kg Assembly instructions (video):
