Teltonika LTE Wi-Fi Router RUT241, 2.4 GHz, 802.11b/g/n, 2/3/4G, LTE, 1x DI/DO

Description

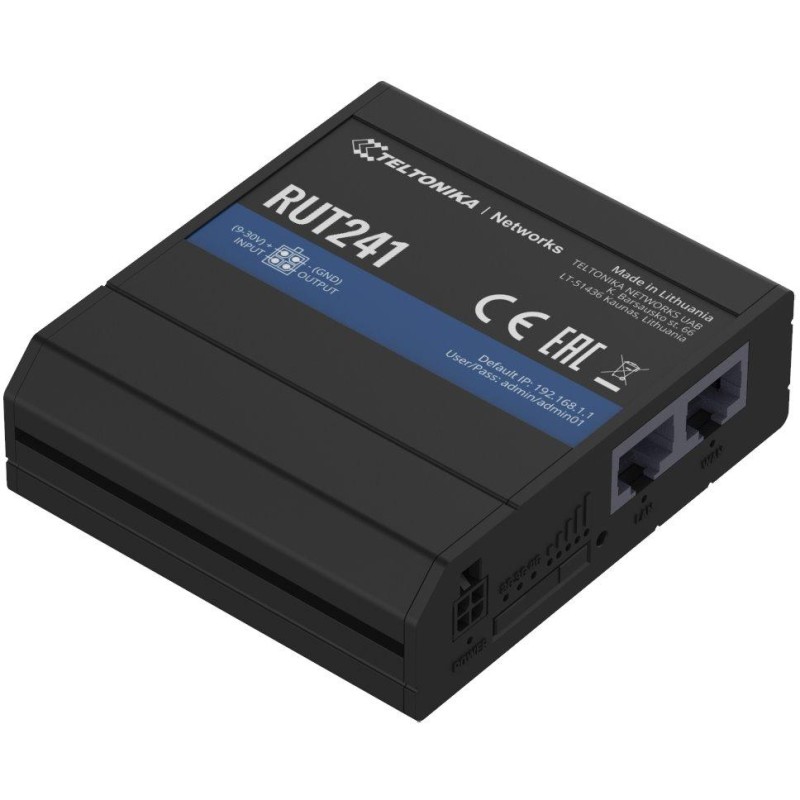

Teltonika RUT241

---

The RUT241 is the equivalent of the RUT240 (code NARTEL0001) . This version has a different but comparable chipset, a MediaTek MT7628 CPU and 128 MB DDR2 RAM.

---

RUT241 is a compact, cost-effective and powerful industrial LTE router for professional applications. The router provides high performance for mission-critical mobile communications.

The router will find use, for example, in devices that need to be remotely monitored, such as vending machines, sensors in the energy sector, or Smart City projects.

Mobile part

– Module: 4G (LTE) Cat 4 (up to 150 Mbps), 3G (up to 42 Mbps), 2G (up to 236.8 kbps)

– Status: Signal strength (RSSI), EC/IO, RSCP, SINR, RSRP and RSRQ

– SMS notifications

Wireless part

– Wireless modes: IEEE 802.11b/g/n, AP and Station

– Encryption: WPA2-Enterprise – PEAP, TLS, TTLS, AES-CCMP, TKIP, Auto Cipher modes, Client separation

Ethernet part

– 1x WAN 10/100 Mb/s (auto MDI/MDIX)

– 1x LAN 10/100 Mb/s (auto MDI/MDIX)

Network part

– Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2)

– Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet, SMNP, MQTT, Wake On Lan (WOL)

– VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers (allow proper routing of VoIP packets).

– Firewall: defines rules for communication (port forwarding, traffic rules, etc.)

– Network backup: backup with failover (connection/power). VRRP, cellular, network or Wi-Fi.

– Load balancing: optimizes network traffic.

VPN

– OpenVPN: encrypted VPN tunnel between host stations and server, 12 encryption methods

– OpenVPN encryption: DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC

– IPsec: IKEv1, IKEv2, support for up to 4 VPN IPsec tunnels (instances) with five encryption methods (DES, 3DES, AES128, AES192, AES256)

– GRE: GRE tunnel (Generic Encapsulation Protocol)

– PPTP, L2TP: client/server services can be run simultaneously

– Stunnel: an encrypted network tunnel, mainly for programs that do not support SSL. It allows connecting two networks via an encrypted TCP tunnel, or securing the operation of unencrypted protocols or daemons such as IMAP, MySQL, POP, IRC, and others. It adds TLS encryption functionality to existing clients/servers without any code changes.

– SSTP: SSTP protocol support

Firmware customization

– Operating system: RutOS (OpenWrt based Linux OS)

– Supported programming languages: Busybox shell, Lua, C, C++

– Development tools: GPL package (with development environment)

System characteristics

– CPU: Mediatek MT7628, 580 MHz

– RAM: 128 MB, DDR2

– FLASH memory: 16MB SPI Flash

Power supply

– 4pin DC, 9-30V

– passive PoE (not compatible with 802.3af/at)

– consumption less than 5 W

---

For more detailed information, please refer to the enclosed manual, the documents tab or the pagenika-networks.com/view/RUT241″>wiki.teltonika-networks.com/view/ .

---

BASIC SPECIFICATIONS

Standard: IEEE 802.11b/g/n

Data transfer speed: 4G – up to 150 Mbps, 3G – up to 42 Mbps, 2G – up to 236.8 kbps

Antenna: 2x SMA connector (LTE), 1x RP-SMA connector (Wi-Fi)

Ports: 1x RJ-45 LAN, 1x RJ-45 WAN

Frequency band: 2.4 GHz

Security: WPA2-Enterprise, WPA2-PSK, WPA-PSK, WEP, MAC Filter

PoE support: yes, passive

Power supply: DC 9-30V DC

Dimensions: 83 x 74 x 25 mm

---

---

---

---

---
