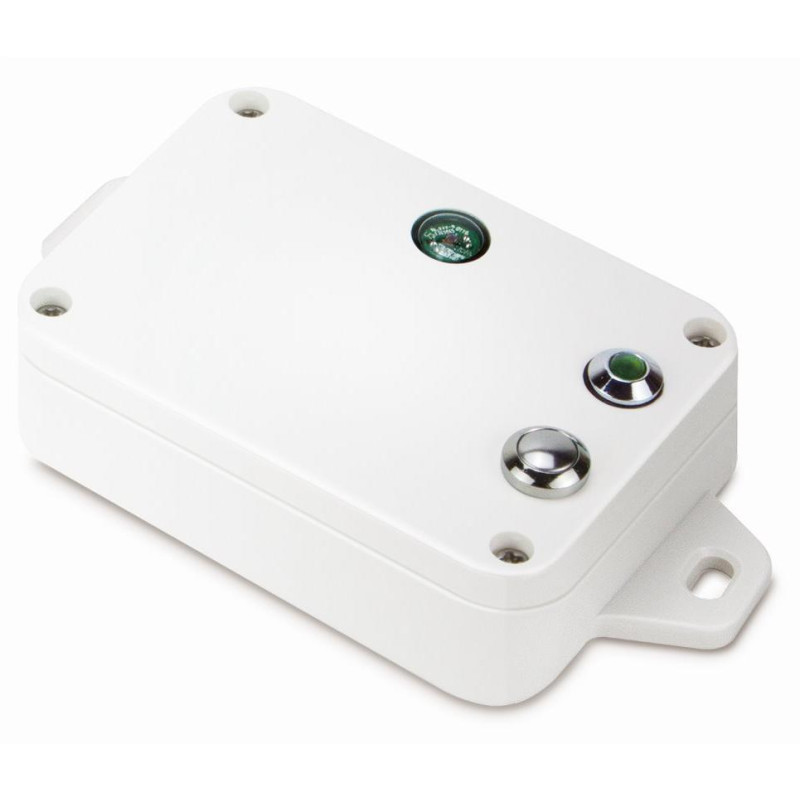

Planet LS200-LG IoT LoRaWAN light sensor, IP65

Description

PLANET LS200-LG-868M

A light level sensor designed for precise monitoring of ambient light with a measurement range from 0.01 to 157,000 lux . Housed in a rugged IP65 housing, it ensures reliability in a variety of environments. Using LoRaWAN connectivity, the sensor provides real-time light level data, making it suitable for intelligent lighting control, energy saving and increased indoor safety.

The LoRaWAN LS100/LS200 series sensors are fully compatible with standard LoRaWAN gateways, such as the PLANET LCG-300 series, which support the LoRaWAN Class A protocol. They are ideal for large-scale IoT applications, including building automation, smart metering, HVAC systems, agriculture, and more. The sensor allows for seamless integration of multiple sensors, making it a perfect choice for retrofitting legacy assets into IoT-enabled systems.

• Light sensor
• Protection standard IP65
• Compatible with LoRaWAN™ Class A

BASIC SPECIFICATIONS

Wireless transmission:

Technology: LoRaWAN

Frequency: 863–870 MHz

TX power: EU868 16 dBm

Rx Sensitivity:

-136 dBm (LoRa, dispersion factor = 12, data rate = 293 bps)

-121 dBm (FSK, frequency deviation = 5 kHz, data rate = 1.2 kbps)

Working mode: OTAA/ABP Class A

Physical properties:

Measurement range: 0.01 lux to 157,000 lux

Power supply: 2× 3.6 V ER14505 AA batteries (not included)

Battery life: up to 5 years

Protection level: IP65

Operating temperature: –20 to +55 °C, humidity up to 90%

Dimensions: 112 × 65 × 32 mm

Weight: 150g
