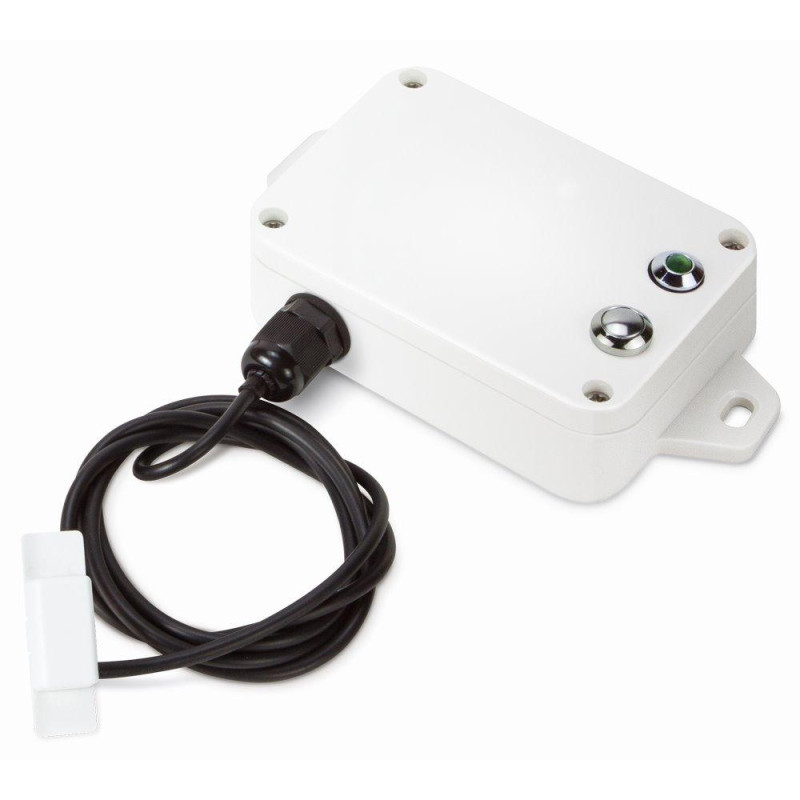

Planet LS100-WL IoT LoRaWAN water leak sensor, IP65

Description

PLANET LS100-WL-868M

This sensor is a key water leak detection device for residential, commercial and industrial environments. With a high waterproof rating of IP65 , it ensures reliable operation in various conditions and quickly detects water leaks in water supply systems. This helps prevent potential damage, reduce waste, increase maintenance efficiency, and promote sustainable water resource management.

The LoRaWAN LS100/LS200 series sensors are fully compatible with standard LoRaWAN gateways, such as the PLANET LCG-300 series, which support the LoRaWAN Class A protocol. They are ideal for large-scale IoT applications, including building automation, smart metering, HVAC systems, agriculture, and more. The sensor allows for seamless integration of multiple sensors, making it a perfect choice for retrofitting legacy assets into IoT-enabled systems.

• Water leak sensor
• Protection standard IP65
• Compatible with LoRaWAN™ Class A

BASIC SPECIFICATIONS

Wireless transmission:

Technology: LoRaWAN

Frequency: 863–870 MHz

TX power: EU868 16 dBm

Rx Sensitivity:

-136 dBm (LoRa, dispersion factor = 12, data rate = 293 bps)

-121 dBm (FSK, frequency deviation = 5 kHz, data rate = 1.2 kbps)

Working mode: OTAA/ABP Class A

Physical properties:

Power supply: 2× 3.6 V ER14505 AA batteries (not included)

Battery life: up to 5 years

Protection level: IP65

Operating temperature: –20 to +55 °C, humidity up to 90%

Dimensions: 112 × 88.2 × 32 mm

Sensor dimensions: 38.5 × 13.7 × 11.89 mm

Weight: 141g
