Planet IPM-8220, IP control of 8x 230V/10A sockets, LED+display, wattmeters, sensor option, rackmount 19/1U

Description

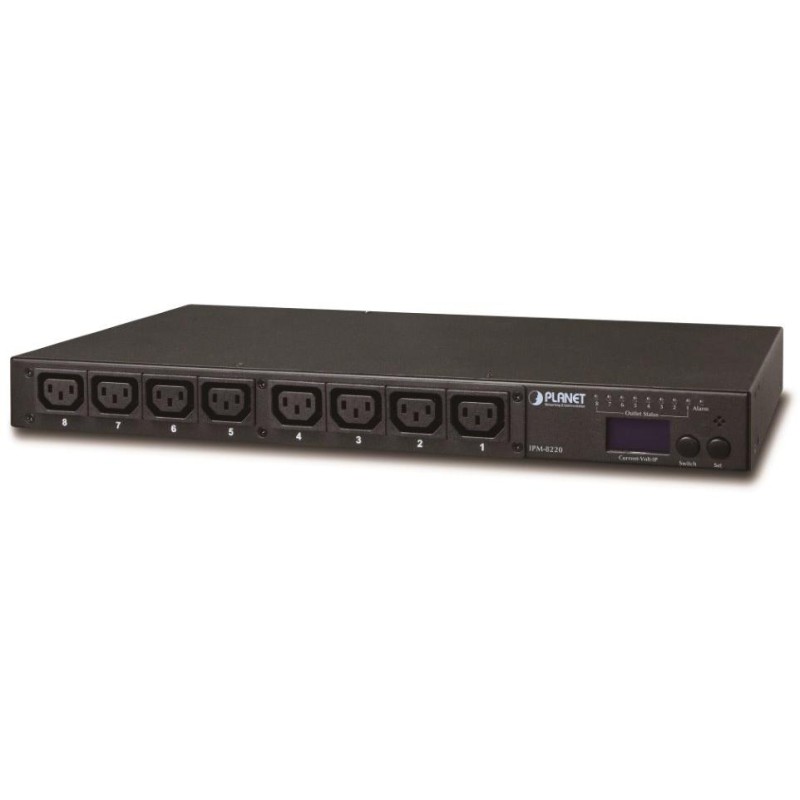

PLANET IPM-8220

IP remote control of 8 IEC 60320(C13) electrical sockets via Web interface. Consumption monitoring for each socket, scheduler, connection of environmental monitoring sensors via external module (IPM-ESB).

Logging of event and power data. Sending of regular and alarm email notifications. Secure access via SSL and HTTPS, SNMP. Status LEDs and display.

BASIC SPECIFICATIONS

Features:

• control via web browser HTTP/HTTPS, Telnet/SSH and terminal
• secure connection using SSL 1024bit
• remote management access restrictions based on source address
• SNMP, Trap support
• wattmeter for each socket separately
• event and power data logging
• calendar of regular automatic events
• sending regular and alarm email notifications

Number of sockets: 8

Connectors:

8 x IEC 60320 C13 (classic power connector for PC monitor)

1 x IEC320 C20 power cord

1 x LAN RJ-45 10/100Base-TX

1 x RJ-11 for connecting the IPM-ESB sensor

2 x RJ-45 serial port

Load: each socket up to 10 A, total 16 A

Switching voltage: AC 100-240 V, 50/60 Hz

Fuse: 16 A

Design: desktop or 19″/1U rack installation

Operating temperature: 0°C to 60°C, humidity <95%

Dimensions: 432 x 153 x 44 mm

Weight: 2.5 kg

---

---

---

---

---
