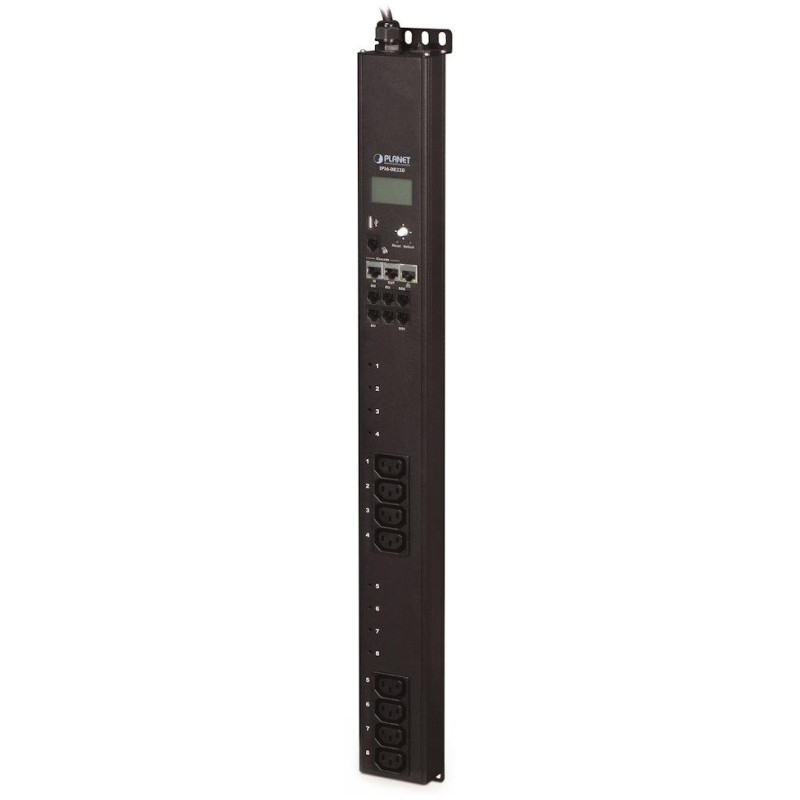

Planet IPM-08220, IP vertical control 8x sockets 240V/10A, 0U Rack, LED+display, 2 cascade ports, sensor port

Description

PLANET IPM-08220

IP remote control of 8 IEC 60320 (C13) electrical sockets via web interface . Consumption monitoring for each socket, scheduler, connection of environmental monitoring sensor (included). Vertical mounting in a 0U rack .

Logging of event and power data. Sending regular and alarm email notifications. Secure access via TCP/IP, UDP, HTTP/HTTPS (TLS 1.2), NTP, DHCP. Status LEDs and display.

BASIC SPECIFICATIONS

Features:

• Web browser control HTTP/HTTPS (TLS 1.2), TCP/IP, UDP, NTP, DHCP, Ping
• MIB (Management Information Base) files for SNMP
• Output naming support
• Reports on voltage, current, power consumption and total kWh
• Setting overcurrent protection for each socket
• Meter reset function
• Firmware update
• Notification of events by sending a pop-up message or email
• IP filtering – IP address security masks to prevent unauthorized access
• Option button to enable lock protection to prevent modifications
• Possibility to connect up to 3 sensors and 2 controllers to expand functions

Number of sockets: 8

Connectors:

8x IEC 60320 C13 output

1× IEC60309 input

1× RJ-45 LAN 10/100 Base-TX

1× RJ-11 for connecting the TH sensor

3× RJ-11 for sensor connection

2× RJ-11 for controller connection

2× cascaded RJ-45 ports

1× USB port

Load: each socket up to 10 A, total 16 A

Switching voltage: AC 100–240 V, 50/60 Hz

Fuse: 16 A

Design: vertical into a 0U rack

Operating temperature: 0 °C to 60 °C, humidity up to 90%

Dimensions: 696 × 66 × 44.5 mm

Weight: 2.1 kg

---

---

---

---

---

---

---

---

---
