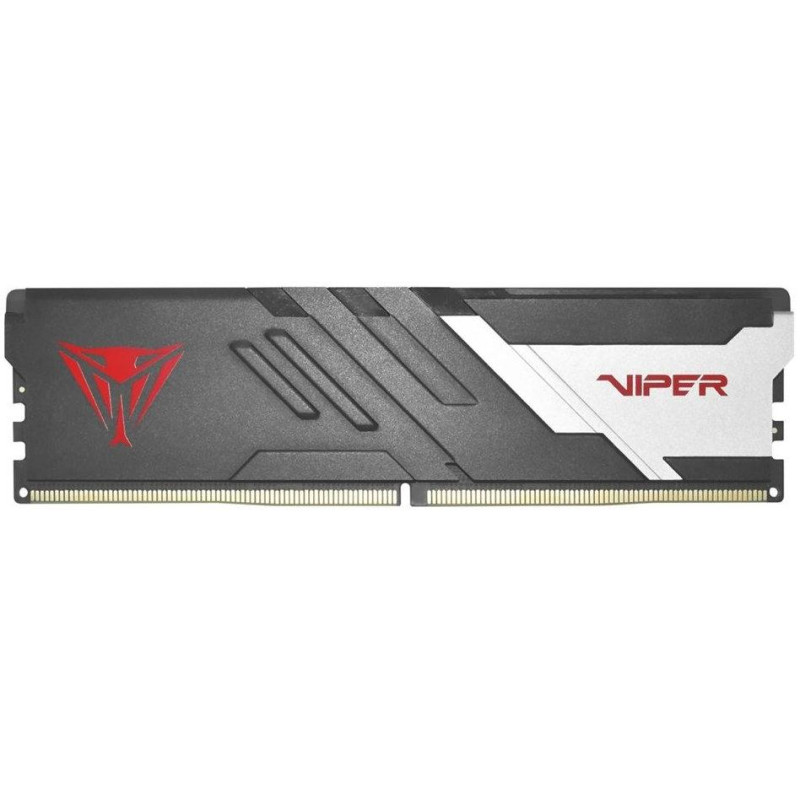

PATRIOT VIPER VENOM 16GB DDR5 6000MHz / DIMM / CL40 / 1.1V /

First-generation DDR5 gaming memory for maximum performance on the latest platforms.

Patriot Viper Venom DDR5 is Patriot’s first generation of DDR5 memory modules designed to deliver extreme performance on DDR5 platforms. With a clock speed of 6000 MT/s, it offers twice the bandwidth of DDR4 and outperforms most overclocked DDR4 modules. The memory has a capacity of 16 GB (1x16GB) and is equipped with advanced technologies for efficient operation.

The module is equipped with innovative onboard power management integrated circuits that ensure more efficient operation and lower power consumption. Onboard thermal management technology with a thermal sensor extends the module’s lifespan through better temperature control. The aluminum heatsink in a matte black design with a red Viper logo and a silver label ensures effective heat dissipation even under heavy loads.

Advanced profiles for optimal performance
The memory offers two XMP 3.0 profiles and two EXPO profiles, all with a frequency of 6000 MT/s at a voltage of 1.35 V. The first profile with latencies of CL30-40-40-76 is optimized for maximum performance, while the second profile with CL36-36-36-76 provides a more balanced ratio between performance and stability.

Reliability and compatibility
With integrated On-Die ECC technology and thorough testing on the latest DDR5 platforms, the module ensures high reliability even when overclocked. Onboard power management IC reduces the burden on the motherboard and enables more efficient power management directly on the module.

BASIC SPECIFICATIONS

Memory type: DDR5

Capacity: 16GB (1×16GB)

Base frequency: 4800 MT/s (PC5-38400)

Base Latency: CL40-40-40-77

Base voltage: 1.1 V

XMP 3.0 frequency: 6000 MT/s (PC5-48000)

XMP Profile 1: 6000 MT/s, CL30-40-40-76, 1.35 V

XMP Profile 2: 6000 MT/s, CL36-36-36-76, 1.35V

EXPO profiles: identical to XMP profiles

Technology: On-Die ECC, onboard power management IC, thermal sensor

Radiator: aluminum, matte black with red Viper logo

Module dimensions: 0.7 × 137 × 43 mm

Weight: 52g
