OlifeEnergy Integration Module – Expansion kit for DualBox and AC station

Description

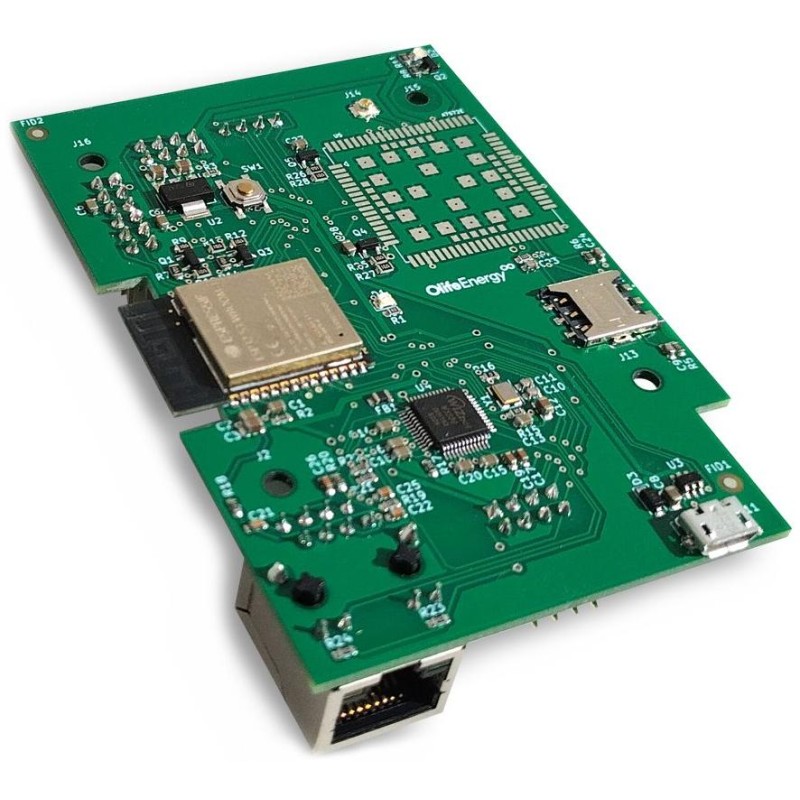

OlifeEnergy SolarModule SDBPX

Expansion module for installation in the OlifeEnergy AC DoubleBox BASE station. In the case of using WallBox BASE stations, this module is not needed and only the SLBPW module is sufficient. PLUS type stations already integrate modules for communication with PV plants and neither is needed. It allows the station to communicate with selected inverters for home photovoltaic power plants (PV plants). Therefore, it is not necessary to purchase an Olife Energy SmartMeter to protect the main circuit breaker from tripping, thanks to the SolarModule it is possible to use the solar power plant’s smartmeter (selected models only). The module can communicate with the inverter over a local area network ( LAN ), wirelessly using Wi-Fi , or via the Ethernet protocol ModBus TCP . In addition, it allows remote management and setting of the station over a local area network. Cooperation with the inverter allows the station to optimize electric vehicle charging so as to achieve the highest possible charging speed using maximum solar energy efficiency. It works in two modes – circuit breaker protection (maximum charging speed) and solar charging (maximum efficiency).

Circuit breaker protection:

The vehicle is charged at the maximum possible speed. Dynamic power management prevents the main circuit breaker from tripping (consumption is measured at the inverter smart meter installation location). In case of an increase in the object’s consumption, charging slows down, in case of an increase in the supply from the PV plant, charging speeds up and vice versa. High object consumption suspends charging.

Solar charging:

Charging is based on the battery storage state of charge (SoC), power and current inverter utilization. Only the energy produced by the PV system is used, which results in maximum operating efficiency and the highest possible savings. A minimum battery reserve can be set at which charging stops so that sufficient energy is available for the household.

The SLBPW expansion module is required to install the module. This module cannot be used with stations in the CLOUD variant.

• Communication Wi-Fi (802.11b/g/n), Ethernet (RJ-45)
• Easy control via the OlifeEnergy mobile app (Android, iOS)
• Two charging modes – solar charging and circuit breaker protection

BASIC SPECIFICATIONS

Interface: Wi-Fi, RJ-45

Input voltage: 5V

Consumption: max. 5 W

Supported charging stations: OlifeEnergy DoubleBox, AC

Supported inverters: DEYE / Xtend Solarmi, GoodWe (ET series), SOLAX, Huawei (SUN2000), SOFAR. For more information on commissioning, please refer to the Manual.
