OlifeEnergy EV electric car charger BASE AC 22kW, Wallbox, Type2, twisted cable, RFID, auto mode

Description

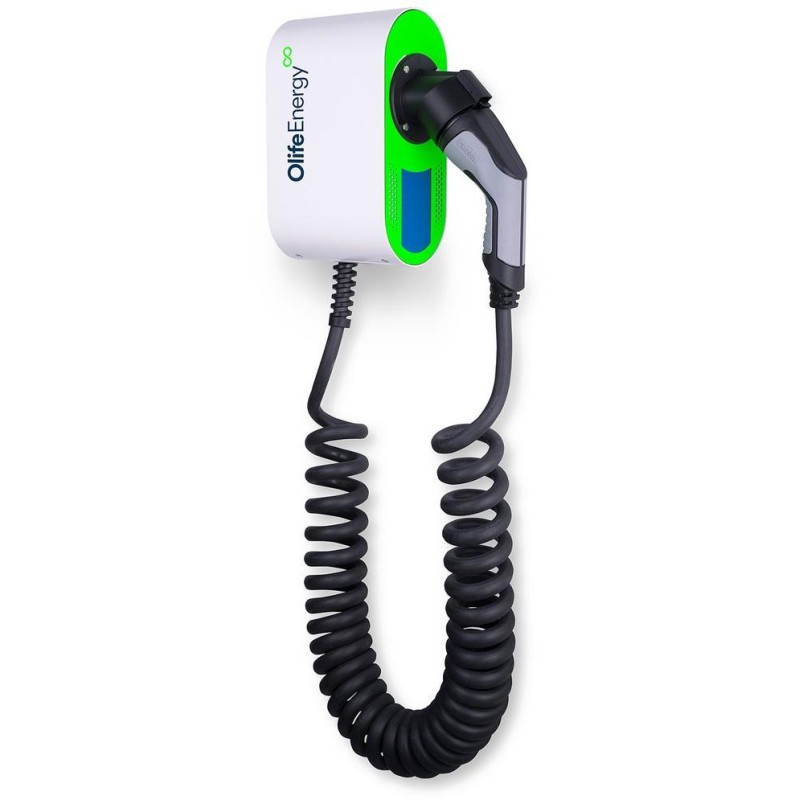

OlifeEnergy EV charging station BASE 22 kW

WallBox is a durable charging station for charging all electric vehicles on the EU market with a power of up to 22 kW (alternating current AC). The charging station is designed for outdoor use and installation in the garage. It also offers the option of mounting on a wall (wallbox) or on a profile anchored to the ground (pole).

This WallBox is already equipped with a wide range of functionalities in the basic version. Charging can be started automatically immediately after connecting the vehicle and identifying it with an RfID card or mobile phone. Complete configuration is also carried out via the mobile app. The station power can be set in the range of 0 to 22 kW.

The station can be connected to a HDO, integrated into a smart home, connected to a battery storage or integrated with other control systems. Through the external OlifeEnergy SmartMeter unit (separate product), it is possible to dynamically control the power of the charging station to avoid tripping circuit breakers during high demand, and to charge from surplus solar energy or a low tariff.

• AC supply type: AC 3 + N + PE 400 V 50 Hz, TN-S
• Max. cable cross-section: 10 mm ²
• Control: local – automatic, RFID, mobile application (Bluetooth)
• Residual protection: detection of residual DC current according to IEC 62955
• Communication: Bluetooth, Modbus RTU (via RS-485), ADC 0-10 V

BASIC SPECIFICATIONS

Power: 22 kW

Input voltage: 3× 400 V (option 1× 230 V)

Input current: 0-32A

Connection type according to ČSN EN 61851: Type C

Output: Type 2 (according to ČSN EN 62196), twisted cable

Protection category: IP54

Operating temperature: -25 to +40 °C

Dimensions: 320 × 266 × 120 mm

Weight: 10 kg (net, packaging + 2 kg)

---
