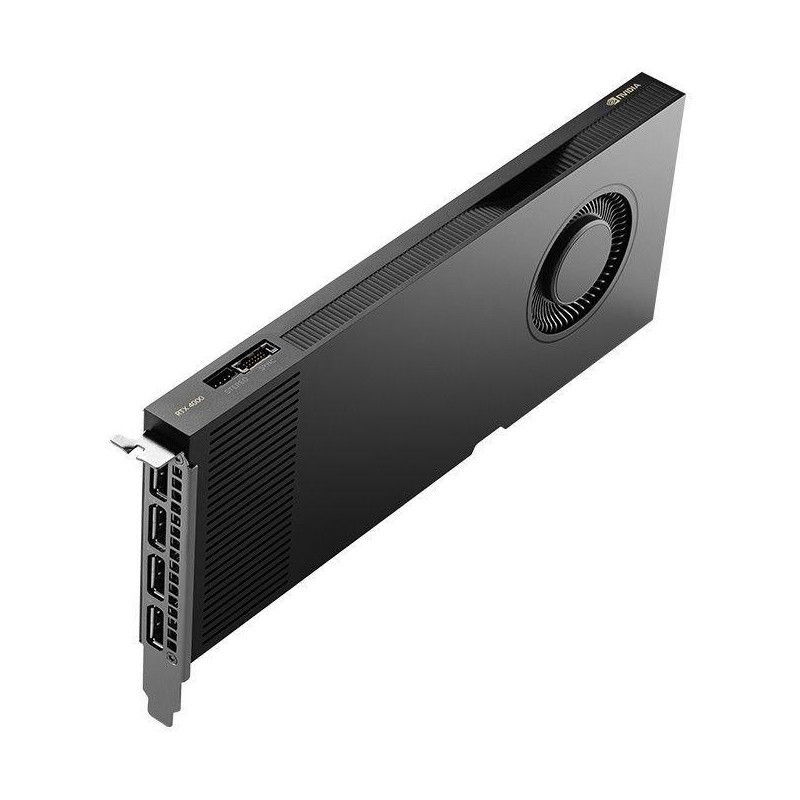

NVIDIA RTX 4000 Ada / 20GB GDDR6 / PCIe 4.0 x16 / 4x DP / Bulk

The most powerful single-slot professional graphics card built on NVIDIA Ada Lovelace architecture for accelerating AI, ray tracing, and demanding graphics applications.

The NVIDIA RTX 4000 Ada Generation graphics card is a cutting-edge solution for design, engineering, scientific computing, and content creation professionals. It combines 6144 CUDA cores , 192 4th generation Tensor Cores , and 48 3rd generation RT Cores with a generous 20GB of GDDR6 memory to seamlessly work with large datasets and complex visual projects.

The Ada Lovelace architecture delivers significant performance improvements in generative AI, real-time ray tracing, and professional graphics applications. The card is certified by leading software vendors (ISVs) and workstations, ensuring maximum stability and compatibility with professional tools. The compact single-slot design allows installation in smaller workstations while maintaining top-notch performance.

Performance for professional applications
The card achieves 26.7 TFLOPS of single-precision performance and, thanks to Tensor Cores, offers up to 327.6 TFLOPS for AI tasks using FP8 format and sparsity. In generative AI (Stable Diffusion) tests, it provides up to 1.2x higher performance compared to the previous generation, in rendering (Arnold) up to 1.7x acceleration and in graphics applications up to 1.5x higher performance.

Advanced display options
Four DisplayPort 1.4a outputs with audio support allow flexible configuration of up to 4 displays simultaneously at 4K @ 120 Hz, 5K @ 60 Hz, or 2 displays at 8K @ 60 Hz. The card supports 3D stereo display, HDCP 2.2 content protection, and NVIDIA Mosaic technology for creating large multi-display setups.

Professional support and certification
The graphics card is tested and certified with applications such as Autodesk AutoCAD, Adobe Creative Suite, Dassault SOLIDWORKS and other professional tools. Compatibility with NVIDIA Quadro Sync II allows for synchronization of multiple GPUs for specialized applications. The card is VR Ready and supports the latest graphics APIs including DirectX 12, OpenGL 4.6 and Vulkan 1.3.

Advanced technologies
NVIDIA GPUDirect for Video and RDMA technologies enable direct data transfer between GPUs and external devices without CPU overhead. NVIDIA RTX IO accelerates data loading from storage for faster processing of large files. Error Correcting Code (ECC) memory support ensures maximum reliability for critical computing.

BASIC SPECIFICATIONS

Architecture: NVIDIA Ada Lovelace

CUDA cores: 6144

Tensor Cores: 192 (4th generation)

RT Cores: 48 (3rd generation)

Memory: 20GB GDDR6, 160bit, 360GB/s, ECC

Performance: 26.7 TFLOPS (FP32), 61.8 TFLOPS (RT), 327.6 TFLOPS (Tensor FP8)

Interface: PCI Express 4.0 x16

Outputs: 4× DisplayPort 1.4a

Max. displays: 4 x 4096 x 2160 @ 120 Hz, 2 x 7680 x 4320 @ 60 Hz

Encoders: 2× encoder, 2× decoder (+AV1)

API: DirectX 12, OpenGL 4.6, Vulkan 1.3, CUDA 12.2, OpenCL 3.0

Consumption: 130 W (TBP)

Cooling: active

Dimensions: 111.8 × 241.3 mm, single-slot

VR Ready: yes
