MSI PRO Z890-S WIFI / Intel Z890 / LGA1851 / 4x DDR5 / 3x M.2 / USB-C / HDMI / DP / WiFi / ATX

Description

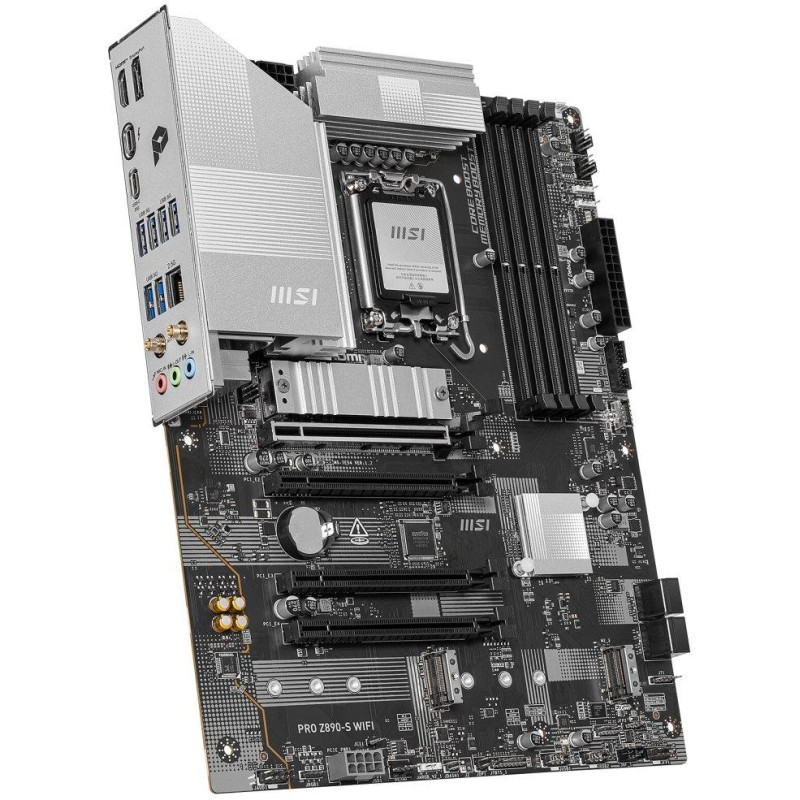

MSI PRO Z890-S WIFI

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for Intel Core Ultra 2 series processors

LGA1851 socket

Chipset

Intel Z890

Memory

4× DDR5 memory slots, support up to 256 GB

Support DDR5 8600-6400 (OC) MT/s / 6400-4800 (JEDEC) MT/s

Dual-channel memory architecture

Support non-ECC, unbuffered memory

Intel Extreme Memory Profile (XMP) 3.0 support

CUDIMM support

Slots

Intel CPU

1× PCIe 5.0 x16 slot

1× PCIe 4.0 x16 slot (supports x4 mode)

Intel Z890 chipset

1× PCIe 4.0 x16 slot (supports x4 mode)

1× PCIe 3.0 x16 slot (supports x1 mode)

Graphic arts

1× HDMI port, supporting max. resolution 4K at 60 Hz

1× DisplayPort, supporting max. resolution 4K at 60 Hz

1× Thunderbolt 4 port, supporting max. resolution 4K at 120 Hz or 8K at 60 Hz

Storage

Intel CPU

1× M.2 slot, M Key, for units of type 2280/2260/2242 (PCIe 5.0 x4 mode)

Intel Z890 chipset

4× SATA 6Gb/s ports

1× M.2 slot, M Key, for units of type 2280/2260/2242 (PCIe 4.0 x4 mode)

1× M.2 slot, M Key, for 2280/2260/2242 type units (SATA and PCIe 4.0 x4 mode)

RAID 0, RAID 1, RAID 5 and RAID 10 support for SATA drives

RAID 0, RAID 1, and RAID 5 support for M.2 NVMe drives

USB

1× Thunderbolt 4 on the back panel

4× USB 2.0 ports available via internal USB connectors

8× USB 3.2 Gen1 (USB 3.0) ports (6 ports on the back panel, 2 ports available via internal USB connectors)

1× USB-C 3.2 Gen2×2 port on the back panel

1× USB-C 3.2 Gen2×2 port available via internal USB connector

Audio

Realtek ALC897 Codec

7.1 channel High Definition Audio

HIND

1× Realtek 8125D 2.5Gbps LAN controller

WLAN/Bluetooth

Intel Wi-Fi 7

Wi-Fi 802.11a/b/g/n/ac/ax/be

Triple Band (2.4 GHz, 5 GHz, 6 GHz)

MU-MIMO TX/RX support

Data transfer speed up to 5.8 Gbps

Bluetooth 5.4

Internal connectors

1× 24pin ATX main power connector

2× 8pin +12V power connector

1× 8pin PCIe power connector

1× 4pin CPU fan connector

1× 4-pin water cooling pump/system fan connector

4× 4pin system fan connector

2× front panel connector

1× chassis opening detection connector

1× front panel audio connector

1× TBT connector (supports RTD3)

1× Tuning controller connector

1× 4pin RGB LED connector

3× 3pin A-RAINBOW V2 (ARGB Gen2) LED connector

1× TPM module connector (supports TPM 2.0)

2x USB 2.0 port (supports 4x USB 2.0)

1× USB 3.2 Gen1 (USB 3.0) port (supports 2× USB 3.2 Gen1)

1× USB-C 3.2 Gen2×2

1× Clear CMOS jumper

1× EZ Conn V2 connector (JAF_2)

4× EZ Debug LEDs

Rear panel ports

1× HDMI

1× DisplayPort

1× Thunderbolt 4 />
1× USB-C 3.2 Gen2×2

6× USB 3.2 Gen1 (USB 3.0)

1× RJ-45

2× Wi-Fi antenna connector

3× audio jacks

Dimensions

304.8 x 243.84mm

ATX format
