MSI PRO X870-P WIFI / AMD X870 / AM5 / 4x DDR5 / 3x M.2 / HDMI / DP / USB-C / WiFi / ATX

Description

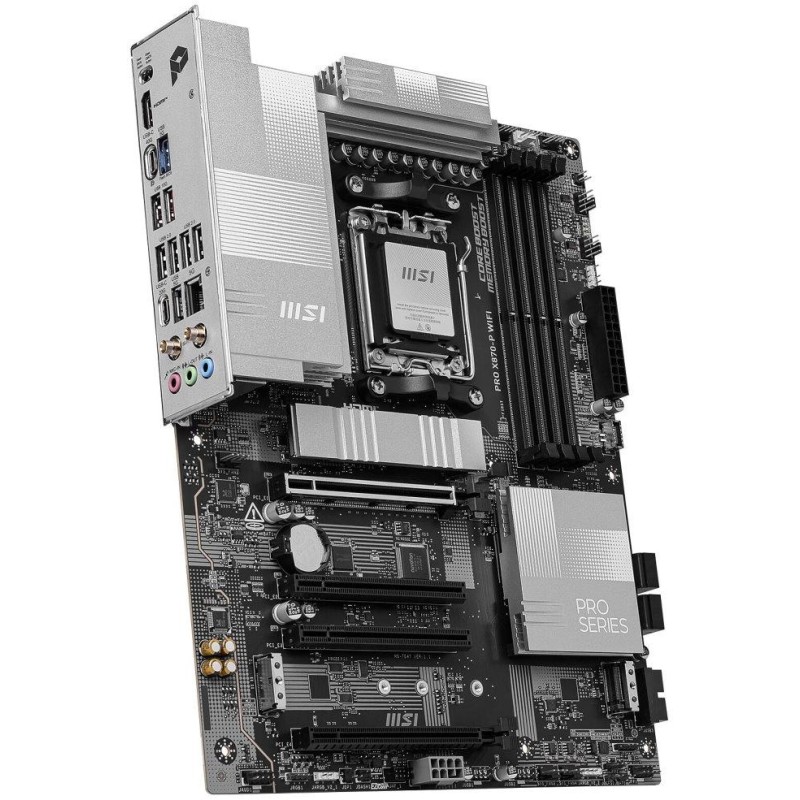

MSI PRO X870-P WIFI

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for AMD Ryzen 7000/ 8000/ 9000 series processors (Socket AM5)

Chipset

AMD X870

Memory

4× DDR5 memory slots, support up to 256 GB

Support DDR5 8200+ (OC)/ 8000+ (OC)/ 7800 (OC)/ 7600 (OC)/ 7400 (OC)/ 7200 (OC)/ 7000 (OC)/ 6800 (OC)/ 6600 (OC)/ 6400 (OC)/ 6200 (OC)/ 6000 (OC)/ 5800 (OC)/ 5600 (JEDEC)/ 5400 (JEDEC)/ 5200 (JEDEC)/ 5000 (JEDEC)/ 4800 (JEDEC) MT/s

AMD POR Speed and JEDEC Speed support

Memory overclocking and AMD EXPO support

Dual-channel memory architecture

Support non-ECC, unbuffered memory

CUDIMM support, Clock Driver bypass mode only

Slots

AMD CPU

1× PCIe 5.0 x16 slot

AMD X870 chipset

1× PCIe 4.0 x16 slot (supports x4 mode)

2× PCIe 3.0 x16 slot (supports x1 mode)

Graphic arts

1× HDMI port, supporting max. resolution 4K at 60 Hz (according to HDMI 2.1)

1× USB4 (USB-C) port, supporting max. resolution 4K at 60 Hz (according to DisplayPort 1.4 with HBR3)

Storage

AMD CPU

1× M.2 slot, M Key, for 2260/2280 type units (PCIe 5.0 x4 mode)

AMD X870 chipset

1× M.2 slot, for 2280/22110 type units (PCIe 4.0 x4 mode)

1× M.2 slot, for 2260/2280 type units (PCIe 4.0 x2 mode)

RAID 0 and RAID 1 support for M.2 NVMe drives

USB

8× USB 2.0 (4 ports on the back panel, 4 ports available via internal USB connectors)

4× USB 3.2 Gen1 (USB 3.0) (2 ports on the back panel, 2 ports available via internal USB connectors)

2× USB 3.2 Gen2 (USB 3.1) on the back panel

1× USB-C Gen2 (USB-C 3.1) available via internal USB connector

1× USB-C Gen2×2 on the back panel

1× USB4 (USB-C) on the back panel

Audio

Realtek ALC897 Codec

7.1 channel High Definition Audio

HIND

1× Realtek RTL8126VB 5Gigabit LAN controller

WLAN/Bluetooth

Wi-Fi 7

Wi-Fi 802.11a/b/g/n/ac/ax/be

Triple Band (2.4 GHz, 5 GHz, 6 GHz)

MU-MIMO TX/RX support

Bluetooth 5.4

Internal connectors

2x Thunderbolt5 card connector (JTBT5, RTD3)

1× 24pin ATX main power connector

2× 8pin power connector

1× 8pin PCIe power connector

1× CPU fan connector

1× water cooling pump connector

6× system fan connector

2× front panel connector

1× chassis opening detection connector

1× front panel audio connector

1x Tuning Controller connector

3× addressable V2 RGB LED strip connector

1× RGB LED connector

1× TPM connector (supports TPM 2.0)

4× USB 2.0

2× USB 3.2 Gen1 (USB 3.0)

1× USB-C 3.2 Gen2 (USB-C 3.1)

Rear panel connectors

2× Wi-Fi antenna connector

1× HDMI

1× RJ-45

1× USB4 (USB-C)

1× USB-C 3.2 Gen2×2

2× USB 3.2 Gen2 (USB 3.1)

2× USB 3.2 Gen1 (USB 3.0)

4× USB 2.0

3× audio jacks
/> 1× Clear CMOS button

1× Flash BIOS button

Dimensions

304.8 x 243.84mm

ATX format
