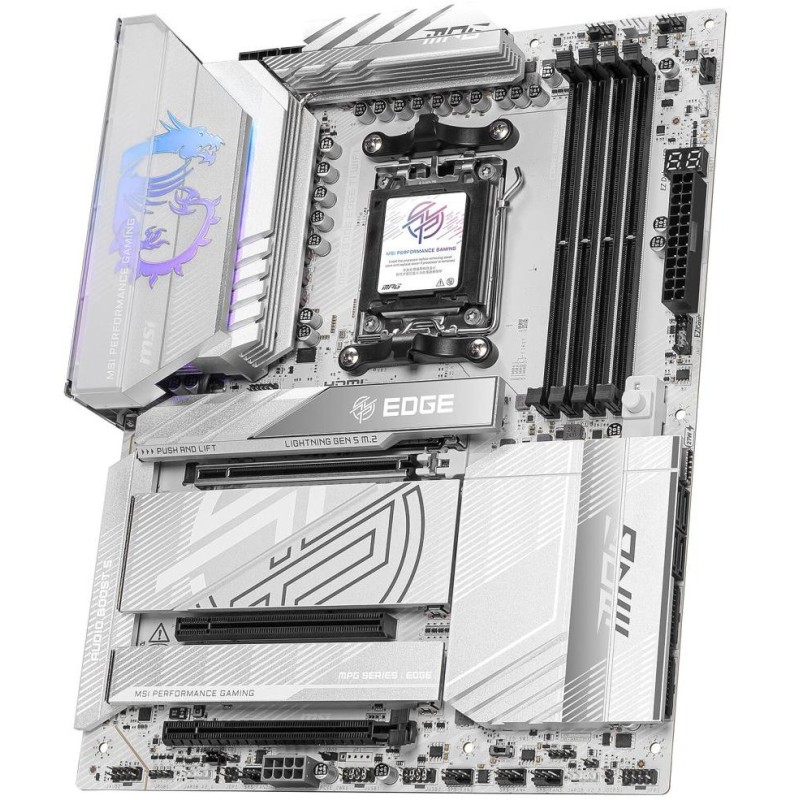

MSI MPG X870E EDGE TI WIFI

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for AMD Ryzen 7000/ 8000/ 9000 series processors (Socket AM5)

Chipset

AMD X870E

Memory

4× DDR5 memory slots, support up to 256 GB

Support DDR5 8400-5600 (OC) MT/s / 5600-4800 (JEDEC) MT/s

1DPC 1R max. speed up to 8400+ MT/s

1DPC 2R max. speed up to 6400+ MT/s

2DPC 1R max. speed up to 6400+ MT/s

2DPC 2R max. speed up to 4800+ MT/s

CUDIMM support in Clock Driver bypass mode

Dual-channel memory architecture

Support non-ECC, unbuffered memory

AMD EXPO Support

Slots

AMD CPU

1× PCIe 5.0 x16 slot

Ryzen 9000/7000 series supports PCIe 5.0 x16

Ryzen 8700/ 8600/ 8400 series supports PCIe 4.0 x8

Ryzen 8500/ 8300 series supports PCIe 4.0 x4

AMD X870E chipset

1× PCIe 3.0 x16 slot (supports x1 mode)

1× PCIe 4.0 x16 slot (supports x4 mode)

Graphic arts

1× HDMI port, supporting max. resolution 8K at 60 Hz (according to HDMI 2.1 FRL)

2× USB4 (USB-C) ports, supporting max. resolution 4K at 60 Hz (according to DisplayPort 1.4 with HBR3)

Storage

AMD CPU

1× M.2_1 slot*, M Key, for 22110/2280 type units (PCIe 5.0 x4 mode)

1× M.2_2 slot**, M Key, for 2280/2260 type units (PCIe 5.0 x4 mode)

AMD X870E chipset

1× M.2_3 slot, M Key, for 2280/2260 type units (PCIe 4.0 x4 mode)

1× M.2_4 slot, M Key, for 2280/2260 type units (PCIe 4.0 x4 mode)

4× SATA 6Gb/s ports

RAID 0, RAID 1, and RAID 10 support for M.2 NVMe drives

*M.2_1 slot

Ryzen 9000/7000 series supports PCIe 5.0 x4

Ryzen 8000 series supports PCIe 4.0 x4

**M.2_2 slot

Ryzen 9000/7000 series supports PCIe 5.0 x4

For Ryzen 8000 series, the M.2_2 slot is unavailable

USB

8× USB 2.0 (4 ports on the back panel, 4 ports available via internal USB connectors)

4× USB 3.0 ports available via internal USB connectors

5× USB 3.1 ports on the back panel

1× USB-C 3.1 port on the back panel

1× USB-C 3.2 Gen2x2 available via internal USB connector

2x USB4 (USB-C) on the back panel

Audio

Realtek ALC4080 Codec

7.1 channel High Definition Audio

S/PDIF output support

HIND

1× Realtek 8126VB 5Gigabit LAN controller

WLAN/Bluetooth

AMD Wi-Fi 7

Wi-Fi 802.11a/b/g/n/ac/ax/be

Triple Band (2.4 GHz, 5 GHz, 6 GHz)

MU-MIMO TX/RX support

Bluetooth 5.4

Internal connectors

1× 24pin ATX main power connector

2× 8pin ATX 12V power connector

1× 8pin PCIe power connector

1× 4pin CPU fan connector

1× 4pin water cooling fan connector

6× 4-pin system fan connector

1× EZ Conn connector

2× front panel connector

1× chassis opening detection connector

1× front panel audio connector

3× 3pin connector A-RAINBOW V2 LED (ARGB Gen2)

1× 4pin toRGB LED connector

1× TPM module connector (supports TPM 2.0)

4× internal USB 2.0 connector

4× internal USB 3.0 connector

1× internal USB-C 3.2 Gen2x2 connector

4× SATA 6Gb/s connector

4× M.2 slots, M Key

Rear panel connectors

1× Flash BIOS button

1× Clear CMOS button

1× HDMI

1× RJ-45

5× USB 3.2 Gen2 (USB 3.1)

1× USB-C 3.1

2× USB4 (USB-C)

4× USB 2.0

2× Wi-Fi antenna connector

2× audio jacks

1× optical S/PDIF output

Dimensions

304.8 x 243.84mm

ATX format
