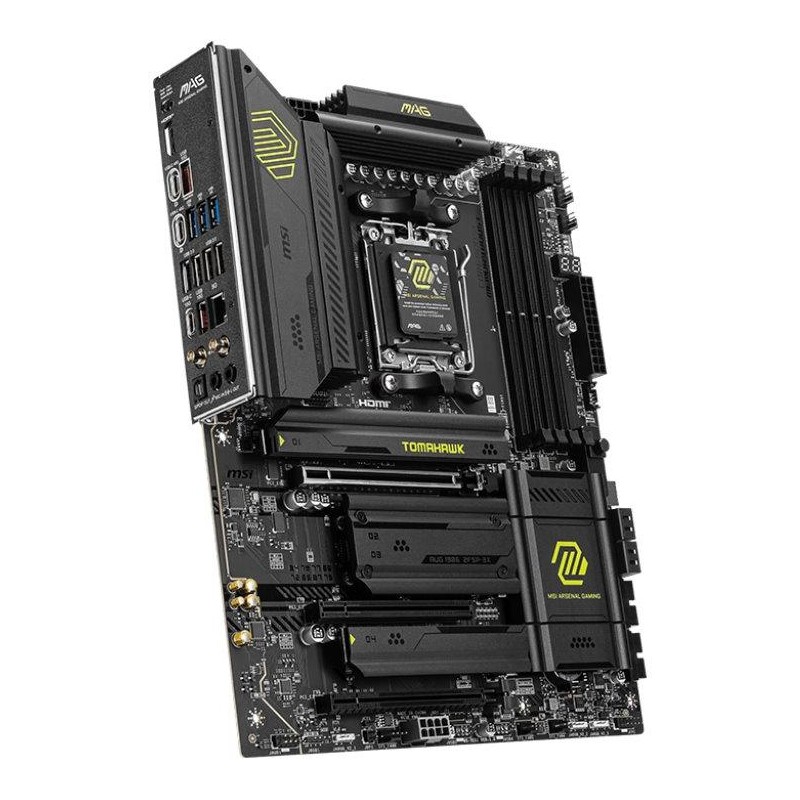

MSI MAG X870 TOMAHAWK WIFI

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for AMD Ryzen 9000/ 8000/ 7000 series processors (Socket AM5)

Chipset

AMD X870

Memory

4× DDR5 memory slots, support up to 256 GB

Support DDR5 up to DDR5 8400+ (OC)/ 8200+ (OC)/ 8000+ (OC)/ 7800 (OC)/ 7600 (OC)/ 7400 (OC)/ 7200 (OC)/ 7000 (OC)/ 6800 (OC)/ 6600 (OC)/ 6400 (OC)/ 6200 (OC)/ 6000 (OC)/ 5800 (OC)/ 5600 (JEDEC)/ 5400 (JEDEC)/ 5200 (JEDEC)/ 5000 (JEDEC)/ 4800 (JEDEC) MT/s

Dual-channel memory architecture

AMD POR and JEDEC speed support

Support non-ECC, unbuffered memory

Support for AMD Extended Profiles for Overclocking (EXPO)

CUDIMM support, only in Clock Driver bypass mode

Slots

AMD Ryzen 9000 and 7000 series

1× PCIe 5.0 x16 slot

AMD Ryzen 8700/ 8600/ 8400 series

1× PCIe 4.0 x16 slot (supports x8 mode)

AMD Ryzen 8500/ 8300 series

1× PCIe 4.0 x16 slot (supports x4 mode)

AMD X870 chipset

1× PCIe 4.0 x16 slot (supports x4 mode)

1× PCIe 3.0 x16 slot (supports x1 mode)

Graphic arts

1× HDMI port, supporting max. resolution 8K at 60 Hz (according to HDMI 2.1)

2× USB4, supporting max. resolution 4K at 60 Hz (according to DP 1.4 with HBR3)

Storage

AMD Ryzen 9000 and 7000 series

1× M.2 slot, M Key, for 22110/2280 type units (PCIe 5.0 x4 mode)

1× M.2 slot, M Key, for 2280/2260 type units (PCIe 5.0 x4 mode)

AMD X870 chipset

1× M.2 slot, M Key, for 2280/2260 type units (PCIe 4.0 x2 mode)

1× M.2 slot, M Key, for 2280/2260 type units (PCIe 4.0 x4 mode)

4× SATA III

RAID 0, RAID 1, and RAID 10 support for M.2 NVMe drives

Some PCIe, M.2 slots and SATA connectors share data lines and will not work when installed simultaneously. For more information, please visit the manufacturer’s website.

USB

2× USB4 (USB-C) ports on the back panel

1× USB-C 3.2 Gen2×2 port available via internal USB connector

1× USB-C 3.2 Gen2 (USB-C 3.1) port on the back panel

2× USB 3.2 Gen2 (USB 3.1) ports on the back panel

7× USB 3.2 Gen1 (USB 3.0) ports (3 ports on the back panel, 4 ports available via internal USB connectors)

8× USB 2.0 ports (4 ports on the back panel, 4 ports available via internal USB connectors)

Audio

Realtek ALC4080 audio codec

7.1-channel USB High Performance Audio

S/PDIF output support

HIND

1× Realtek 8126-CG 5GbE LAN controller

WLAN/Bluetooth

Wi-Fi 7 (802.11a/b/g/n/ac/ax/be)

Triple Band (2.4 GHz, 5 GHz, 6 GHz)

Transfer speed up to 5.8 Gbps

Bluetooth 5.4

Internal connectors

1× 24pin ATX main power connector

2× 8pin +12V power connector

1× 8pin PCIe power connector

1× 4pin CPU fan connector

1× 4-pin water cooling pump/system fan connector

6× 4-pin system fan connector

1× USB-C 3.2 Gen2×2 port with PD 27W

2× USB 3.2 Gen1 (USB 3.0) connector (supports 4× USB 3.2 Gen1)

2x USB 2.0 connector (supports 4x USB 2.0)

1× front panel audio connector

2x system panel connector

1× chassis opening detection connector

1× TPM module connector

1× EZ Conn V2 connector (JAF_2)

1× Clear CMOS jumper

1× OC safe boot BIOS jumper

1× 4pin RGB LED connector

3× 3pin A-RAINBOW V2 (ARGB Gen2) LED connector

Rear panel ports

2× Wi-Fi antenna connector

1× HDMI

2× USB4 (USB-C)

1× USB-C 3.2 Gen2 (USB 3.1)

2× USB 3.2 Gen2 (USB 3.1)

3× USB 3.2 Gen1 (USB 3.0)

4× USB 2.0

1× RJ-45

2× audio jacks

1× S/PDIF

1× BIOS Flashback button

1× Clear CMOS button

Dimensions

304.8 x 243.84mm

ATX format
