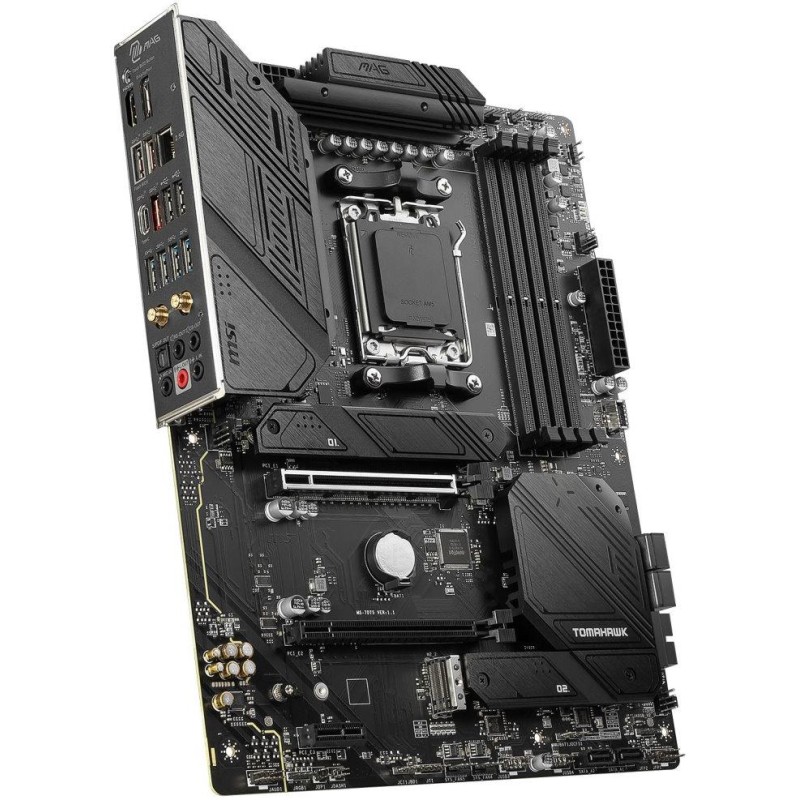

MSI MAG B650 TOMAHAWK WIFI / AMD B650 / AM5 / 4x DDR5 / 3x M.2 / HDMI / DP / WiFi / ATX

Description

MSI MAG B650 TOMAHAWK WIFI

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for AMD Ryzen 7000 series processors (Socket AM5)

Chipset

AMD B650

Memory

4x DDR5 memory slots, support up to 192 GB (4× 48 GB)

Support DDR5 6600+ (OC)/ 6400 (OC) / 6200 (OC) / 6000 (OC) / 5800 (OC) / 5600 (OC) / 5400 (OC) / 5200 (OC) / 5000 (OC) / 4800 MHz (JEDEC)

Dual-channel memory architecture

Support non-ECC, unbuffered memory

ECC UDIMM support, unbuffered (non-ECC mode)

Slots

AMD CPU

1× PCIe 4.0 x16 slot

AMD B650 chipset

1× PCIe 4.0 x16 slot (supports x4 mode)

1× PCIe 3.0 x1 slot

Graphic arts

1× HDMI port, supporting max. resolution 4K at 60 Hz

1× DisplayPort port, supporting max. resolution 8K at 60 Hz

Storage

AMD CPU

2× M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x4 mode)

ASMedia ASM1061

2× SATA 6Gb/s ports (without RAID support)

AMD B650 chipset

1× M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x4 mode)

4× SATA 6Gb/s ports

RAID 0, RAID 1 and RAID 10 support for SATA drives

RAID 0 and RAID 1 support for M.2 NVMe drives

USB

1× USB 3.2 Gen2x2 Type-C port on the back panel

1× USB 3.2 Gen2 Type C port available via internal USB connector

3× USB 3.2 Gen2 Type A ports on the back panel

6× USB 3.2 Gen1 (USB 3.0) ports (4 ports on the back panel, 2 ports available via internal USB connector)

6× USB 2.0 ports (2 ports on the back panel, 4 ports available via internal USB connectors)

Audio

Realtek ALC4080 Codec

7.1 channel High Definition Audio

S/PDIF output support

HIND

1× Realtek RTL8125B 2.5Gigabit LAN controller

WLAN/Bluetooth

AMD Wi-Fi 6E RZ616

Wi-Fi 802.11a/b/g/n/ac/ax

Triple Band (2.4 GHz, 5 GHz, 6 GHz)

MU-MIMO TX/RX support

Bluetooth 5.2

Internal connectors

1× 24pin ATX main power connector

2× 8pin ATX 12V power connector

6× SATA 6Gb/s connector

3× M.2 slots, M Key

1× USB 3.2 Gen2 type C connector

1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 ports)

2x USB 2.0 connector (supports 4x USB 2.0 port)

1× 4pin CPU fan connector

1× 4pin water cooling fan connector

6× 4-pin system fan connector

1× front panel audio connector

2x system panel connector

1× chassis opening detection connector

1× connector for TPM module

1× Tuning controller connector

2× 4-pin RGB LED connector

2× 3-pin connector ARGB_V2 LED

4× EZ Debug LEDs

Rear panel connectors

1× DisplayPort

1× HDMI

2× USB 2.0

4× USB 3.2 Gen1 (USB 3.0)

3x USB 3.2 Gen2 (USB 3.1 Gen2)

1× USB 3.2 Gen2x2 Type-C

1× RJ-45

1× Flash BIOS button

1× optical S/PDIF output
> 2× Wi-Fi antenna connector

5× audio jacks

Dimensions

30.4 × 24.3 cm

ATX format
