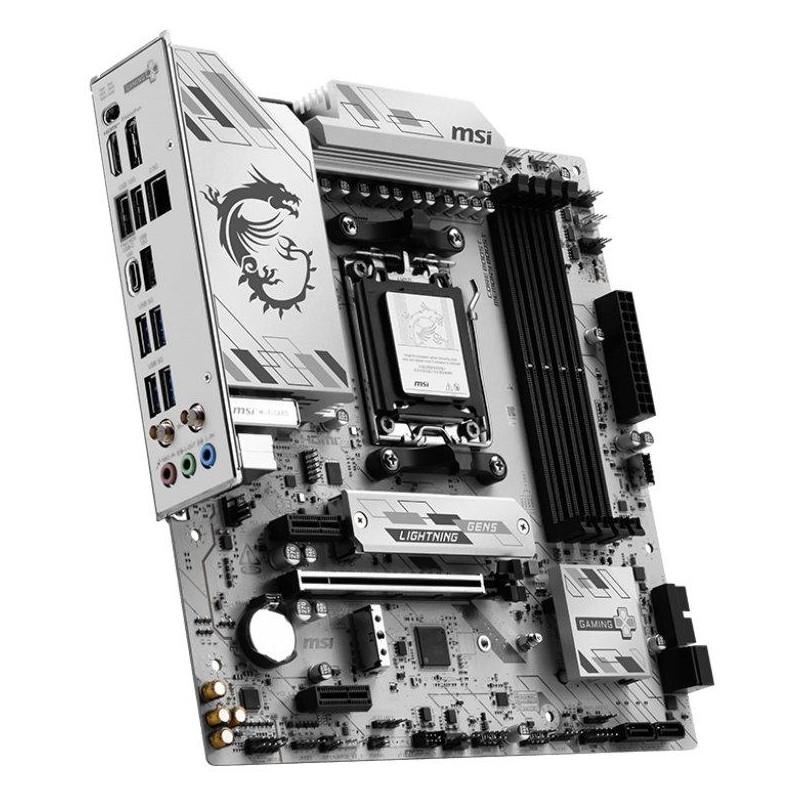

MSI B850M GAMING PLUS WIFI6E / AMD B850 / AM5 / 4x DDR5 / M.2 / WiFi 6E / mATX

Description

MSI B850M GAMING PLUS WIFI6E

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for AMD Ryzen 7000, 8000 and 9000 series processors (Socket AM5)

Chipset

AMD B850

Memory

4× DDR5 memory slots, support up to 256 GB

Support DDR5 8200-5600 (OC) MT/s / 5600-4800 (JEDEC) MT/s

1DPC 1R max. speed up to 8200+ MT/s

1DPC 2R max. speed up to 6400+ MT/s

2DPC 1R max. speed up to 6400+ MT/s

2DPC 2R max. speed up to 4800+ MT/s

CUDIMM support in Clock Driver bypass mode

Dual-channel memory architecture

Support non-ECC, unbuffered memory

AMD EXPO Support

Slots

AMD CPU

1× PCIe 4.0 x16 slot

Ryzen 9000/7000 series supports PCIe 4.0 x16

Ryzen 8700/ 8600/ 8400 series supports PCIe 4.0 x8

Ryzen 8500/ 8300 series supports PCIe 4.0 x4

AMD B850 chipset

2× PCIe 3.0 x1 slots

Graphic arts

1× HDMI port, supporting max. resolution 4K at 60 Hz

1× DisplayPort port, supporting max. resolution 4K at 60 Hz

Storage

AMD CPU

1× M.2_1 slot*, M Key, for 2280/2260 type units (PCIe 5.0 x4 mode)

1× M.2_2 slot**, M Key, for 2280/2260 type units (PCIe 4.0 x4 mode)

AMD B850 chipset

4× SATA 6Gb/s ports

RAID 0, RAID 1 and RAID 10 support for SATA drives

RAID 0 and RAID 1 support for M.2 NVMe drives

*M2_1 slot

Ryzen 9000/7000 series supports PCIe 5.0 x4

Ryzen 8000 series supports PCIe 4.0 x4

**M2_2 slot

Ryzen 9000/ 8700/ 8600/ 8400/ 7000 series supports PCIe 4.0 x4

Ryzen 8500/8300 series supports PCIe 4.0 x2

USB

4× USB 2.0 available via internal USB connectors

6× USB 3.0 (4 ports on the back panel, 2 ports available via internal USB connector)

3× USB 3.1 ports on the back panel

2× USB-C 3.1 (1 port on the back panel, 1 port available via internal USB connector)

Audio

Realtek ALC897 Codec

7.1 channel High Definition Audio

HIND

1× Realtek 8125D 2.5Gigabit LAN controller

WLAN/Bluetooth

Wi-Fi 6E 802.11a/b/g/n/ac/ax

Triple Band (2.4 GHz, 5 GHz, 6 GHz)

MU-MIMO TX/RX support

Bluetooth 5.3

Internal connectors

1× 24pin ATX main power connector

2× 8pin ATX 12V power connector

1× 4pin CPU fan connector

1× 4-pin water cooling pump/system fan connector

3× 4-pin system fan connector

1× front panel audio connector

2× front panel connector

1× chassis opening detection connector

1× TPM module connector (supports TPM 2.0)

1× Tuning controller connector

1× EZ Conn V1 connector

1× Clear CMOS jumper

1× OC Safe boot jumper

1× 4-pin RGB LED connector

3× 3pin connector A-RAINBOW V2 LED (ARGB Gen2)

4× EZ Debug LEDs

1× EZ Memory Detection LED

4× internal USB 2.0 connector

2× internal USB 3.0 connector

1× internal USB-C 3.1 connector

4× SATA 6Gb/s connector

2× M.2 slot, M Key

Rear panel connectors

1× Flash BIOS button

1× Clear CMOS button

1× HDMI

1× DisplayPort

1× RJ-45

3× USB 3.2 Gen2 (USB 3.1)

1× USB-C 3.1

4× USB 3.2 Gen1 (USB 3.0)

2× Wi-Fi antenna connector

3× audio jacks

Dimensions

243.84 × 243.84 mm

mATX format
