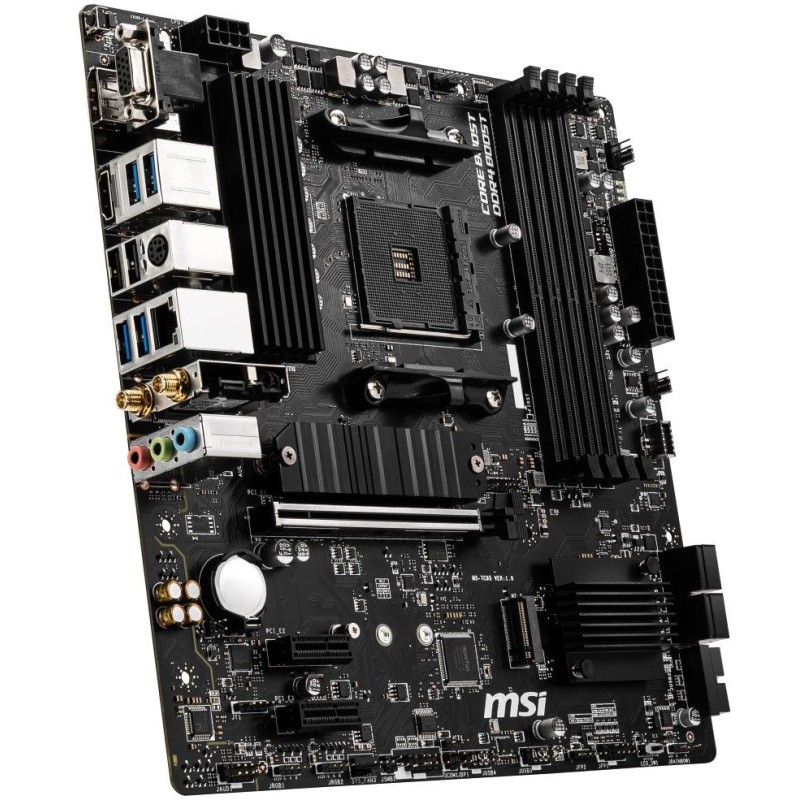

MSI B550M PRO-VDH WiFi / B550 / AM4 / 4x DDR4 DIMM / 2x M.2 / VGA / HDMI / DP / WiFi / mATX

MSI B550M PRO-VDH WiFi / B550 / AM4 / 4x DDR4 DIMM / 2x M.2 / VGA / HDMI / DP / WiFi / mATX

103,31 €

SKU: MotherboardsMSI-B550M-PRO-VDH-WI-22944 Category: Tags: ,

Description

MSI B550M PRO-VDH WIFI

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for AMD Ryzen 3rd generation and higher processors (AM4 socket)

Chipset

AMD B550

Memory

4x DDR4 memory slots, support up to 128 GB

Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz (JEDEC)

Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz (A-XMP OC mode)

Dual-channel memory architecture

Support for non-ECC UDIMM, unbuffered

ECC UDIMM support, unbuffered (non-ECC mode)

Slots

1x PCIe 4.0/3.0 x16 slot

2x PCIe 3.0 x1 slots

Graphic arts

1x HDMI port, supporting max. resolution 4096 x 2160 at 24 Hz

1x VGA port, supporting max. resolution 2048 x 1536 at 50 Hz, 2048 x 1280 at 60 Hz, 1920 x 1200 at 60 Hz

1x DisplayPort, supporting max. resolution 4096 x 2160 at 60 Hz

Storage

AMD B550 chipset

4x SATA 6Gb/s ports

1x M.2 slot, M Key, for units of type 2242/2260/2280 (PCIe 3.0 x4 mode)

AMD CPU

1x M.2 slot, M Key, for 2242/2260/2280 type units (PCIe 4.0/3.0 x4 and SATA mode)

RAID 0, RAID 1 and RAID 10 support for SATA drives

RAID 0 and RAID 1 support for M.2 PCIe drives

USB

AMD B550 chipset

1x USB 3.2 Gen1 Type C port available via internal USB connector

2x USB 3.2 Gen1 (USB 3.0) ports available via internal USB connector

6x USB 2.0 ports (2 ports on the back panel, 4 ports available via internal USB connectors)

AMD CPU

4x USB 3.2 Gen1 (USB 3.0) ports on the back panel

Audio

Realtek ALC892 Codec

7.1 channel High Definition Audio

HIND

1x Realtek 8111HN Gigabit LAN controller

WLAN/Bluetooth

Intel 3168

Wi-Fi 802.11 a/b/g/n/ac

Dual Band (2.4GHz, 5GHz)

Data transfer speed up to 433 Mbps

Bluetooth 4.2

Internal connectors

1x 24-pin ATX main power connector

1x 8-pin ATX 12V power connector

4x SATA 6Gb/s connector

2x M.2 slots, M Key

1x USB 3.2 Gen1 Type-C connector

1x USB 3.2 Gen1 (USB 3.0) connector (supports 2x USB 3.2 Gen1 port)

2x USB 2.0 connector (supports 4x USB 2.0 port)

1x 4-pin CPU fan connector

1x 4-pin water cooling fan connector

3x 4-pin system fan connector

1x connector for TPM module

1x front panel audio connector

2x system panel connector

1x case opening detection connector

2x 4-pin RGB LED connector

2x 3-pin RAINBOW LED connector

1x serial port connector

1x Clear CMOS jumper

Rear panel connectors

1x PS/2 keyboard and mouse combo port

1x DisplayPort

1x HDMI

1x VGA

2x USB 2.0

4x USB 3.2 Gen1 (USB 3.0)

1x RJ-45

2x Wi-Fi antenna connector

1x Flash BIOS button

3x audio jacks

Dimensions

24.4x 24.4cm

Micro ATX format

Additional information

Brand

MSI
Model

B550M
Warranty period for registration number (months)

36
Manufacturer

MSI
Warranty length (months)

36
Processed

Approved
Wi-Fi

Yes
RJ-45 (number)

1
Dimensions

244 × 244 mm
Dropshipment - Alza

Yes
USB 2.0 (number)

2
Gigabit LAN

Yes
Wi-Fi standard

802.11a/b/g/n/ac
USB 3.0 (number)

4
Analog audio input/output (number)

3
HDMI (number)

1
VGA (number)

1
RAM type

DDR4
Chipset

AMD B550
Number of memory slots

4
DisplayPort (number)

1
Motherboard format

MATX
PCI Express X1 (number)

2
PCI Express X16 (number)

1
RAID controller

Yes
Processor socket

AM4
M.2 port (for expansion cards)

No
SATA III (number)

4
M.2 port (number)

2
