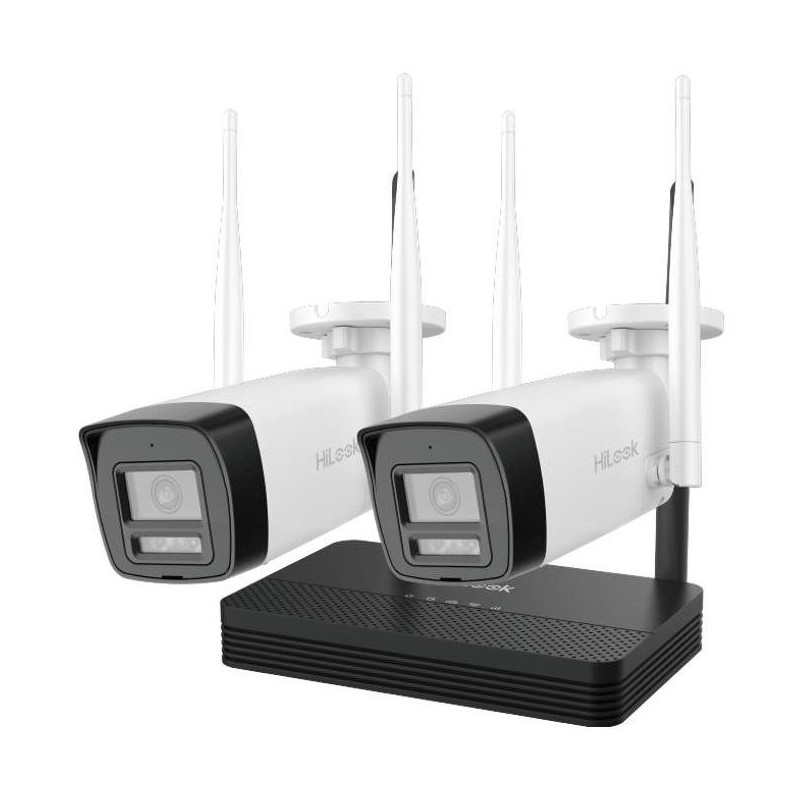

HiLook Powered by HIKVISION/ WiFi Bullet KIT IKS-2044BH-PH/W/ 4Mpx/ 2x cameras IPC-B140HA-LDF/W/ 1x NVR-DS-7104NI-S1/W

Description

HiLook IKS-2044BH-PH/W

A set of recording equipment and two 4 Mpx cameras.

NVR NVR-DS-7104NI-S1/W

Recording device for 4 IP cameras . Combinations of different resolutions up to 6 Mpx and data flow up to 20 Mb/s are allowed. Support for live view, saving and playback of the connected camera. There is a micro SD slot with a capacity of up to 512 GB . Connection can be easily made using the RJ-45 port or wirelessly using Wi-Fi .

2× IPC-B140HA-LDF/W camera

The 4-megapixel bullet IP camera offers a 1/2.7″ CMOS sensor with a resolution of 2560 × 1440 pixels. It also guarantees high-quality video during night shots thanks to IR illumination up to a distance of 30 m . The connection can be easily made using the RJ-45 port or wirelessly using Wi-Fi . Thanks to the Hik-Connect application , you can monitor what is happening in your home 24 hours a day, 7 days a week from anywhere via your smartphone. In addition, the camera is resistant to adverse weather conditions according to IP66 certification.

BASIC SPECIFICATIONS

NVR

Number of channels: 4

Supported resolutions: 6 Mpx, 5 Mpx, 4 Mpx, 3 Mpx, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF

Ports: Wi-Fi, 1× RJ-45

Memory card slot: yes, microSD (max. 512 GB)

PoE support: no

Dimensions: 163 × 125 × 26 mm

Weight: 500g

Camera

Sensor chip: 1/2.7″ CMOS

Day/Night: yes

Integrated IR illuminator: yes, up to 30 m

Lens: f = 2.8 mm, fixed, angle of view horizontal 94°, vertical 49°, diagonal 114°

Maximum resolution: 2560 × 1440 at 20/25 fps

Interface: Wi-Fi, 1× RJ-45

Memory card slot: no

Power supply: DC 12V
