HiLook Powered by HIKVISION/ Smart Hybrid Light KIT/ 1x NVR-104MH-C/4P(D)/ 4x IPC-B140HA-LU

Description

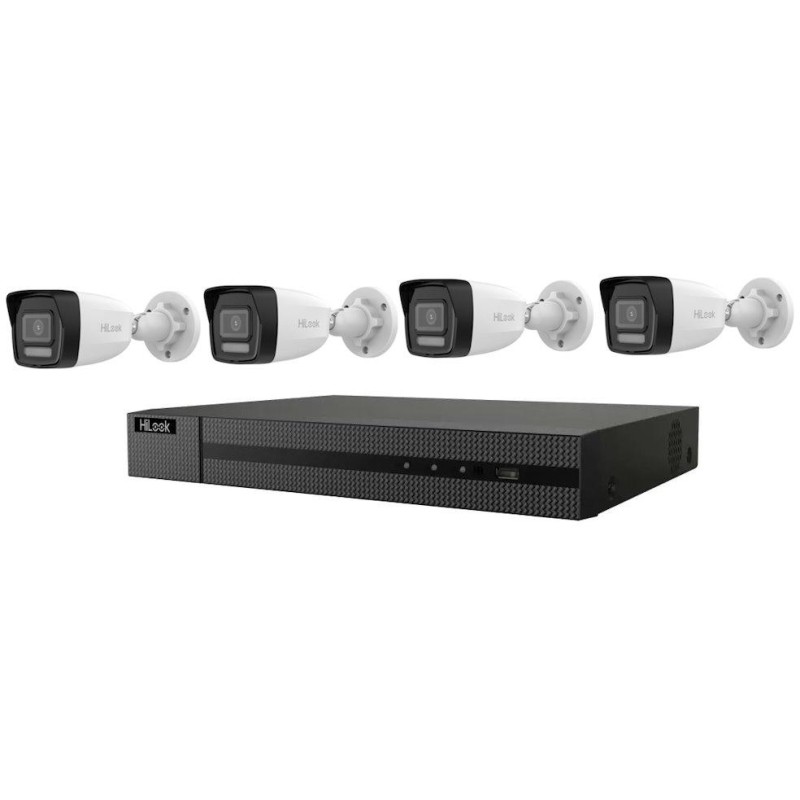

HiLook Smart Hybrid Light KIT

A set of recording equipment and four 4 Mpx cameras.

Recorder NVR-104MH-C/4P(D)

Recording device for 4 IP cameras with PoE power support (max. 50 W, IEEE 802.3af/at). Combinations of different resolutions up to 8 Mpx and data flow up to 80 Mbps are allowed. Support for live view, saving and playback of the connected camera. The device also supports third-party cameras and H.265+ decoding, thanks to which you can save up to 75% of the data volume. There is one slot for a SATA hard drive with a capacity of up to 8 TB .

4× IPC-B140HA-LU camera

The 4-megapixel bullet IP camera offers a 1/3″ CMOS sensor with progressive scan, a resolution of 2560 × 1440 at 20 fps , a sensitivity of 0.005 lux (color, F1.6, AGC) and WDR support (120 dB) . High-quality video is also guaranteed during night shots by the hybrid Smart Hybrid Light (IR + white LED) with a range of up to 30 m . The connection can be easily made using the RJ-45 port . Thanks to the HiLookVision application , you can monitor events 24 hours a day, 7 days a week from anywhere via your smartphone. In addition, the camera is resistant to adverse weather conditions according to IP67 certification.

• High-quality image with 4 Mpx resolution
• White LED and IR illumination with a range of up to 30 m (Smart Hybrid Light technology)
• Motion Detection 2.0 – classic motion detection & target classification (human/person or vehicle)
• Clear image even against strong backlight thanks to WDR technology (120 dB)
• Efficient H.265+ compression technology
• 3D DNR technology ensures clear and sharp images
• Built-in microphone
• Support for detection/recognition of people and vehicles
• Easy installation thanks to Power over Ethernet (PoE technology)
• Water and dust resistance (IP67)
• Metal + plastic design

---

Smart Hybrid Light

Hikvision Smart Hybrid Light technology allows you to flexibly switch between three complementary lighting modes to suit virtually any need or application.

• IR mode – the infrared light is constantly on and the image remains black and white (at night).
• White light mode – the white light is always on and the camera captures color images 24/7.
• Smart Mode – In this mode, when there is no target in the area, the camera only uses IR light. When a vehicle or person appears, the white light is automatically triggered, resulting in vivid colors with clear details.

Motion Detection 2.0

Conventional motion detection can sometimes fail, or on the contrary, be too active and activate false alarms. The HiLook IP camera uses intelligent motion detection Motion Detection 2.0, which, in addition to conventional motion detection, also adds recognition of people and cars from other objects. It can mark these elements in the recorded recording, thanks to which you can find people or vehicles in the recordings easily and quickly. You can prepare alerts for people or car-moto elements.

BASIC SPECIFICATIONS

Number of channels: 4

Supportsupported resolution: 8 Mpx, 6 Mpx, 5 Mpx, 4 Mpx, 3 Mpx, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF

Ports: 1× HDMI, 1× VGA, 4× RJ-45 (PoE 802.3af/at), 1× 10/100 Mbps RJ-45, 1× audio input (RCA), 1× audio output (RCA), 2× USB 2.0

Wireless connection: no

HDD: 1× SATA (max. 8 TB)

PoE support: yes, 802.3 af/at

Dimensions: 265 × 225 × 48 mm

Weight: ≤ 1kg

Camera

Sensor chip: 1/3″ CMOS

Day/Night: yes

Integrated IR illuminator: yes, up to 30 m

Integrated LED light: yes, up to 30 m

Lens: f = 2.8 mm, fixed, angle of view horizontal 98°, vertical 54°, diagonal 114°

Maximum resolution: 2560 × 1440 at 20 fps

Interface: 1× RJ-45

Memory card slot: no

Power supply: DC 12 V (± 25%) or PoE (802.3af) (power supply not included)
