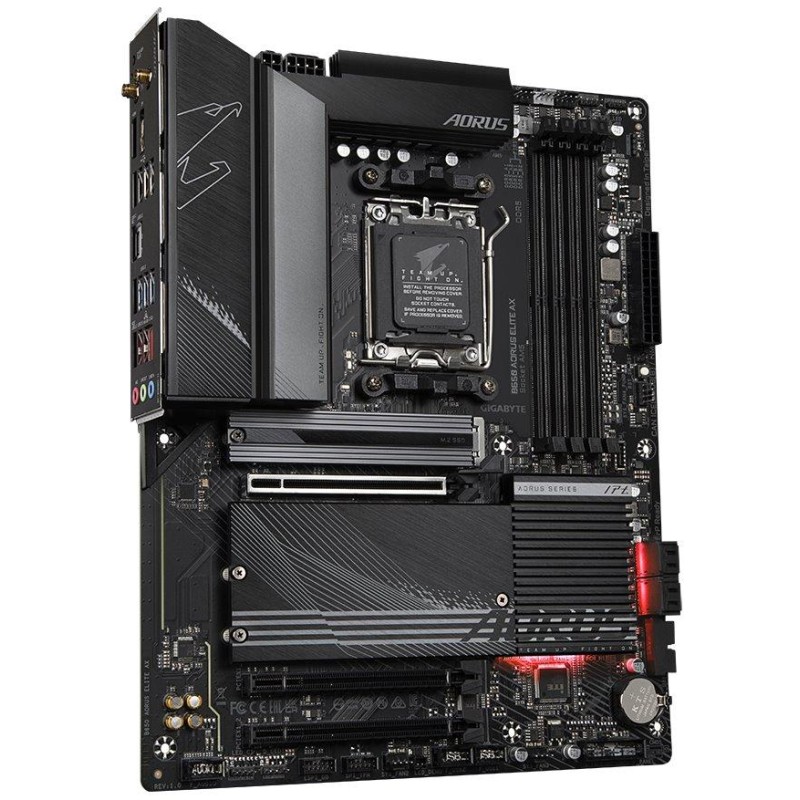

GIGABYTE B650 AORUS ELITE AX

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for AMD Ryzen 7000 series processors (Socket AM5)

Chipset

AMD B650

Memory

4× DDR5 memory slots, support up to 192 GB

Support DDR5 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400MHz

Dual-channel memory architecture

Support non-ECC, unbuffered, 1Rx8/2Rx8/1Rx16

Support for AMD EXtended Profiles for Overclocking (EXPO)

Intel Extreme Memory Profile (XMP) support

Slots

AMD CPU

1× PCIe 4.0 x16 slot

AMD B650 chipset

2× PCIe 3.0 x16 slot (supports x1 mode)

Graphic arts

1× HDMI port, supporting max. resolution 4096 × 2160 at 60 Hz

1× DisplayPort port, supporting max. resolution 3840 × 2160 at 144 Hz

Storage

AMD CPU

1× M.2 slot, M Key, for 2280/25110 type units (PCIe 5.0 x4/x2 mode)

1× M.2 slot, M Key, for 2280/25110 type units (PCIe 4.0 x4/x2 mode)

AMD B650 chipset

1× M.2 slot, M Key, for 2280/25110 type units (PCIe 4.0 x4/x2 mode)

4× SATA 6Gb/s ports

RAID 0, RAID 1 and RAID 10 support for SATA drives

RAID 0, RAID 1 and RAID 10 support for PCIe drives

USB

AMD B650 chipset

1× USB 3.2 Gen2x2 Type C port available via internal USB connector

7× USB 3.2 Gen1 (USB 3.0) ports (5 ports on the back panel, 2 ports available via internal USB connector)

4× USB 2.0 ports available via internal USB connectors

AMD CPU

1× USB 3.2 Gen2 Type-C port on the back panel

2× USB 3.2 Gen2 Type A port on the back panel

4× USB 2.0 ports on the rear panel

Audio

Realtek Audio Codec

2/4/5.1/7.1 channel High Definition Audio

HIND

1× Realtek 2.5Gigabit LAN controller

WLAN/Bluetooth

AMD Wi-Fi 6E RZ616 (MT7922A22M)

Wi-Fi 802.11a/b/g/n/ac/ax

Triple Band (2.4 GHz, 5 GHz, 6 GHz)

Data transfer speed up to 2.4 Gbps

Bluetooth 5.2

Internal connectors

1× 24pin ATX main power connector

1× 8pin ATX 12V power connector

1× 4-pin ATX 12V power connector

1× CPU fan connector

1× CPU water cooling fan connector

3× system fan connector

1× system fan/water cooling pump connector

2× addressable LED strip connector

2× RGB LED strip connector

1× CPU cooler LED strip/RGB LED strip connector

3× M.2 slots, M Key

4× SATA 6Gb/s connector

1× front panel connector

1× front panel audio connector

1× USB 3.2 Gen2x2 type C connector

1× USB 3.2 Gen1 (USB 3.0) connector (supports 2x USB 3.2 Gen1 port)

2x USB 2.0 connector (supports 4x USB 2.0 port)

1× TPM connector (only supports GC-TPM2.0 SPI and GC-TPM2.0 SPI 2.0 modules)

1× Reset button

1× Reset jumper

1× Clear CMOS jumper

Rear panel ports />
1× Q-Flash Plus button

2× Wi-Fi antenna connector

1× DisplayPort

1× HDMI

1× USB 3.2 Gen2 Type-C

2x USB 3.2 Gen2 (USB 3.1 Gen2)

5× USB 3.2 Gen1 (USB 3.0)

4× USB 2.0

1× RJ-45

3× audio jacks

Dimensions

30.5 × 24.4 cm

ATX format
