DELL PowerEdge R960/ 16x NVMe/ 4x Xeon 6416H/ 512GB/ 2x 1.6TB NVMe/ 4x 1100W/ iDRAC Ent./ 4U/ 3Y PS NBD on-site

DELL PowerEdge R960/ 16x NVMe/ 4x Xeon 6416H/ 512GB/ 2x 1.6TB NVMe/ 4x 1100W/ iDRAC Ent./ 4U/ 3Y PS NBD on-site

80 562,57 €

SKU: NV-Servers-ServersDELL-POWEREDGE-R960--38069 Category: Tag:

Description

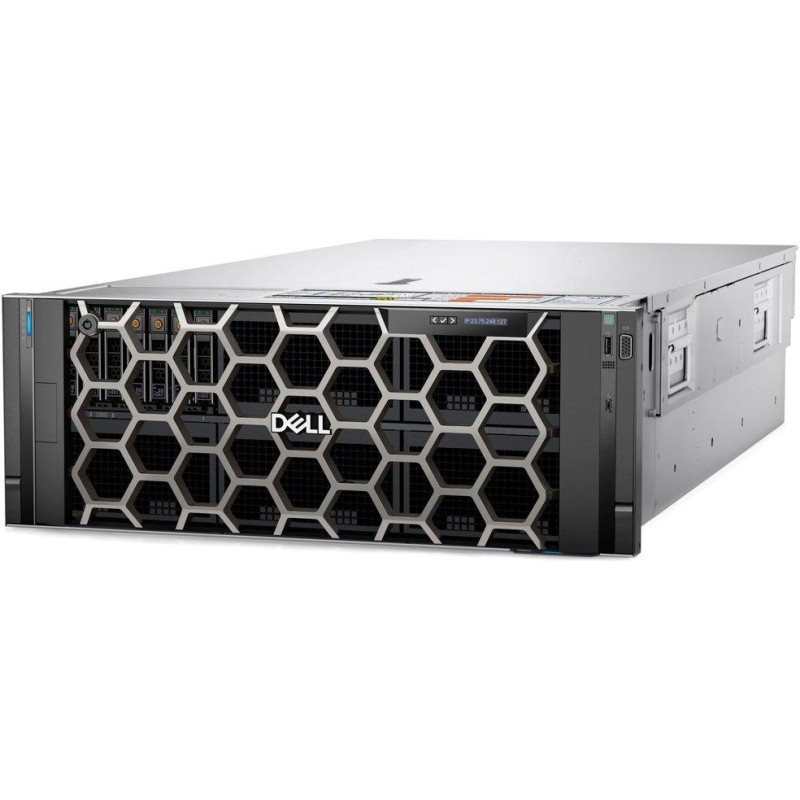

Dell PowerEdge R960

Powerful 4U rack server with four Intel Xeon processors for maximum computing power and scalability in an enterprise environment.

The DELL PowerEdge R960 is a high-end enterprise server designed for the most demanding computing tasks and mission-critical applications. Equipped with four Intel Xeon Gold 6416H processors with a total of 72 cores and 144 threads, it provides extreme computing power for database systems, virtualization and artificial intelligence applications.

The server is equipped with a generous 512GB DDR5 memory with high throughput of 5600 MT/s and fast storage in the form of two 1.6TB NVMe SSDs with EDSFF E3.S format. The chassis supports up to 16 NVMe Gen5 drives for future capacity and performance expansion. System reliability is ensured by four redundant 1100W power supplies with Titanium certification for maximum energy efficiency.

  • 4× 18-core Intel Xeon Gold 6416H processor (2.2 GHz, up to 72 cores/144 threads)
  • Massive 512GB DDR5 memory with high throughput of 5600 MT/s
  • Support for up to 16 NVMe Gen5 drives in EDSFF E3.S format
  • Dual network connectivity 10/25GbE SFP28 and 1GbE
  • iDRAC9 Enterprise with 16GB memory for advanced remote management
  • Trusted Platform Module 2.0 V3 for increased security
  • Fully redundant Titanium certified power supplies
  • 12 PCIe Gen5 slots for maximum expandability
  • 4U design with LCD display and cable management system

Maximum performance for your business

The PowerEdge R960 maximizes transformation and data-driven initiatives with extreme scale capabilities that deliver superior workload density and performance. With support for up to four 4th Generation Intel Xeon Scalable processors with up to 60 cores per processor, it offers unmatched compute capacity.

Advanced management options

The integrated iDRAC9 Enterprise controller with 16GB of memory provides comprehensive remote server management capabilities including monitoring, diagnostics, and firmware updates. It supports the latest standards including RESTful API with Redfish, enabling easy integration into existing IT infrastructure management systems.

Flexible storage system

The chassis supports up to 16 EDSFF E3.S Gen5 NVMe drives and offers outstanding performance and storage capacity. This modern storage architecture delivers extreme data throughput and low latency, making it ideal for database applications, big data analytics, and artificial intelligence.

BASIC SPECIFICATIONS

Processor: 4× Intel Xeon Gold 6416H (2.2 GHz, 18 cores/36 threads, 45 MB cache, TDP 165W)

Chipset: Intel C741

RAM: 512 GB (16× 32 GB RDIMM, 5600 MT/s, dual rank)

Storage: 2× 1.6 TB Data Center NVMe Mixed Use AG Drive E3.S Gen5

Chassis: EDSFF E3.S with support for up to 16 NVMe Gen5 drives, 4U rack

Network card: Broadcom 57414 Dual Port 10/25GbE SFP28 (OCP 3.0), Broadcom 5720 Dual Port 1GbE

Management: iDRAC9 Enterprise with 16GB memory

Slots: 12× PCIe Gen5 (6× full height, 2× low profile, 4× full length)

Power supply: 4× hot-plug 1100 W, redundant (2+2), Titanium (100-240 V)

Security: Trusted Platform Module 2.0 V3, Secure Boot, Silicon Root of Trust

Dimensions: 174.3 x 482 x 883.19 mm

Weight: 60.2 kg

<!– JSON
{
“manufacturer”: “DELL”,
“model”: “PowerEdge R960”,
“form_factor”: “4U rack server”,
“processors”: “4× Intel Xeon Gold 6416H”,
“processor_details”: “2.2 GHz, 18 cores/36 threads, 45MB Cache, 165W”,
“total_cores”: 72,
“total_threads”: 144,
“memory”: “512GB DDR5”,
“memory_speed”: “5600 MT/s”,
“memory_configuration”: “16× 32GB RDIMM, Dual Rank”,
“storage”: “2× 1.6TB NVMe Mixed Use AG Drive E3.S Gen5”,
“storage_bays”: “up to 16 EDSFF E3.S NVMe Gen5 drives”,
“networking”: “Broadcom 57414 Dual Port 10/25GbE SFP28, Broadcom 5720 Dual Port 1GbE”,
“power_supply”: “4× 1100W Titanium redundant (2+2)”,
“management”: “iDRAC9 Enterprise 16G”,
“security”: “Trusted Platform Module 2.0 V3”,
“pcie_slots”: 12,
“pcie_generation”: “Gen5”,
“dimensions”: “174.3 × 482 × 883.19 mm”,
“weight”: “max 60.2 kg”,
“warranty”: “3Y ProSupport NBD on-site”
}
–>

Additional information

Brand

DELL
Model

DELL
Material

Metal, plastic
Color

Black – silver
Warranty period for registration number (months)

36
Manufacturer

DELL
Warranty length (months)

36
Processed

Approved
Wi-Fi

No
RJ-45 (number)

2
Weight (kg)

60.2
Dimensions

883.19 x 482 x 174.3mm
Memory card reader

No
Project price

Yes
Dropshipment - Alza

Yes
HIND

Yes
Bluetooth

No
Max. power source (W)

1100
Micro USB (number)

1
HDD capacity (GB)

1600
Operating system

No
Number of processor cores

18
RAM capacity (GB)

512
Installed operating system

Without operating system
Processor model

6416H
Processor type

Intel® Xeon®
Processor frequency (GHz)

2.2
VGA (number)

1
SSD technology

Yes
TDP (W)

165
Memory frequency (MHz)

5600
Max processor frequency (GHz)

4.2
Set of memories

16× 32GB
RAM type

DDR5
Chipset

Intel C741
Security lock slot

No
Number of memory slots

64
Number of free memory slots

48
LAN, specifications

Gigabit
PC case design

19" rack
PCI Express X16 (number)

12
Processor socket

4677
HDD format

2.5"
SFP28 (number)

2
Number of disc slots

16
USB 3.0 rear (number)

1
USB 2.0 front (number)

1
USB 2.0 rear (number)

1
Number of processor sockets

4
HDD II capacity (GB)

1600
Capacity of installed disks (GB)

3200
Rack format

4U
Number of processors

4
