DEEPCOOL case CH690 DIGITAL ATX / 2xUSB 3.0 / USB-C / up to 10x gan / panoramic / white
115,76 €
Description

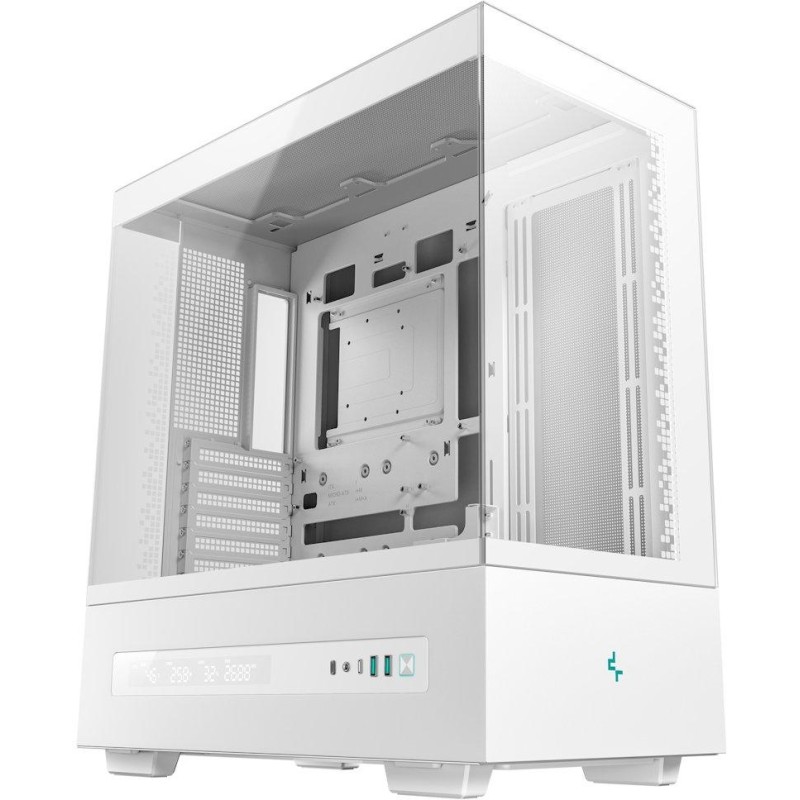

DEEPCOOL CH690 DIGITAL Stylish and spacious Middle Tower case with transparent side and front panel offers one 2.5/3.5″ bay for HDD/SDD disk and two 2.5″ bays for SSD disks. Thanks to the possibility of installing up to ten fans, the case provides more than sufficient cooling options. On the side there are two USB 3.0 ports, one USB-C port and a combined audio port for headphones and microphone. The ingenious solution allows for the convenient placement of a water cooling exchanger up to 420 mm long on the top. The case has enough space for a CPU cooler up to 182 mm high and a graphics card up to 450 mm long. The base of the case contains a digital display that shows the current temperature, power, consumption and fan speed. The display can focus on these values for the processor, graphics card or power supply at any given time. Mesh panels ensure high airflow. The built-in support for the graphics card will also please. The case is delivered without a power supply and a set of removable dust filters is included in the package. BASIC SPECIFICATIONS Case design: Middle Tower Internal bays: 1× 2.5″/3.5″, 2× 2.5″ Motherboard compatibility: Mini-ITX, Micro-ATX, ATX Power supply: without power supply Side panel connectors: 2× USB 3.0, 1× USB-C, 1× headphone and microphone combo port Dimensions: 516 × 485 × 240 mm Weight: 9.8 kg Color: white
Additional information
| Brand | DEEPCOOL |
|---|---|
| Model | DEEPCOOL |
| Material | Plastic, metal, glass |
| Color | White |
| Warranty period for registration number (months) | 24 |
| Manufacturer | DEEPCOOL |
| Warranty length (months) | 24 |
| Processed | Approved |
| Weight (kg) | 9.8 |
| Dimensions | 516 × 485 × 240mm |
| Memory card reader | No |
| Dropshipment - Alza | Yes |
| USB Type C (number) | 1 |
| USB 3.0 (number) | 2 |
| Analog audio input/output (number) | 1 |
| Backlight color | Without backlight |
| PC case design | Middle tower |
| Supported source format | ATX |
| Supported radiator size from the front | Does not support |
| Supported radiator size on top | 420 |
| 2.5" internal bay | 2 |
| Transparent sidewall | Yes |
| Source position | Down |
| Number of fan slots | 10 |
| Max. CPU heatsink height (mm) | 182 |
| Motherboard format | Mini-ITX |
| Source | No |
| Max. graphics card length (mm) | 450 |
| 2.5"/3.5" internal bays | 1 |
| Supported radiator size front/rear | Does not support |
| Supported radiator size top/bottom | 420 |
