ASUS TUF GAMING X670E-PLUS / AMD X670 / AM5 / 4x DDR5 / 4x M.2 / HDMI / DP / USB-C / ATX

Description

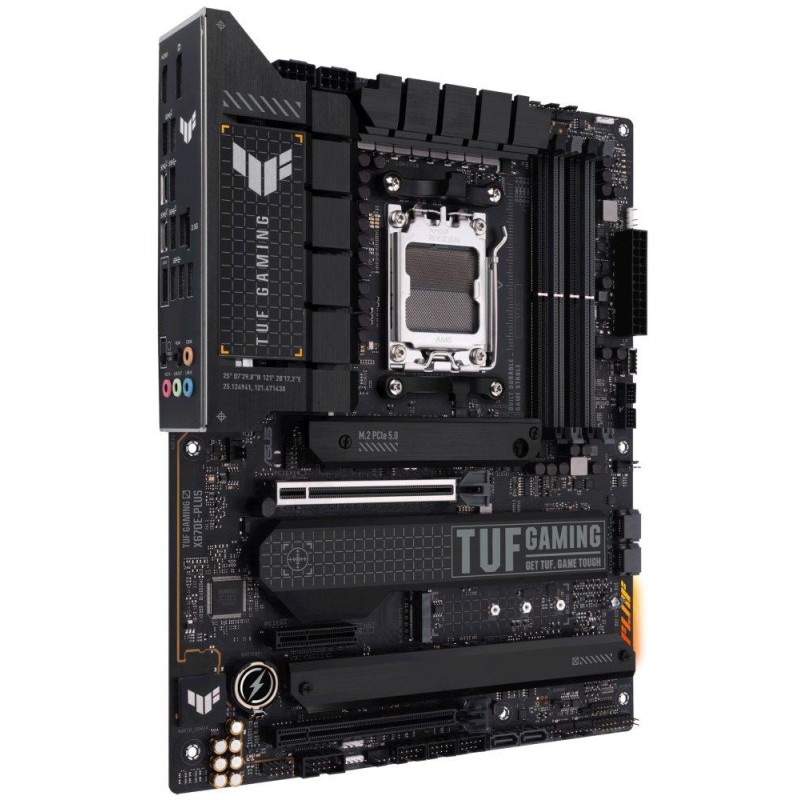

ASUS TUF GAMING X670E-PLUS

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for AMD Ryzen 7000 series processors (Socket AM5)

Chipset

AMD X670

Memory

4x DDR5 memory slots, support up to 192 GB

Support DDR5 6400+ (OC)/ 6200 (OC)/ 6000 (OC)/ 5800 (OC)/ 5600 (OC)/ 5400 (OC)/ 5200/ 5000/ 4800 MHz

Dual-channel memory architecture

ECC and non-ECC support, unbuffered

Support On-Die ECC function

Support for AMD EXtended Profiles for Overclocking (EXPO)

OptiMem II support

Slots

AMD CPU

1x PCIe 5.0 x16 slot

AMD X670 chipset

1x PCIe 4.0 x16 slot (supports x4 mode)

1x PCIe 4.0 x4 slot

Graphic arts

1x HDMI port, supporting max. resolution 4K at 60 Hz

1x DisplayPort port, supporting max. resolution 8K at 60 Hz

Storage

AMD X670 chipset

1x M.2 slot, M Key, for 2242/2260/2280/22110 type units (SATA and PCIe 3.0 x4 mode)

1x M.2 slot, M Key, for units of type 2242/2260/2280 (PCIe 4.0 x4 mode)

4x SATA 6Gb/s

AMD CPU

1x M.2 slot, M Key, for units of type 2242/2260/2280 (PCIe 5.0 x4 mode)

1x M.2 slot, M Key, for units of type 2242/2260/2280 (PCIe 4.0 x4 mode)

AMD RAIDXpert support

RAID 0, RAID 1 and RAID 10 support for SATA drives

RAID 0, RAID 1 and RAID 10 support for PCIe drives

USB

1x USB 3.2 Gen2x2 Type-C port on the back panel

2x USB 3.2 Gen2 Type-C ports (1 port on the back panel, 1 port available via internal USB connector)

3x USB 3.2 Gen2 type A ports on the back panel

7x USB 3.2 Gen1 (USB 3.0) ports (5 ports on the back panel, 2 ports available via internal USB connector)

6x USB 2.0 ports available via internal USB connectors

Audio

Realtek S1220A Codec

7.1 channel High Definition Audio

120 dB SNR playback, 113 dB SNR recording

HIND

1x Realtek 2.5Gigabit LAN controller

TUF LANGuard support

Internal connectors

1x 24-pin ATX main power connector

2x 8-pin 12V power connector

4x SATA 6Gb/s connector

4x M.2 slots, M Key

1x USB 3.2 Gen2 Type-C front panel connector

1x USB 3.2 Gen1 (USB 3.0) connector (supports 2x USB 3.2 Gen1 port)

3x USB 2.0 connector (supports 6x USB 2.0 port)

1x 4-pin CPU fan connector

1x 4-pin optional CPU fan connector

1x 4-pin water cooling pump connector

4x 4-pin chassis fan connector

1x W_PUMP+ connector

3x addressable RGB LED strip connector

1x Aura RGB LED strip connector

1x Clear CMOS jumper

1x serial port connector

1x front panel audio connector

1x system panel connector

1x temperature sensor connector

1x Thunderbolt connector

Rear panel ports

1x USB 3.2 Gen2x2 Type-C

1x USB 3.2 Gen2 Type-C

3x USB 3.2 Gen2 (USB 3.1 Gen2) type A

5x USB 3.2 Gen1 (USB 3.0)

1x DisplayPort

1x HDMI

1x RJ-45

5x audio jack

1x BIOS Flashback button

Dimensions

30.5 x 24.4 cm

ATX format
