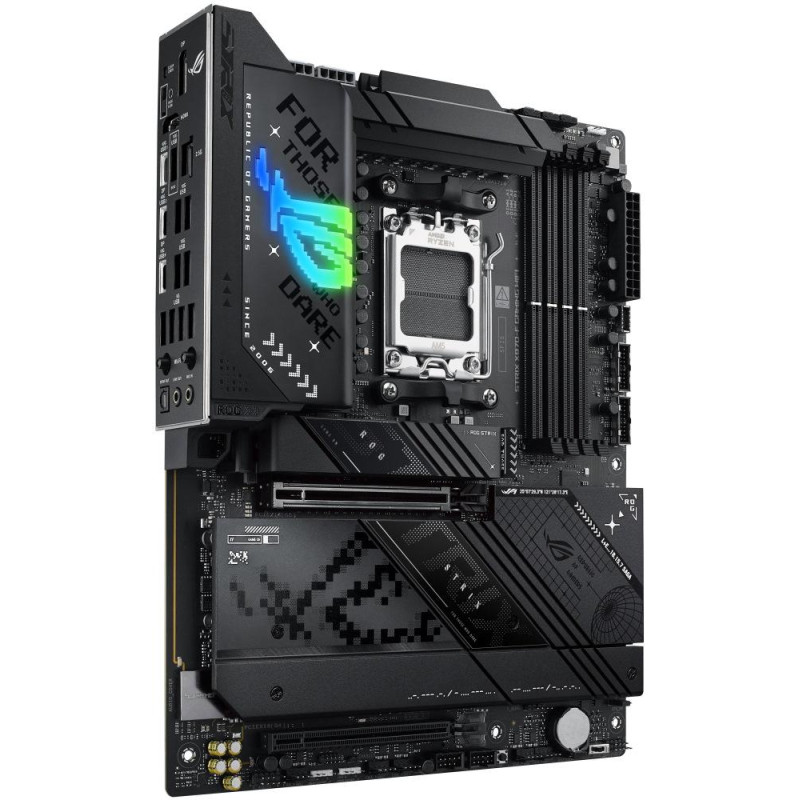

ASUS ROG STRIX X870-F GAMING WIFI / X870 / AM5 / 4x DDR5 / HDMI / M.2 / USB4 / WIFI / ATX

Description

ASUS ROG STRIX X870-F GAMING WIFI

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for AMD Ryzen 7000, 8000 and 9000 series processors (Socket AM5)

Chipset

AMD X870

Memory

4× DDR5 memory slots, support up to 192 GB

DDR5 support up to 8000+MT/s (OC)

Dual-channel memory architecture

ECC and non-ECC support, unbuffered

Support On-Die ECC function

Support for AMD Extended Profiles for Overclocking (EXPO)

ASUS Enhanced Memory Profile (AEMP) support

Slots

AMD Ryzen 9000 and 7000 series

1× PCIe 5.0 x16 slot

AMD Ryzen 8000 series

1× PCIe 4.0 x16 slot (supports x8/x4 mode)

AMD X870 chipset

1× PCIe 4.0 x16 slot (supports x4 mode)

Graphic arts

1× DisplayPort, supporting max. resolution 8K at 30 Hz (according to DP 1.4)

1× HDMI, supporting max. resolution 4K at 60 Hz (according to HDMI 2.1)

2× USB4 (USB-C), supporting max. resolution 4K at 60 Hz (according to DP 1.4a)

Storage

AMD Ryzen 9000 and 7000 series

1× M.2 slot, M Key, for 2242/2260/2280 type units (PCIe 5.0 x4 mode)

1× M.2 slot, M Key, for units of type 2242/2260/2280/22110 (PCIe 5.0 x4 mode)

AMD Ryzen 8000 series

1× M.2 slot, M Key, for 2242/2260/2280 type units (PCIe 4.0 x4/x2 mode)

AMD X870 chipset

2× M.2 slot, M Key, for type 2280 units (PCIe 4.0 x4 mode)

2× SATA 6Gb/s

AMD RAIDXpert2 support

RAID 0, RAID 1, RAID 5, and RAID 10 support for PCIe drives (RAID 5 supported only with 9000 series processors)

RAID 0 and RAID 1 support for SATA drives

Some PCIe, M.2 slots and SATA connectors share data lines and will not work when installed simultaneously. For more information, please visit the manufacturer’s website.

USB

2x USB4 (USB-C) on the back panel

1× USB-C 3.2 Gen2×2 available via internal USB connector

5x USB 3.2 Gen2 (USB 3.1) on the back panel

1× USB-C 3.2 Gen2 (USB-C 3.1) with 30W PD on the back panel

8× USB 3.2 Gen1 (USB 3.0) (4 ports on the back panel, 4 ports available via internal USB connector)

4× USB 2.0 available via internal USB connector

Audio

ROG SupremeFX Codec ALC4080

7.1-channel Surround Sound High Definition Audio

Optical S/PDIF output support

HIND

1× Intel 2.5Gigabit LAN controller

ASUS LANGuard

WLAN/Bluetooth

2×2 Wi-Fi 7 (802.11be)

Triple Band (2.4 GHz, 5 GHz, 6 GHz)

Bluetooth 5.4

Internal connectors

1× 24pin ATX main power connector

2× 8pin +12V power connector

2× SATA 6Gb/s

4× M.2 slots, M Key

1× USB-C 3.2 Gen2×2

2× USB 3.2 Gen1 (USB 3.0) connector (supports 4× USB 3.2 Gen1)

2x USB 2.0 connector (supports 4x USB 2.0)

1× 4pin CPU fan connector

1× 4-pin optional CPU fan connector

1× 4pin water cooling pump connector

5× 4pin chassis fan connector

3× addressable RGB LED strip connector

1× audio jackmiddle panel

1× CPU overvoltage jumper

1× Start button

1× chassis opening detection connector

1× PCIe mode switch

1× 10-1pin system board connector

1× thermal sensor connector

Rear panel ports

2× USB4 (USB-C)

5× USB 3.2 Gen2 (USB 3.1)

1× USB-C 3.2 Gen2 (USB-C 3.1) with 30W PD support

4× USB 3.2 Gen1 (USB 3.0)

1× DisplayPort

1× HDMI

2× Wi-Fi antenna connector

1× RJ-45

2× audio jacks

1× optical S/PDIF output

1× BIOS FlashBack button

1× Clear CMOS button

Dimensions

30.5 × 24.4 cm

ATX format
