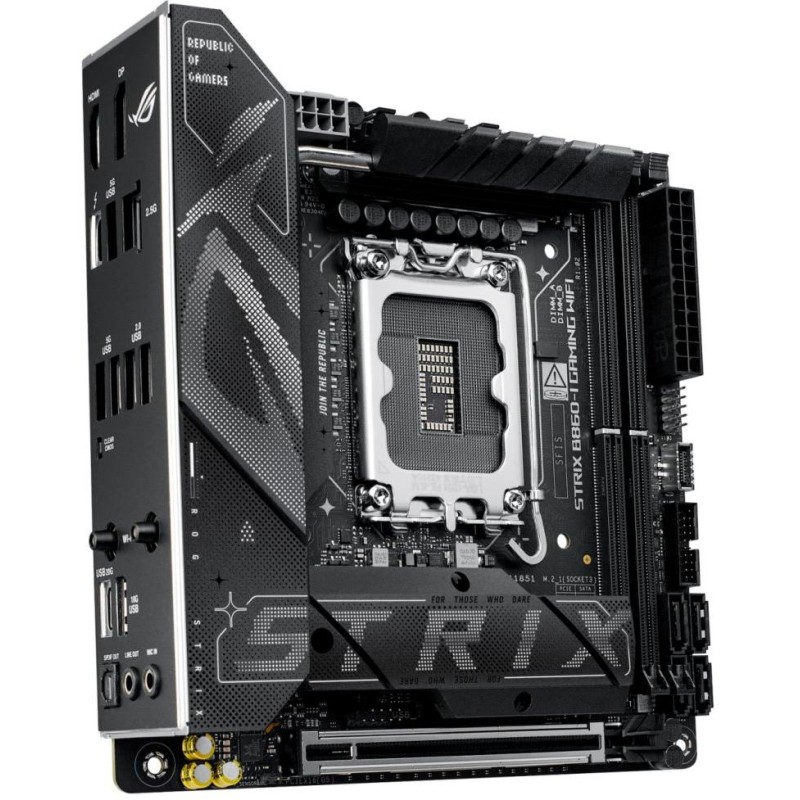

ASUS ROG STRIX B860-I GAMING WIFI / B860 / LGA1851 / DDR5 / DP/ HDMI / Thunderbolt / 2x M.2 / WiFi / Mini-ITX

ASUS ROG STRIX B860-I GAMING WIFI / B860 / LGA1851 / DDR5 / DP/ HDMI / Thunderbolt / 2x M.2 / WiFi / Mini-ITX

285,40 €

SKU: MotherboardsASUS-ROG-STRIX-B860--1851 Category: Tag:

Description

ASUS ROG STRIX B860-I GAMING WIFI

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for Intel Core Ultra 2 series processors

LGA1851 socket

Chipset

Intel B860

Memory

2× DDR5 memory slots, support up to 128 GB

DDR5 support up to 9066+ MT/s (OC)

Dual-channel memory architecture

Support non-ECC, unbuffered memory

Support On-Die ECC function

ASUS Enhanced Memory Profile III (AEMP III) support

Intel Extreme Memory Profile (XMP) support

CUDIMM support

Slots

Intel CPU

1× PCIe 5.0 x16 slot

Graphic arts

1× DisplayPort, supporting max. resolution 4K at 60 Hz (according to DP 1.4)

1× HDMI, supporting max. resolution 4K at 60 Hz (according to HDMI 2.1)

1× Thunderbolt 4 port, supporting max. resolution 8K at 60 Hz (according to DisplayPort 2.1)

Storage

Intel CPU

1× M.2 slot, M Key, for 2260/2280 type units (PCIe 5.0 x4 mode)

Intel B860 chipset

1× M.2 slot, M Key, for 2242/2260/2280 type units (PCIe 4.0 x4 mode)

4× SATA 6Gb/s ports

RAID 0, RAID 1, RAID 5 and RAID 10 support for SATA drives

Intel Rapid Storage technology support

USB

1× Thunderbolt 4 (USB-C) port on the back panel

1× USB-C 3.2 Gen2x2 port on the back panel

1× USB 3.2 Gen2 (USB 3.1) port on the back panel

1× USB-C 3.2 Gen2 (USB 3.1) port available via internal USB connector

5× USB 3.2 Gen1 (USB 3.0) ports (3 ports on the back panel, 2 ports available via internal USB connector)

4× USB 2.0 ports (2 ports on the back panel, 2 ports available via internal USB connector)

Audio

Realtek ALC1220P Codec

7.1-channel Surround Sound High Definition Audio

SupremeFX Shielding technology

Savitech SV3H712 AMP

120 dB SNR playback, 113 dB SNR recording

S/PDIF output support

HIND

1× Intel 2.5Gigabit LAN controller

ASUS LANGuard

WLAN/Bluetooth

2×2 Wi-Fi 7 (802.11be)

Triple Band (2.4 GHz, 5 GHz, 6 GHz)

Transfer speed up to 2.9 Gbps

Bluetooth 5.4

Internal connectors

1× 24pin ATX main power connector

1× 8pin +12V power connector

4× SATA 6Gb/s

2× M.2 slot, M Key

1× USB-C 3.2 Gen2 (USB 3.1)

1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1)

1× USB 2.0 connector (supports 2× USB 2.0)

1× 4pin CPU fan connector

1× 4pin water cooling pump connector

1× 4pin chassis fan connector

2× addressable RGB LED strip connector

1× front panel audio connector

1x system panel connector

1× temperature sensor connector

Rear panel ports

1× HDMI

1× DisplayPort

1× Thunderbolt 4

1× USB-C 3.2 Gen2×2

1× USB 3.2 Gen2 (USB 3.1 Gen2)

3× USB 3.2 Gen1 (USB 3.0)

2× USB 2.0

1× RJ-45

1× optical S/PDIF output

2× Wi-Fi antenna connector

1× fatClear CMOS button

2× audio jacks

Dimensions

17 × 17 cm

Mini ITX format

Additional information

Brand

ASUS
Model

ASUS
Warranty period for registration number (months)

36
Manufacturer

ASUS
Warranty length (months)

36
Processed

Approved
Wi-Fi

Yes
RJ-45 (number)

1
Dimensions

170 × 170 mm
Gigabit LAN

Yes
Wi-Fi standard

802.11be
USB Type C (number)

1
USB 3.0 (number)

3
Analog audio input/output (number)

2
HDMI (number)

1
TDP (W)

125
USB 3.1 (number)

1
RAM type

DDR5
Chipset

Intel B860
Number of memory slots

2
DisplayPort (number)

1
Motherboard format

Mini-ITX
PCI Express X16 (number)

1
RAID controller

Yes
Max RAM size (GB)

128
Processor socket

1851
M.2 port (for expansion cards)

No
SATA III (number)

4
M.2 port (number)

2
Optical audio output (number)

1
SPDIF optical (number)

1
USB 2.0 (number)

2
Thunderbolt 4 (number)

1
